Overview/Features
Downflow, heat-resistant, water-cooled, etc.
Meeting a variety of needs
Enclosure Cooling Unit (refrigerant/special specification)
ENC Series
Questions regarding product selection and specification
InquiryPrice and Delivery schedule inquiries
Price inquiryEasy Selection in 3 Steps!

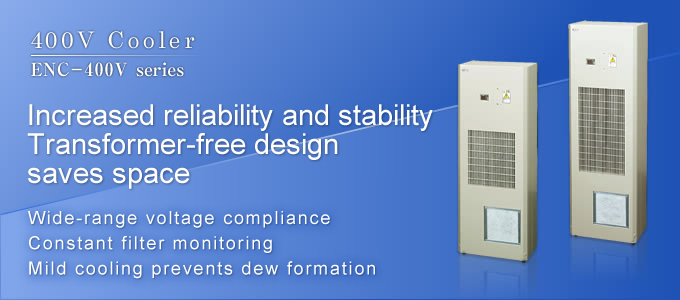

Selection guide400 V type
We offer 400 V specifications
We also offer a cooler with 400 V specifications that can accommodate the control panels of large plant-based and overseas equipment. You can choose to install multiple coolers or select one without having to provide a transformer and so on.
SUS body indoor specifications
The outer plate body is made entirely of stainless steel, environmental resistance has been greatly improved
An all stainless steel body has been adopted for the outer plate so that it can be used safely in very humid factories, e.g. in a workplace where steam is constantly being generated at a food factory. Ferritic stainless steel copper is employed to prevent rust by applying a thin passivation coating on the surface to reproduce a new oxide coating even when the surface is damaged.
Water-cooling type
A water-cooled system that is filter-less, fan-less and maintenance-free has been realized
In harsh manufacturing site, filter clogging easily, and Air-cooling type Enclosure Cooling Unit require significant maintenance. However, water-cooled cooler do not have filter, making them maintenance-free. This reduces maintenance time and eliminates the cost of filter replacement.
Heat-resistant model
First in the industry! Cooling even under an ultra-high temperature environment of a maximum of 70℃
Equipped with a "temperature-controlled automatic expansion valve" that automatically adjusts refrigerant pressure in refrigerant pipes in response to fluctuations in outside temperature, it maintains an optimal freezing cycle even under extremely high temperatures, enabling stable cooling operation without stopping compressor. It can be used with confidence even in locations where it would be difficult to install a standard Enclosure Cooling Unit, such as around furnace panel.
Enclosure cooling unit (Freon/Special specification)
Mounting position
| Model | Cooling capacity (W) |
Rated voltage
(V) |
External dimensions (H×W×D) (mm) |
Weight (kg) |
||
|---|---|---|---|---|---|---|
| ENC-G2240L Side mounting |
400V | 2000／2200 | Three-phase 380 to 415V AC/400 to 460V AC | H1200×W450×D260 | 62 |
Catalog Manual |
| ENC-AR1120L-SUS-2 Side mounting |
SUS body (indoor specification) | 950／1100 | Single-phase 200V AC | H730×W300×D230 | 24 |
Catalog Manual |
| ENC-AR1120EX-SUS-2 Ceiling-mounted |
SUS body (indoor specification) | 950／1100 | Single-phase 200V AC | H318×W600×D353 | 28 |
Catalog Manual |
| ENC-NW1120L Side mounting |
Water-cooling type | 800／1000 | Single-phase 200V AC | H730×W300×D230 | 22 |
Catalog Manual |
| ENC-NW2200L Side mounting |
Water-cooling type | 2000／2200 | Three-phase 200V AC | H1000×W400×D230 | 43 |
Catalog Manual |
| ENC-NW2900L Side mounting |
Water-cooling type | 2600／2900 | Three-phase 200V AC | H1000×W400×D230 | 45 |
Catalog Manual |
| ENC-2800HL Side mounting |
Heat-resistant model | 2500／2800 | Three-phase 200V AC | H1455×W480×D260 | 72 |
Catalog Manual |
