PAU SERIES/Precision Air Conditioning Equipment/Local Air Conditioning Equipment

Special

Clean Booth Simple Air-conditioning Unit

Upgrade clean booths to simple simple thermostatic chambers.

PAU-SU2900L

Extremely thin and compact. Setup is also easy.

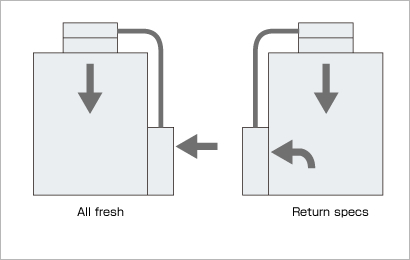

All-fresh and Return can be selected
All-fresh and Return can be selected

Air suction port

Either all-surface or back 2 air suction ports can be selected. Supplied air can be selected from transient or internal circulating types.
Achieving Space Conservation

Super Thin Structure

With a super thin width of 250mm, it is possible to save space.

FFU exchange allows for clealiness level selection

FFU exchange allows for clealiness level selection

FFU Air volume Ventilation frequency Cleanliness level
14m3/M 9m3/M 68 r/ph Class 7000 level
17m3/M 14m3/M 105 r/ph Class 1000 level

*Combine PAU-SU2900L with FFU, attach PAU-BS2020, and evaluate at 50Hz.
*Please note that actual values may differ from those listed above.

FFU can be selected

2 types of FFU can be chosen from, of the same size with differing air volumes. Achieves clean environments at the required level.

Low-noise design

Uses FFU fan

It is possible to achieve low noise by using an FFU fan instead of mounting a fan to the main unit.

■When diverting traditional air conditioning equipment

When using an industrial cooler

When using an industrial cooler

  • Clean air cannot be supplied through a HEPA filter.
  • Its large size requires more space.
  • Piping to the external unit is required.
  • Cooler/heater toggling is required.
  • Large amounts of air volume cause unevenness in temperature.
  • Loud noise is bothersome.

When using a domestic cooler

When using a domestic cooler

  • Clean air cannot be supplied through a HEPA filter.
  • Attachment is a hassle.
  • Piping to the external unit is required.
  • Cooler/heater toggling is required.
  • Not made for precision control.

When using a domestic cooler

When using a domestic cooler

  • Overcooling causes easy condensation.
  • Continued use can cause freezing.
  • Most don't have temperature control.
