PAU SERIES/Precision Air Conditioning Equipment/Local Air Conditioning Equipment

Standard

Can be selected depending on the "Air-cooled/water-cooled" installation environment

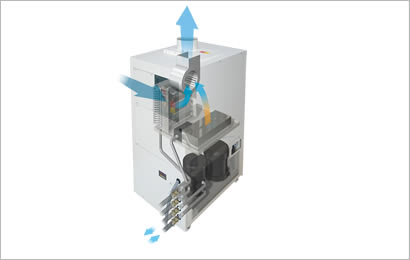

Air-cooled type

Air-cooled type
This method cools via suction (air), and performs heat exchange for refrigeration coils.
The fan motor installed to the heating coil performs discharge.
Since heat exchange coolant water pipes are unnecessary, installation is relatively simple.
(*Humidifier pipes are required for humidifier-loaded models.)
Temperature control type

Temperature control type

Temperature/humidity control type

Temperature/humidity control type

Water-cooled type

Water-cooled type
Refrigeration cycle heat exchange is performed by coolant water with this system.
Heat exchange rate is high compared to the external air coolant, and it's also stable, allowing for compatibility with low air volume (1m3/min) to up to larger air volumes (120m3/min).
Since there is no fan motor heat discharge, there is no need to worry about the creation of dust.
Perfect for environments which require extra high levels of cleanliness.
Temperature control type

Temperature control type

Temperature/humidity control type

Temperature/humidity control type

Various methods of ventilation/installation are possible

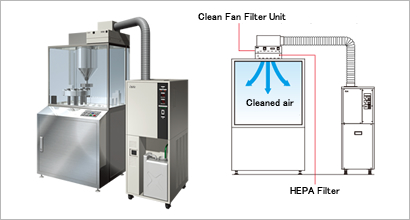

PAU unit + clean fan unit
PAU unit + clean fan unit

Creating a perfect clean environment

By passing precision air created by the PAU unit through a HEPA filter, supply of highly clean air is made possible. Clean fan units can be selected according to target space area and cleanliness level, so temperature/humidity control plus a clean environment can be realized.

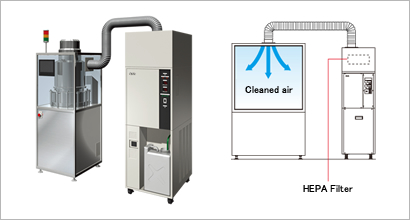

PAU unit/HEPA all-in-one
PAU unit/HEPA all-in-one

Saves space and cleans precision air

A HEPA filter is loaded to the PAU unit. Precision air is cleaned inside the unit. Even when there is no space to install a clean fan unit in the target space/chassis, it can be connected to the PAU unit with only the installation space for a special duct connection flange.

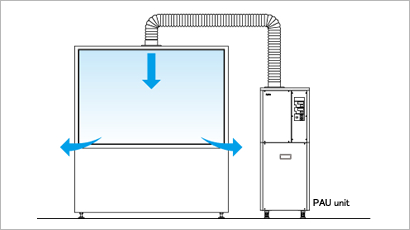

All fresh
All fresh
Effective even when there are lots of nooks and crannies in the target space or when powder/organic solvents occur internally.

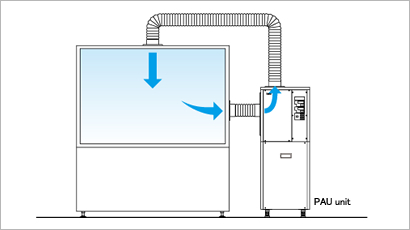

Internal circulation
Internal circulation
It sucks in air from the target space and circulates it, returning it again. We also have parts for circulation as well.
