Control panel cooling unit ENC-A3500EX
Control Panel Cooling unit
Freon-gas Special specifications
Top-mounting
ENC-A3500EX
ENC Series
Depending on model and quantity, separate charter delivery may be arranged (additional costs apply).
- Freon-gas
- Special specifications
| Cooling capacity(W) | 3200/3500 |
|---|---|
| Rated Voltage(V) | Single-phase 200V AC |
| Mounting type | Top-mounting |
| External dimensions(mm) | H500×W1000×D550 |
| Weight(kg) | 76 |
Product Details for ENC-A3500EX
Specifications
(50／60Hz)
| Mounting type | Top-mounting |
|---|---|
| Cooling capacity(W) | 3200/3500 |
| Setting temperature range(℃) | 25 to 45 |
| Ambient Temperature(℃) | 25 to 55 |
| Ambient Humidity(%RH) | 10～80 (No condensation) |
| Dimensions(mm) | H500×W1000×D550 |
| Weight(kg) | 76 |
| Coating Color | Munsell 5Y 7/1 Equivalent color of light beige |
| Rated voltage(V) | Single-phase 200V AC |
| Current consumption : Rating(A) | 7.8/8.0 |
| Current consumption : Max(A) | 9.5/9.8 |
| Starting Current(A) | 33/30 |
| Power consumption : Rating(W) | 1350/1600 |
| Power consumption : Max(W) | 1750/2000 |
| Noise Resistance | LEVEL4 by Fast Transient / Burst Immunity Test |
| Vibration resistance | 5Hz frequency 20mm total amplitude |
| Dustproof and splashproof protection grade | Equivalent to IP54 (internal circulation route) |
| Refrigerant / Amount(g) | R134a 740g |
| Noise (dB (A)) | Approx. 73/76 |
| External output | Cooling operation output/Alarm output (No-voltage/normal open: resistive load 250V 2A) |
| Display | Internal temperature/Error display LED/RUN LED |
Note）
Cooling capacity : Rated capacity value when external temperature is 35°C, internal temperature is 35°C. (measurement conditions: JIS-C-9612 air enthalpy method)）
Use area temperature / humidity : Use area temperature / humidity is not meant to satisfy all conditions in temperature and humidity.
Rating Value : use area temperature 35°C , use area humidity RH 40%.
MAX value: Value at the maximum ambient temperature allowed and an operating ambient humidity of 40%RH.
Use the product keeping the use power supply and voltage; within ±10% of rated power supply and rated voltage.
Reading an instruction manual well certainly before use and please use it right.

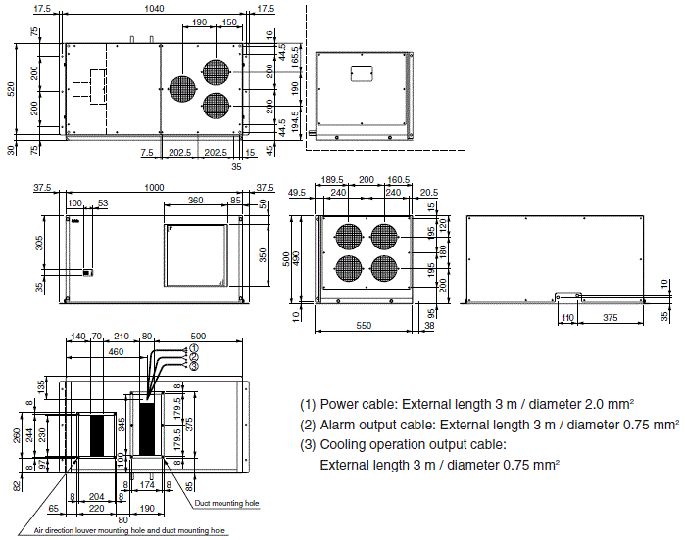

External dimensions

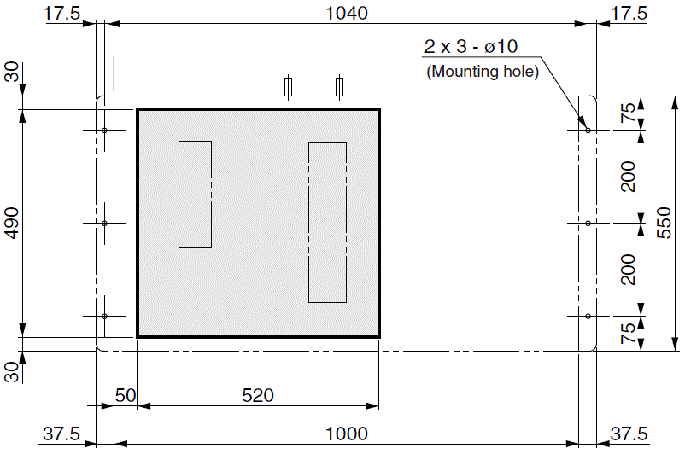

Diagram of Panel Cutout

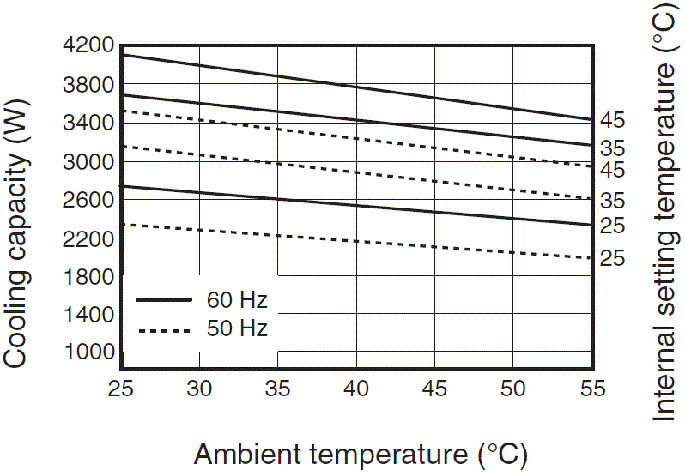

Capacity characteristic chart
*Contact our sales representative if you are using the control panel cooler in an environment close to the permissible ambient temperature upper limit.
[Caution]
To ensure proper operation of this equipment, read the operation manual before use.
Product is delivered by truck. (To a designated location in Japan *Island destinations excluded)
Depending on model and quantity, separate charter delivery may be arranged (additional costs apply).
When delivering overseas, special packing for overseas shipment is recommended.
After checking the specifications of the FA cooler, be sure to use the appropriate breaker (sold commercially) between the FA cooler and the power supply.
Using beyond the rated power supply range may cause malfunction.
Perform periodic maintenance.
Neglecting periodic maintenance can degrade unit performance and cause mechanical problems.
During winter, turn off the FA cooler when the temperature outside is low.
When disposing of this unit, do so properly in accordance with laws and regulation.
