Mist Collector

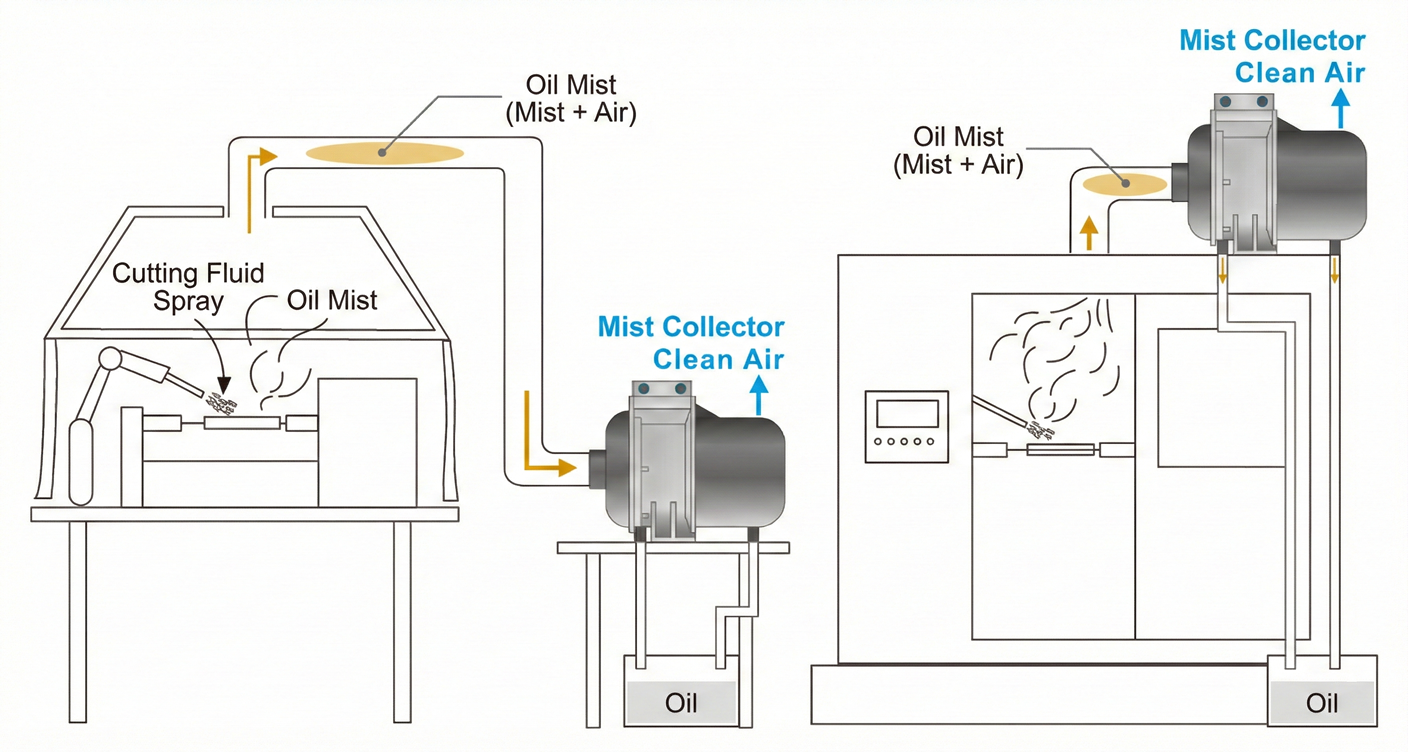

A mist collector is a device that sucks oil mist, which is classified as particulate matter among harmful substances generated in factories, and separates it from the air.
The future is a completely new mist collector achieved through the pursuit of high maintainability, high collection performance, and high energy saving. The GME Series has arrived to meet all of your needs.

Those who wish to select a model online

Mist collector model selection guide

By entering detailed information for model selection, it will be automatically calculated and selected the model that matches the site.

Those who are considering product introduction

Click here to contact us

Please feel free to contact us for inquiries such as on-site confirmation of product introduction, product details and prices.

High-Performance Mist Collector

High-Performance Mist CollectorGME-S-Pro series

Multi-step collection and positive pressure drain allow for extended periods without the need for maintenance.
The industry's first body that can be taken apart allows you to freely overhaul the mist collector.
This is a professional eco model that is also capable of air flow control by a PM motor* and inverter.
* The 400W model is equipped with an induction motor.

High-performance mist collector GME-S-Pro series model list

* Measured according to the gravimetric method
Model Installed
motor output
(kW)
Maximum
airflow
(m3/min)
Collecting efficiency
(%)
External dimensions(H×W×D)
(mm)
Weight
(kg)

GME-S400-Pro 0.4 kW 2P (fully enclosed fan-less type) 7.7 99.7 H444×W368×D530 Approx. 25 Product details
GME-S750-Pro 0.75 kW 4P (fully enclosed fan-less type) 12.6 99.7 H484×W408×D539 Approx. 26 Product details
GME-S1500-Pro 1.5 kW 4P (fully enclosed fan-less type) 18.4 99.7 H544×W468×D574 Approx. 33 Product details
High-Performance Mist Collector

High-Performance Mist CollectorGME-S-eco series

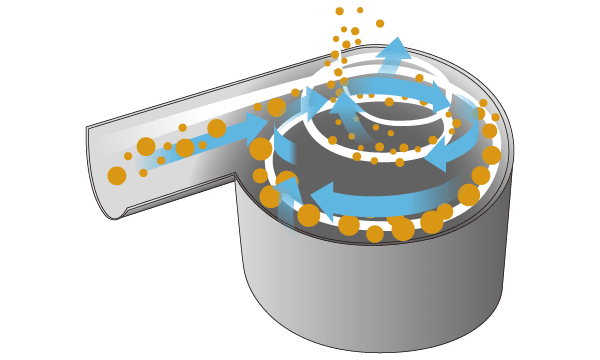

This is a simple eco model designed to achieve high energy savings with the industry's
best-in-class high air flow active cyclone and air flow control by an inverter.

High-performance mist collector GME-S-eco series model list

* Measured according to the gravimetric method
Model Installed
motor output
(kW)
Maximum
airflow
(m3/min)
Collecting efficiency
(%)
External dimensions(H×W×D)
(mm)
Weight
(kg)

GME-S400-eco 0.4 kW 2P (fully enclosed fan-less type) 11.5 99.0 H444×W368×D530 Approx. 23 Product details
GME-S750-eco 0.75 kW 4P (fully enclosed fan-less type) 15.8 99.0 H484×W408×D539 Approx. 24 Product details
GME-S1500-eco 1.5 kW 4P (fully enclosed fan-less type) 23.0 99.0 H544×W468×D574 Approx. 31 Product details
1-way Flow Mist Collectors

1-way Flow Mist CollectorsGME-S series

GME-S Series high-performance mist collectors deliver air in a horizontal direction to a positive pressure drain mechanism equipped with a drain discharge port. The system ejects trapped mist out of the drain discharge port more efficiently than negative pressure drain mist collectors.

1-way flow mist collector model list

* Particle ratio by particle counter (5µm or more)
Model Installed
motor output
(kW)
Maximum
airflow
(m3/min)
Collecting efficiency
(%)
External dimensions(H×W×D)
(mm)
Weight
(kg)

GME-S400 0.4kW 2P(totally-enclosed fan-cooled type) 5.6/6.6 99.7 H407×W333×D547 33 Product details
GME-S750 0.75kW (totally-enclosed fan-cooled type) 11 99.7 H447×W374×D551 37 Product details
GME-S1500 1.5kW (totally-enclosed fan-cooled type) 17 99.7 H507×W434×D674 48 Product details
High-performance filter mist collector

High-performance filter mist collectorGME-F series

The high performance filter type GME-F2200 is a mist collector equipped with a newly developed smoke catch filter and has a large air flow 7 times larger than past models*
It can be used in a variety of sites where a single mist collector requires a large air flow, such as open-type machining equipment, multi-branched piping system, and crowded spaces with no space around equipment.
*Comparison with GME-S400

  • The motor is complied with IE3 which meets the standards in Japan.
  • Please be sure to check in advance whether the product can be imported in each country.

High-performance filter mist collector model list

* Particle ratio by particle counter (2µm)
Model Installed
motor output
(kW)
Maximum
airflow
(m3/min)
Collecting efficiency
(%)
External dimensions(H×W×D)
(mm)
Weight
(kg)

GME-F2200-50 2.2kW 2P (Fully closed Outer door type) 46 99.9 H2165×W712×D610 Approx. 190 Product details
GME-F2200-60 2.2kW 2P (Fully closed Outer door type) 43 99.9 H2165×W712×D610 Approx. 190 Product details
