Control panel cooling unit ENC-G1651L
Control Panel Cooling unit
Freon-gas Standard
Side-mounting
ENC-G1651L
ENC Series
Powerful cooling that demonstrates its capabilities in a variety of inverters and power boards.
- Freon-gas
- Standard
| Cooling capacity(W) | 1450/1650 |
|---|---|
| Rated Voltage(V) | Single-phase 100V AC |
| Mounting type | Side-mounting |
| External dimensions(mm) | H1000×W400×D230 |
| Weight(kg) | 38 |
Product Details for ENC-G1651L
Specifications
(50／60Hz)
| Mounting type | Side-mounting |
|---|---|
| Cooling capacity(W) | 1450/1650 |
| Setting temperature range(℃) | 25 to 45 |
| Ambient Temperature(℃) | 20 to 50 |
| Ambient Humidity(%RH) | 10～85 (No condensation) |
| Dimensions(mm) | H1000×W400×D230 |
| Weight(kg) | 38 |
| Coating Color | Munsell 5Y 7/1 Equivalent color of light beige |
| Rated voltage(V) | Single-phase 100V AC |
| Current consumption : Rating(A) | 7.6/7.4 |
| Current consumption : Max(A) | 9.0/9.9 |
| Starting Current(A) | 22.3/20.5 |
| Power consumption : Rating(W) | 580/650 |
| Power consumption : Max(W) | 740/870 |
| Noise Resistance | LEVEL4 by Fast Transient / Burst Immunity Test |
| Vibration resistance | Equivalent to JIS Z 0200 Level1 |
| Dustproof and splashproof protection grade | Equivalent to IP54 (internal circulation route) |
| Certification | |
| Refrigerant / Amount(g) | R407C 400g |
| Noise (dB (A)) | Approx. 68/72 |
| External output | Alarm output (No-voltage/normal open: resistive load 250V 2A) |
| Display | Internal temperature/Error display LED/RUN LED |
Note）
Cooling capacity : Rated capacity value when external temperature is 35°C, internal setting temperature is 35°C. (measurement conditions:JIS-C-9612 air enthalpy method)）
Use area temperature / humidity : Use area temperature / humidity is not meant to satisfy all conditions in temperature and humidity.
Rating Value : 35°C ambient temperature, ambient humidity RH 40%.
MAX value: use area temperature at the maximum use area temperature allowed, use area humidity of 40%RH.
Allowable ambient temperature: When used continuously at a low ambient temperature (15 to 20 °C or less), be sure to turn off the power supply as there is a possibility the compressor may operate at a high load.
Use the product keeping the use power supply and voltage; within ±10% of rated power supply and rated voltage.
Reading an instruction manual well certainly before use and please use it right.

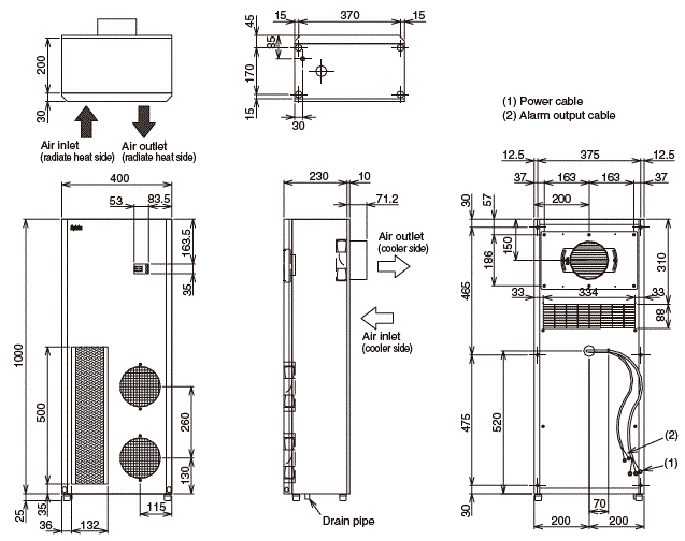

External dimensions

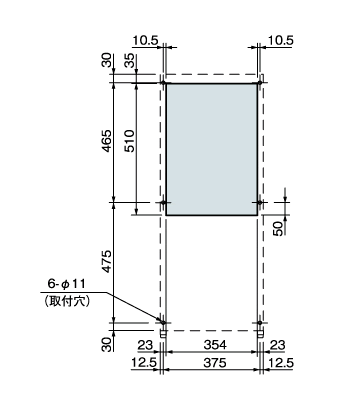

Diagram of Panel Cutout

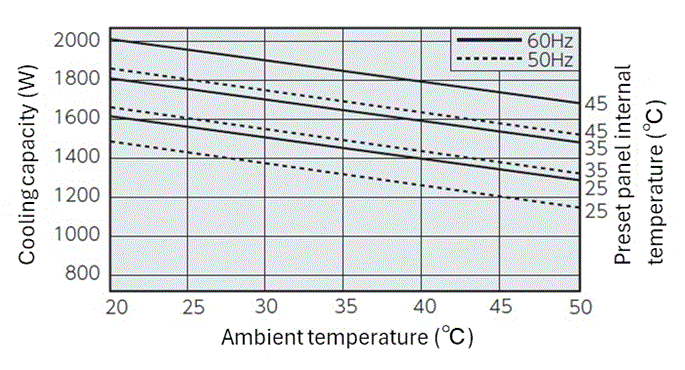

Capacity characteristic chart
*Contact our sales representative if you are using the control panel cooler in an environment close to the permissible ambient temperature upper limit.
[Caution]
To ensure proper operation of this equipment, read the operation manual before use.
Product is delivered by truck. (To a designated location in Japan *Island destinations excluded)
Depending on model and quantity, separate charter delivery may be arranged (additional costs apply).
When delivering overseas, special packing for overseas shipment is recommended.
After checking the specifications of the FA cooler, be sure to insert an appropriate breaker (circuit breaker for wiring) between the FA cooler and the power supply.
Using beyond the rated power supply range may cause malfunction.
Perform periodic maintenance.
Neglecting periodic maintenance can degrade unit performance and cause mechanical problems.
Do not allow the FA cooler to operate continuously in winter when the outdoor temperature is low.
When disposing of this unit, do so properly in accordance with laws and regulation.
