Control panel cooling unit ENC-G1310EXE
Control Panel Cooling unit
Freon-gas Non-Drain
Top-mounting
ENC-G1310EXE
ENC Series
Functions of the 1000 W non-drain type have been demonstrated in all sorts of production sites.
- Freon-gas
- Non-Drain
| Cooling capacity(W) | 1150/1300 |
|---|---|
| Rated Voltage(V) | Single-phase 100V AC |
| Mounting type | Top-mounting |
| External dimensions(mm) | H448×W710×D370 |
| Weight(kg) | 44 |
Product Details for ENC-G1310EXE
Specifications
(50／60Hz)
| Mounting type | Top-mounting |
|---|---|
| Cooling capacity(W) | 1150/1300 |
| Setting temperature range(℃) | 25 to 45 |
| Ambient Temperature(℃) | 20 to 50 |
| Ambient Humidity(%RH) | 10～85 (No condensation) |
| Dimensions(mm) | H448×W710×D370 |
| Weight(kg) | 44 |
| Coating Color | Munsell 5Y 7/1 Equivalent color of light beige |
| Rated voltage(V) | Single-phase 100V AC |
| Current consumption: Rated value(A) | 7.2/7.0 |
| Current consumption: Max(A) | 8.7/9.5 |
| Starting Current(A) | 22.3/20.5 |
| Power consumption: Rated value(W) | 590/680 |
| Power consumption: Max(W) | 770/900 |
| Noise Resistance | LEVEL4 by Fast Transient / Burst Immunity Test |
| Vibration resistance | Equivalent to JIS Z 0200 Level1 |
| Dustproof and splashproof protection grade | Equivalent to IP54 (internal circulation route) |
| Refrigerant / Amount(g) | R407C 385g |
| Noise (dB (A)) | Approx. 65/68 |
| External output | Alarm output (No-voltage/normal open: resistive load 250V 2A) |
| Display | Internal temperature/Error display LED/RUN LED |
Note）
Cooling capacity : Rated capacity value when external temperature is 35°C, internal setting temperature is 35°C. (measurement conditions:JIS-C-9612 air enthalpy method)）
Use area temperature / humidity : Use area temperature / humidity is not meant to satisfy all conditions in temperature and humidity.
This model can be provided with rust-proof coating specifications (optional).
For more information, please contact our sales representative.
Rating Value : 35°C ambient temperature, ambient humidity RH 40%.
MAX value: use area temperature at the maximum use area temperature allowed, use area humidity of 40%RH.
Allowable ambient temperature: When used continuously at a low ambient temperature (15 to 20 °C or less), be sure to turn off the power supply as there is a possibility the compressor may operate at a high load.
Non-draining function operating range: At an ambient temperature/panel internal temperature of 35 °C or less and an ambient humidity/panel internal humidity of 85% or less.
Use the product keeping the use power supply and voltage; within ±10% of rated power supply and rated voltage.
Reading an instruction manual well certainly before use and please use it right.

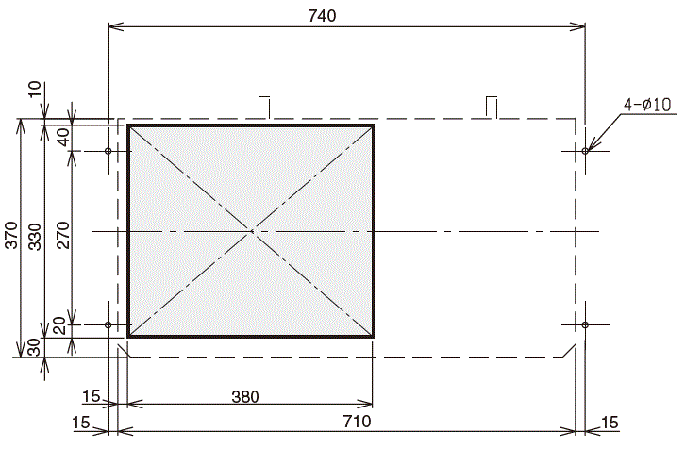

Diagram of Panel Cutout
Diagram of Panel Cutout

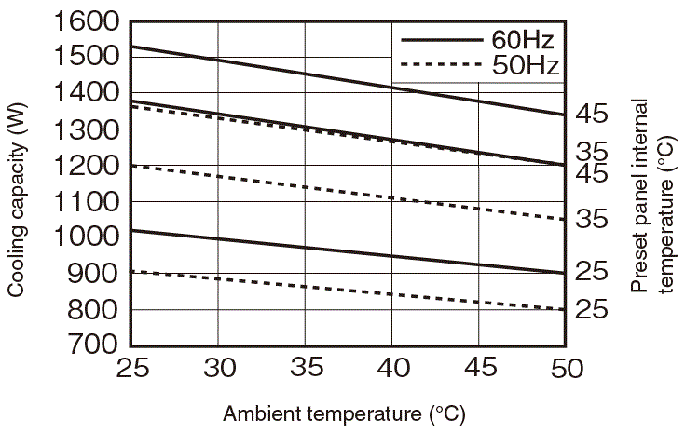

Capacity characteristic chart
*Contact our sales representative if you are using the control panel cooler in an environment close to the permissible ambient temperature upper limit.
[Caution]
To ensure proper operation of this equipment, read the operation manual before use.
Depending on model and quantity, separate charter delivery may be arranged (additional costs apply).
Overseas at the time of delivery, we recommend packing for overseas separately.
Please check through the cooler between the FA and the power (circuit breakers) to the appropriate specification of the FA breaker cooler.
Cause of failure and be used at the rated power supply out of range.
Please use the service and maintenance on a regular basis.
Failure to maintain regular maintenance, you may be a factor in product performance degradation trouble.
When the outside temperature is low in winter, please do not let the FA cooler continuous operation.
When disposing of this product, you should comply with various laws and regulations, please go to the appropriate.
[Notes on drain processing]
When using under temperature and humidity conditions outside the specified range of the non-drain function, or when the special water absorbing filter is clogged or degraded, or the outside air suction filter is clogged, or the heat dissipation fan is degraded, drain water will be discharged from the drain water pipe, so be sure to install a drain hose.
