To choose the best model from the many available, we recommend selecting from the lineup and features list below based on your desired specification, such as whether it is "HFC alternative free," "energy-saving," "non-drain-free," and "filter-less."
However, please note that the installation method you desire may not be available depending on the conditions you select.
HFC alternative type (not subject to the Fluorocarbons Emissions Control Law)
Conventional control panel cooling unit generally use "CFCs" or "CFC substitutes" as refrigerant, but Apiste is the first in the industry to develop control panel cooling unit that uses "HFC alternative."

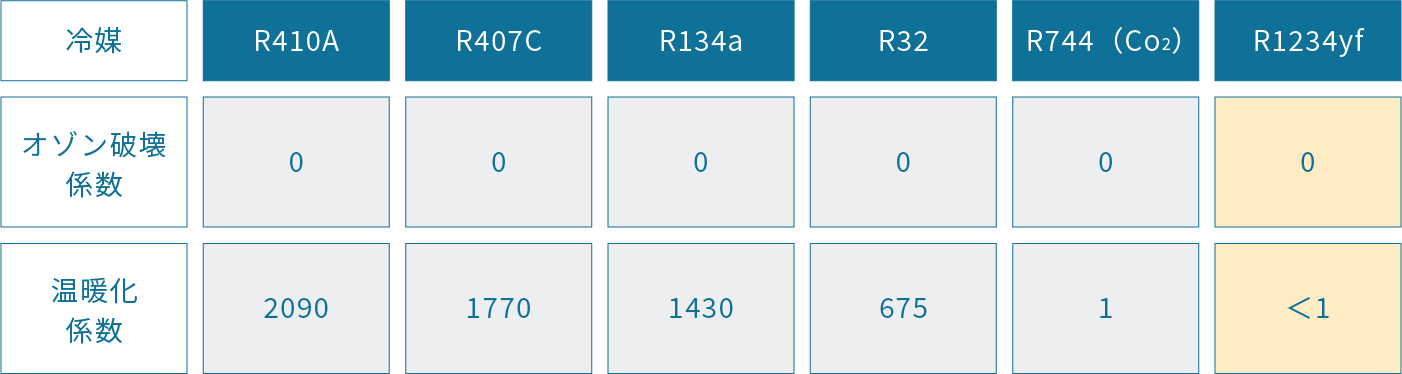

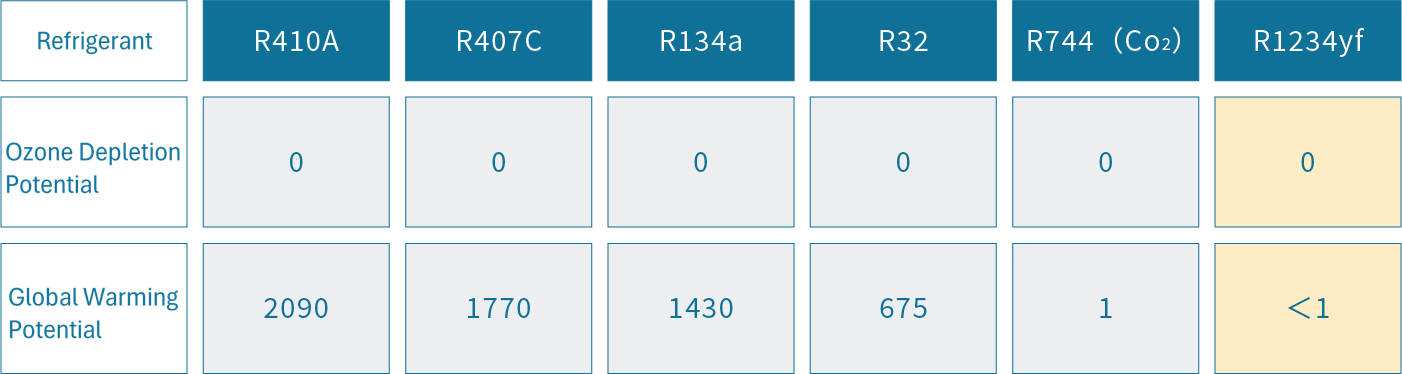

refrigerant R1234yf used in Apiste 's HFC alternative control panel cooling unit is an environment friendly refrigerant with ozone depletion potential (ODP) of 0 and a global global warming potential (GWP) of less than 1. In addition, it is not subject to the Fluorocarbons Emissions Control Law, so there is no need for periodic full inspections, record keeping, or obligations to recover and destroy fluorocarbons.
HFC alternative type lineup
The latest HFC alternative, maintenance-free, energy-saving control panel cooling unit
The ENC-GR-Pro series of control panel cooling unit is Apiste 's latest model, not only using non-freon-gas refrigerant, but also being filter-less and maintenance-free for a long period of time, and being control panel cooling unit-equipped for energy savings.
Energy-saving type
Energy-saving (inverter-equipped) type
While conventional control panel cooling unit are controlled by ON/OFF, Apiste 's energy-saving control panel cooling unit are inverter control and do not operate at full capacity until the load rate reaches 100%, reducing running costs.
Also, unlike ON/OFF control, there is little temperature change when cooling is stopped, which reduces stress on electronic devices.

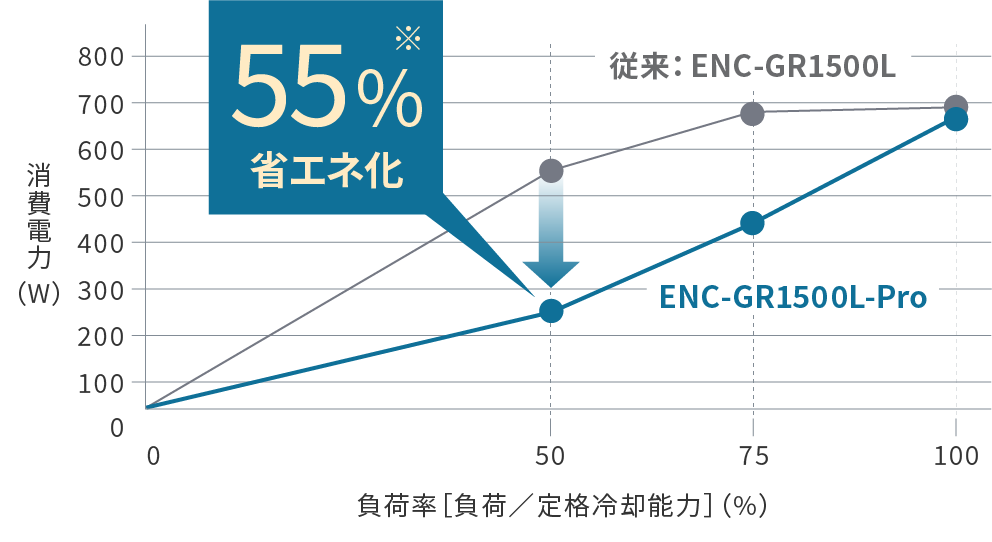

power consumption comparison data *For ENC-GR1500L-Pro
[operating conditions] ambient environment: 35℃-40% cooler setting temperature: 35℃
power supply frequency: 60Hz
Energy-saving inverter-equipped type lineup
Energy-saving intermittent operation
Eco mode equipped type
If compressor continues to operate in cooling mode for 30 minutes, it will switch to fan mode for 5 minutes. (The initial setting is for compressor to operate continuously until the temperature inside the panel drops.)
Cooling fan eco operation
The cooling fan will also turn on/off in sync with compressor 's ON/OFF operation.
(The initial setting is for the cooling fan to run continuously regardless of compressor operation.)
filter-less
Conventional control panel cooling unit use fin-and-tube condensers to dissipate heat, so if they become clogging with dust or other particles, cooling capacity drops significantly, making regular maintenance of filter and fins essential.
Apiste 's ENC-GR-Pro series is the only finless type in the industry, with no areas that can become clogging, eliminating the need for filter and allowing for long-term cooling capacity.
filter-less type lineup
non-drain and heater-less

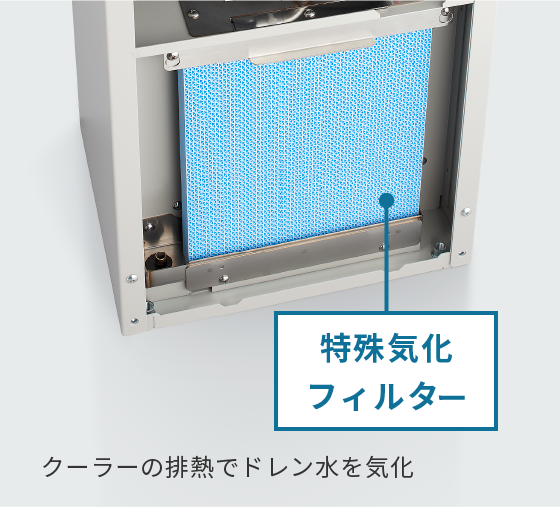

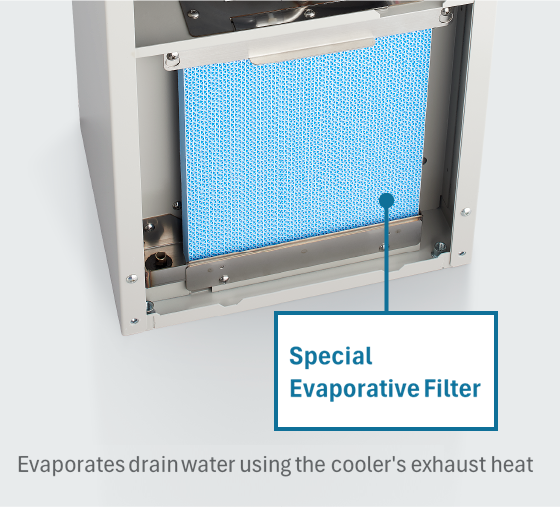

The drain water is held in a special evaporation filter that is non-flammable, highly absorbent, and breathable, and the drain water is evaporated using only the exhaust heat from cooler without consuming any extra electricity.
Recommended for use on mezzanine floors where drainage is difficult (non-drain conditions: 35°C/85%).
non-drain type lineup
outdoor specification

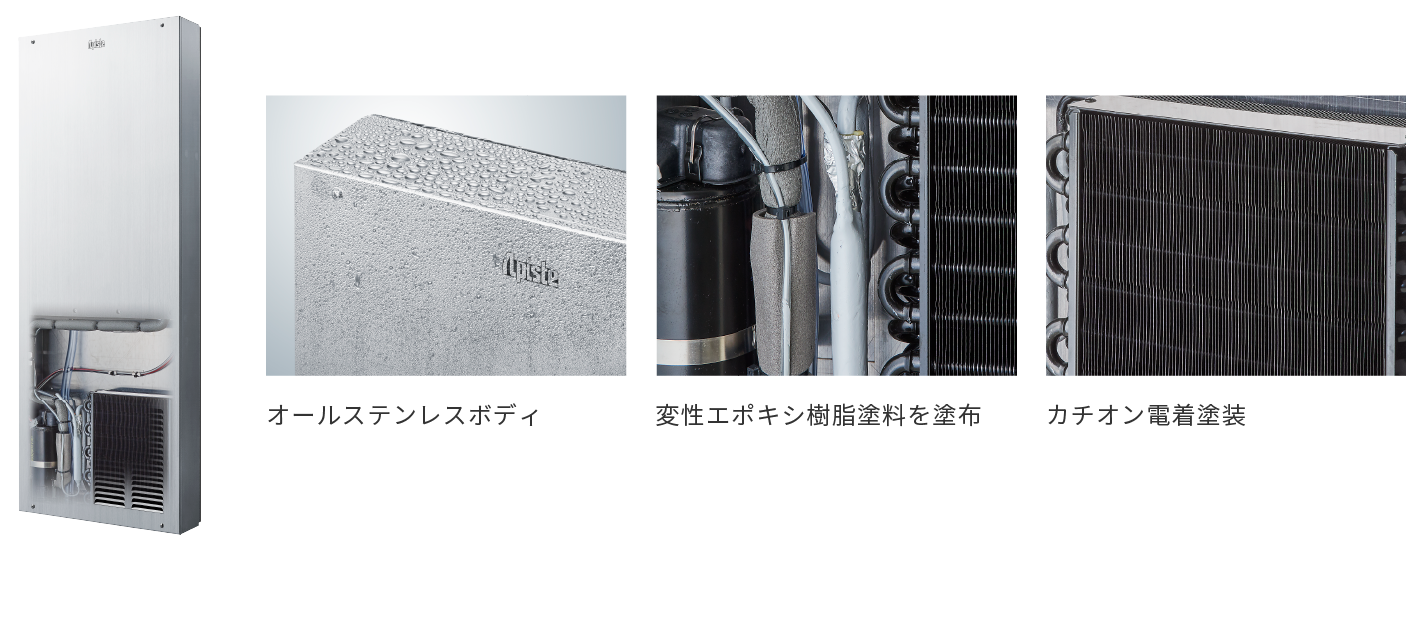

To ensure high durability, the unit is designed environment outdoor installation or use in wet and humid environment such as food factories, with an all-stainless steel body, a condenser finished with cathodic electrocoating, and refrigerant piping finished with modified epoxy resin coating.
outdoor specification lineup
Other lineup

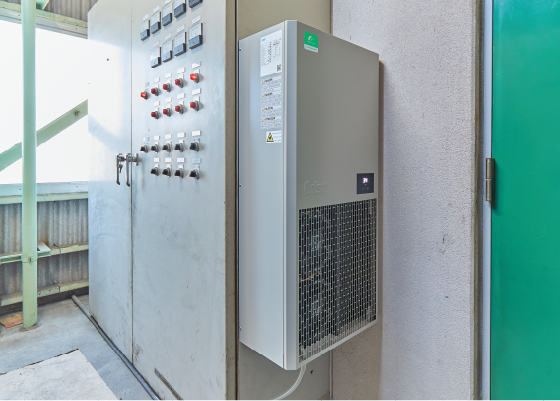

Side-mounting
This type is attached to the side and door of panel.

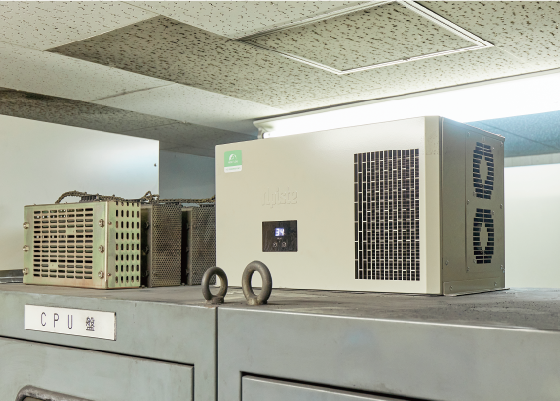

Ceiling Mounting
This type is installed on the ceiling of panel. The ceiling type has a double drain pan structure to prevent water from leaking into panel.
AC100V specification
Please note that some models/ model do not support AC100V.
If you only have AC 100V, consider using a step-up transformer.
Small and slim type
We also offer compact and slim-body control panel cooling unit can be installed in small panel or in locations where installation is difficult due to limited space.You can choose the type that best suits your installation location.
