Non-freon-gas Filter-less & Energy saving

Model Cooling capacity
(W)
Rated Voltage
(V)
External Dimensions (H×W×D)
(mm)
Weight
(kg)

ENC-GR500L-Pro
Side-mounting type
530 Single-phase AC200~240 H450×W350×D260 Approx. 19 Product details
ENC-GR1000L-Pro
Side-mounting type
1000 Single-phase AC200~240 H730×W350×D260 Approx. 26 Product details
ENC-GR1500L-Pro
Side-mounting type
1460 Single-phase AC200~240 H1000×W400×D230 Approx. 32 Product details
ENC-GR2000L-Pro
Side-mounting type
2000 Single-phase AC200~240 H1000×W450×D260 Approx. 41 Product details
ENC-GR2500L-Pro
Side-mounting type
2600 Single-phase AC200~240 H1000×W450×D260 Approx. 44 Product details
ENC-GR500EX-Pro
Top-mounting type
600 Single-phase AC200~240 H348×W550×D270 Approx. 21 Product details
ENC-GR1000EX-Pro
Top-mounting type
1000 Single-phase AC200~240 H348×W600×D353 Approx. 25 Product details
ENC-GR1500EX-Pro
Top-mounting type
1400 Single-phase AC200~240 H448×W590×D350 Approx. 31 Product details

Features of Non-freon-gas Filter-less & Energy saving

ENC series TECHNOLOGY

Pro

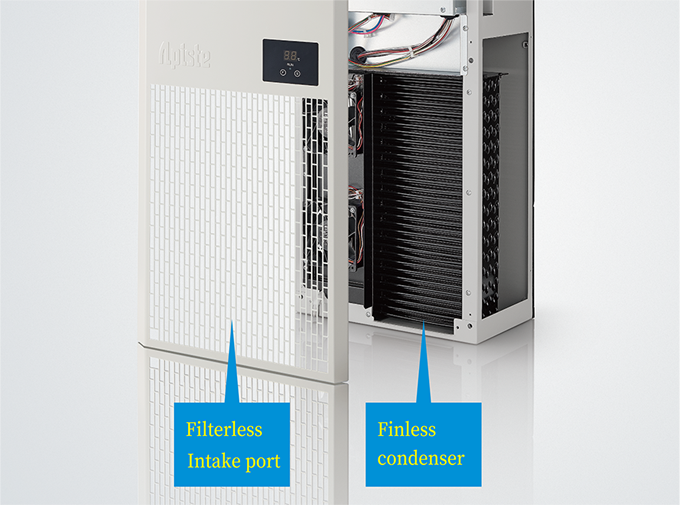

Fewer filter clogs means less maintenance

No fins means no clogging, and a filter-less design simplifies daily maintenance.

Past control panel cooler units needed regular fin and filter maintenance because they released heat with a fin and tube condenser system. GR-Pro Series control panel coolers use a new fin-less condenser. This greatly reduces maintenance and cost because there are no spots in the system that can become clogged and therefore no need for a filter.

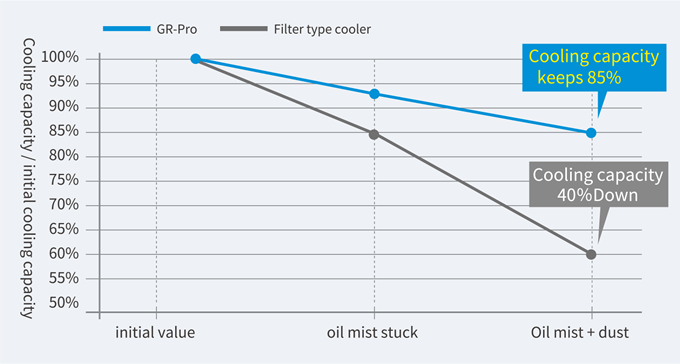

Even when dirty, there is little drop in cooling performance

Testing the effect on cooling performance of dust and oil mist stuck on the condenser shows that while filter system performance drops 40%, the GR-Pro Series keeps 85% performance.

Energy saving & Powerful cooling

Compared to past inverters, saves energy use up to 55% to greatly reduce electricity costs.

Apiste's independently developed inverter controls three key functions: compressor, condenser fan (using a DC brushless motor), and expansion valve (using a stepping motor). Activating before the operating load reaches 100% achieves up to 55%* energy saving compared to past models. Moreover, Triple eco Control reduces stress on electronic components by reducing gradually temperature fluctuationg.

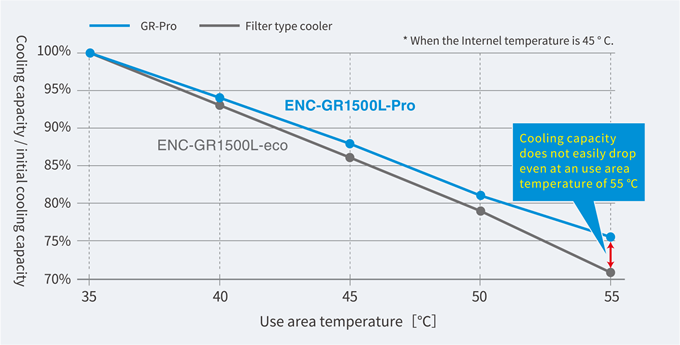

Even in high-temperature conditions, only a small drop in cooling performance

The GR-Pro Series features a decompressor relocated from the capillary tube to the electronic expansion valve. Data from the cooling circuit’s condenser temperature sensor and evaporation temperature sensor are converted to pressure and then used to precisely control electronic expansion valve pressure. The best compressor performance and maintains the best cooling performance even under each high-temperature conditions.

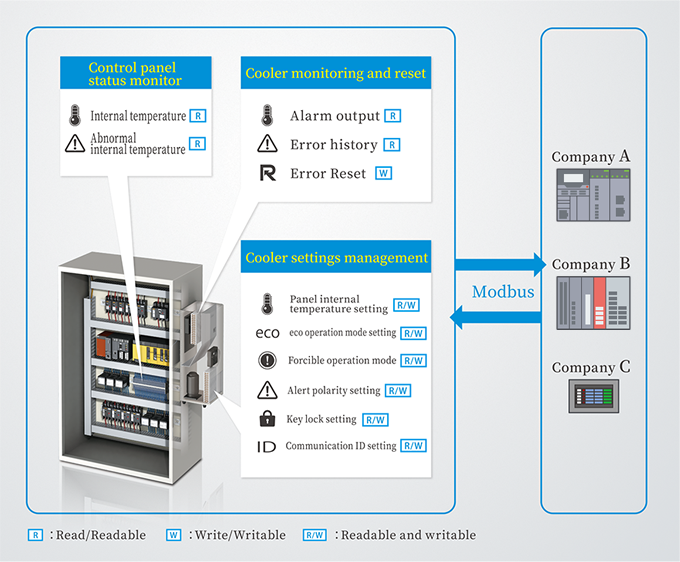

Convenient IoT compatible features

Remote reading and writing

To meet the rising demand for IoT compatible in manufacturing work floors, GR-Pro Series control panel coolers are the first in the industry to provide remote reading and writing and Modbus/RTU communication (RS-485). Connect up to 32 devices to one touch panel or PLC to centrally monitor temperature and change those settings.

Light, slim, and easy to install

GR-Pro Series can be used in various applications.

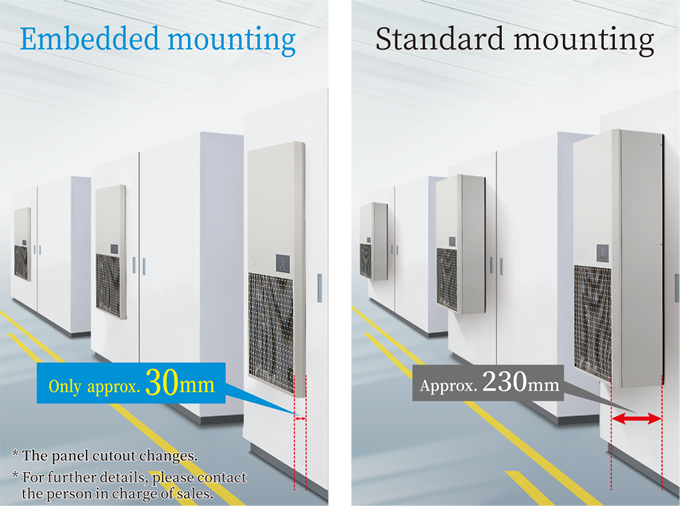

Compared to past Apiste filter-less coolers, the GR-Pro Series is an impressive 10 kilograms* lighter. Expect less worry about control panel durability and to spend less time and effort on installation. A depth reduced by 50 millimeters* produces less cooler bulge from the control panel. What’s more, the unit can be embedded without a special holder.

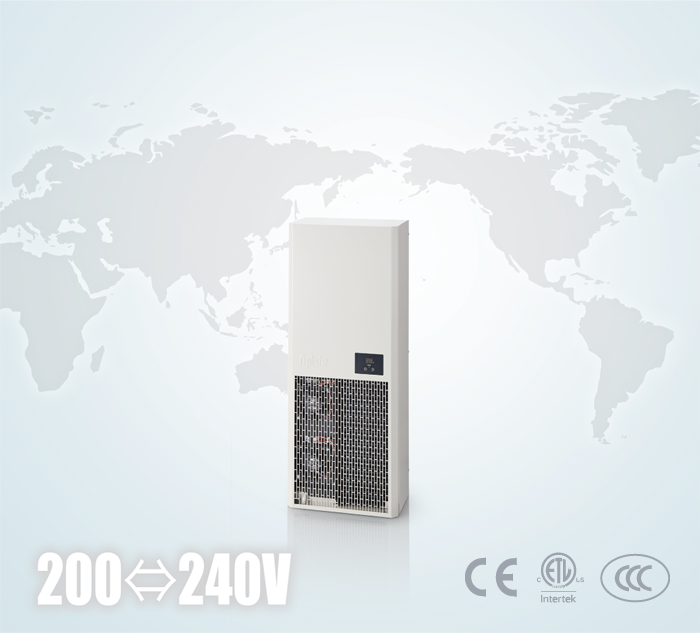

User-friendly universal specs

200-240V free power & CE / ETL / CCC

The GR-Pro Series features a 200-240V free power source compatible with CE/ETL/CCC global standards. For instance, a free power supply makes it possible to set up a new copy line overseas of a manufacturing line operating in Japan or move manufacturing equipment in Japan to an overseas factory. In the past, manufacturers had to figure out which equipment met the voltage requirements of the destination country and then make time consuming and expensive design and floor plan changes, but from now on if you are a manufacturer moving overseas, you can save time and money by choosing the GR-Pro Series.
