Freon-gas Outdoor specification
Model list
Mounting position
| Model | Cooling capacity (W) |
Rated Voltage (V) |
External Dimensions (H×W×D) (mm) |
Weight (kg) |
||
|---|---|---|---|---|---|---|
| ENC-AR1010HD Side-mounting type |
SUS body (Outdoor specification) | 900/1000 | Single-phase 100V AC | H730×W300×D280 | 26 | Product details |
| ENC-AR1610HD Side-mounting type |
SUS body (Outdoor specification) | 1450/1600 | Single-phase 100V AC | H1000×W400×D260 | 42 | Product details |
| ENC-AS510HDS Side-mounting type |
Low-Noise (Outdoor specification) | 500/550 | Single-phase 100V AC | H970×W420×D230 | Approx. 33 | Product details |
| ENC-AS1010HDS Side-mounting type |
Low-Noise (Outdoor specification) | 900/1000 | Single-phase 100V AC | H1050×W420×D255 | Approx. 38 | Product details |
| ENC-AS1000HDS-DC Side-mounting type |
Low-Noise (Outdoor specification) | 1050 | 48V DC（40 to 59V DC） | H1050×W420×D220 | Approx. 30 | Product details |
| ENC-AS2000HDS Side-mounting type |
Low-Noise (Outdoor specification) | 1900/2000 | Single-phase 200V AC | H1140×W510×D290 | Approx. 56 | Product details |
Freon-gas outdoor specification features
ENC-AR-HD Series standard SUS features
High weather resistance is achieved by a structural design which fully takes rust prevention into consideration.

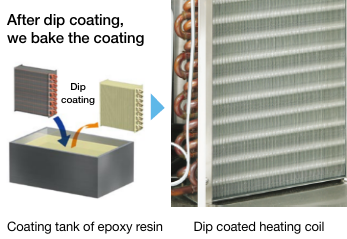

The condenser fins are coated with an epoxy resin in the internal structure. In order to apply the resin in detail, dip painting to immerse the parts in a paint bath and baking treatment are carried out. In addition, a metal epoxy primer coating is applied on the refrigerant piping. The ultimate weather resistance has been realized.
Epoxy resin dip coating
Metal epoxy primer coating
Main test items for epoxy-based anti-rust special paints (based on JIS K 5600 test method)
| Salt water resistance | No abnormalities even when immersed for 120 hours in a sodium chloride solution (3W/V%). |
|---|---|
| Impact resistance | No cracks or peeling when subjected to the impact of a weight dropped from a height of 500 mm. |
| Bending resistance | Must be able to withstand bending with a diameter of 3 mm. |
| Salt spray resistance | No rust, swelling or peeling of the coating film in a 96-hour test. |
| Cross-cut adhesion test | Classification of 1 when the cellophane tape peels off in the 1 mm grid cross-cut adhesion test. |
| Rust resistance | Extent of rust must not be greater compared to that of a standard product when the coated film is peeled off without any rust on the surface during a one-year test. |
ENC-AS-HDS Series Low-Noise features
Powerful cooling with quieter operation. Super low-noise models,as low as 45 dB
This series minimizes the operating noise of the compressor and radiation fan, which are typically the main noise sources in conventional outdoor control panel cooling units. The super low-noise models can even be installed in residential areas. Choose from units with a cooling capacity of 500W, 1000W, or 2000W. The power supply voltage is available in 100 V AC, 200 V AC, or 48 V DC. These super lownoise cooling units can be used for a wide variety of applications, such as digital signage, fast chargers, and mobile communication base stations.

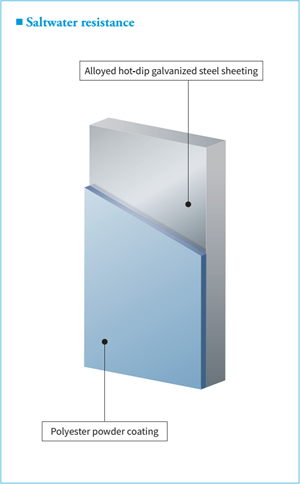

Saltwater resistance for use anywhere
The exterior alloyed hot-dip galvanized steel sheeting features a highly weather-resistant polyester powder coating for use even in areas prone to salt damage. The ENC-AS1000HDS-DC model features interior sheet metal with the same polyester powder coating for even greater weather resistance.
