Non-freon-gas SUS body (outdoor specification)
Model list
Mounting position
| Model | Cooling capacity (W) |
Rated Voltage (V) |
External Dimensions (H×W×D) (mm) |
Weight (kg) |
|
|---|---|---|---|---|---|
| ENC-GR510L-SUS Side-mounting type |
470 | Single-phase 100 to 120V AC | H700×W350×D99 | 17 | Product details |
| ENC-GR500L-SUS Side-mounting type |
470 | Single-phase 200 to 240V AC | H700×W350×D99 | 17 | Product details |
| ENC-GR1000L-SUS Side-mounting type |
1000 | Single-phase 200 to 240V AC | H1070×W400×D99 | 25 | Product details |
| ENC-GR1500L-SUS Side-mounting type |
1480 | Single-phase 200 to 240V AC | H1370×W400×D119 | 31 | Product details |
| ENC-GR2500L-SUS Side-mounting type |
2480 | Single-phase 200 to 240V AC | H1450×W450×D150 | 42 | Product details |
Non-Freon & SUS features

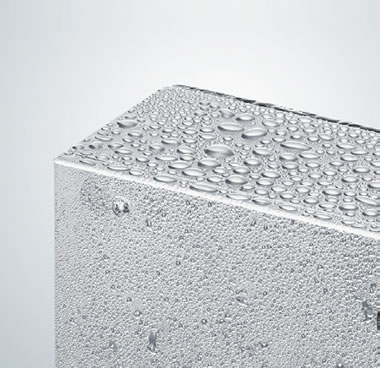

Waterproof SUS body
Durable for use in wet/humid environments and outdoors

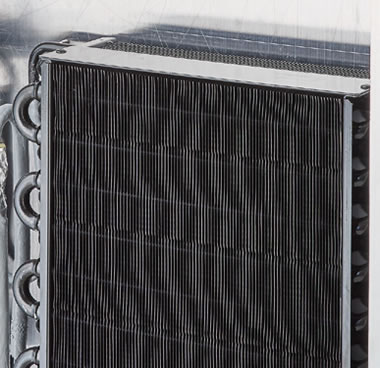

The external panel is made entirely of stainless steel to ensure durability and high weather resistance. This allows for extended use even in harsh environments such as wet, humid, or outdoor environments. Internally, the condenser is coated with cationic electro-deposition paint and the refrigerant pipes are coated with modified epoxy resin paint*, resulting in a highly reliable HFC-alternative control panel cooling unit. You can also use them safely in food factories and for outdoor control panels.
Only for refrigerant pipes of condenser

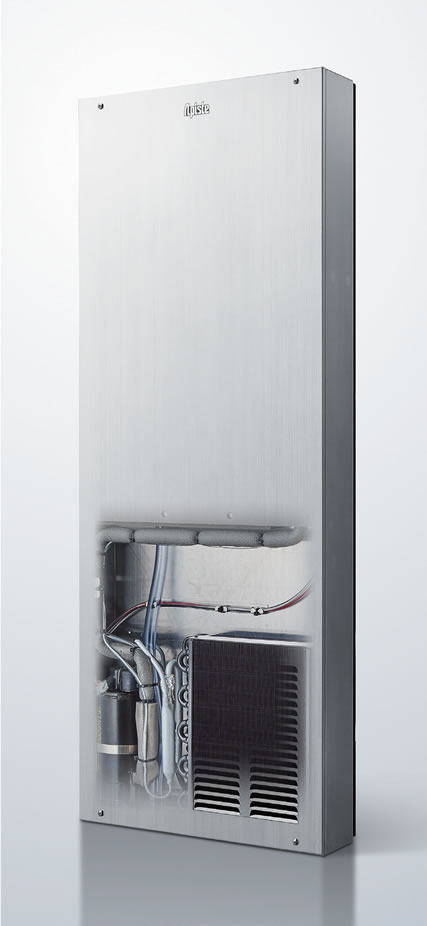

All stainless body
They are used in a variety of applications, including cubicle panels, as well as outdoor fast chargers and signage.

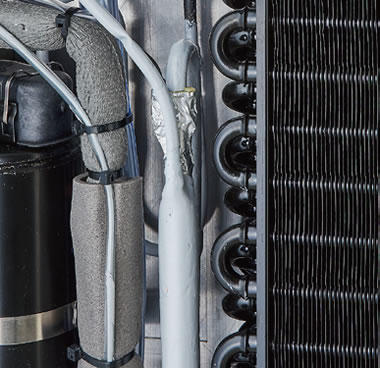

Modified epoxy resin-based coating
The copper refrigerant pipes are highly-reliable and are coated with rust‐preventative, salt water resistant modified epoxy resin-based coating.
Cathodic Electrodeposition
Coating composed of epoxy resin is applied using an electrochemical reaction for extremely high anti-corrosion performance without any unevenness in the coat.

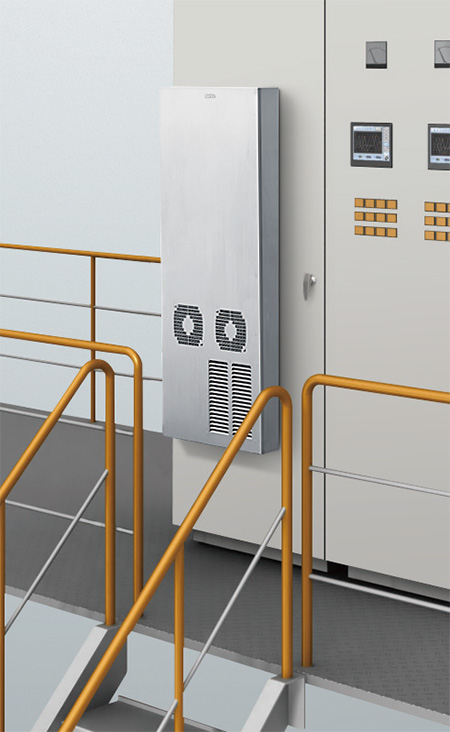

Ultra-slim body Compact installation with very little protrusion

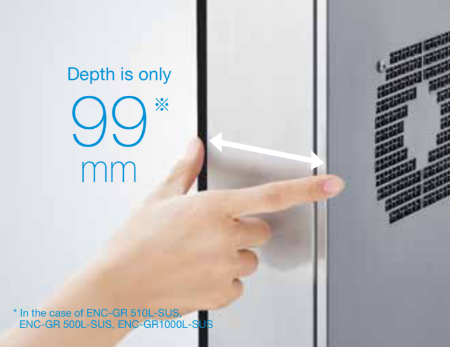

Depth is only 99 mm
Easy to install even in a small space
For compact spaces. To install in locations after considering the floor design to make the unit inconspicuous. The ENC-GR-SUS series was made to be slimmer as requested by users. Our large model is 150 mm deep and our smallest model is only 99 mm with an ultra-slim body.

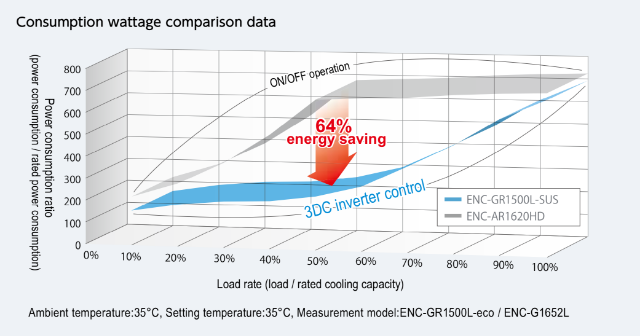

Energy-saving model Cools only the required sections
Inverter control reduces electricity costs
While ON/OFF control has been adopted for existing series, with ENC-GR-SUS series, compressor and fan in which DC motor is incorporated are controlled by inverter. Not running at full power until reaching 100% load ratio reduces running costs. Moreover, the temperature does not change when if worksnormally like as ON/OFF control, so the stress on an electric device can be reduced.
Toughness For longer service life.
All models respond to high-temperature environment (MAX55°C) is ensured.
All models respond to high-temperature environment (MAX55°C) is ensured by controlling the temperature of compressor head. DC compressor and self-developed inverter control the number of revolutions to suppress the temperature rise of compressor under hightemperature environment. The cooling operation is enabled under high-temperature environment where the protection function of an existing constant-velocity compressor has functioned to stop cooling.

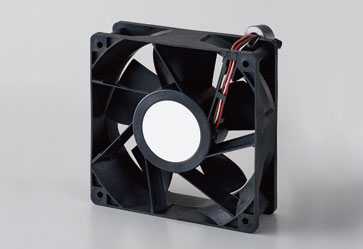

Highly durable radiator fan
Abolishment of contact relay equivalent to IP68.
Long-life DC fan equivalent to IP68 provides long-time reassurance.

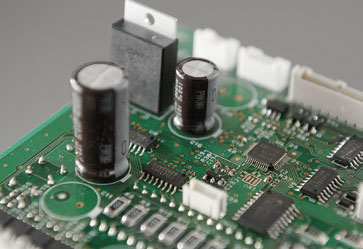

Surface coated
board.
Reduces risk of short circuit due to foreign matters such as powder dust and oil mist.。
QR code provides quick access to the model and manufacturing serial number
Read the QR-code to quickly get the model and manufacturing serial number. Read the Qrcode to quickly find control panel cooling unit registration, maintenance, and other product information.
Dry mode
The cooling mode of the GR-eco Series features a dry mode that can be switched on when operating in high humidity locations or environments. Please change the dry mode when, for example, equipments start up with moisture interference.
The ENC-GR-SUS series is perfect for use in wet/humid environments or outdoors.

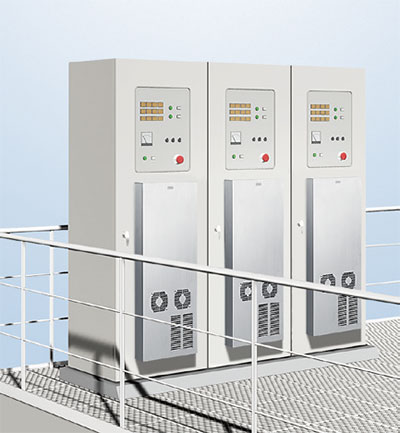

Cooling outdoor utility panels

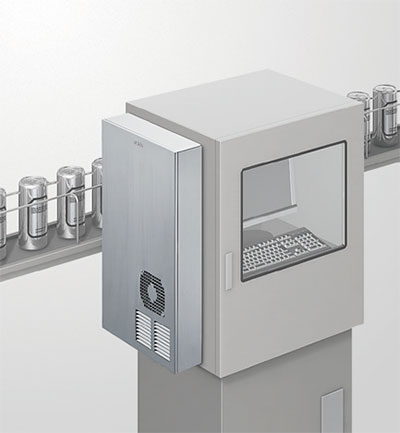

Cooling food product inspection devices

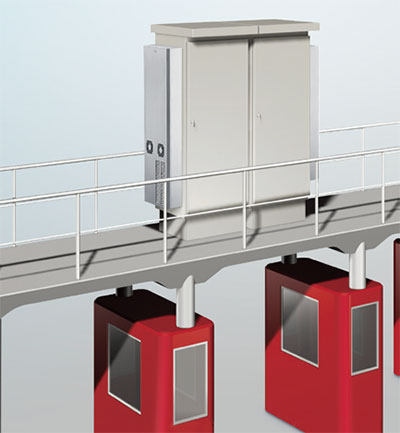

ETC rack heat measures
