Non-freon-gas Compact
Model list
Mounting position
| Model | Cooling capacity (W) |
Rated Voltage (V) |
External Dimensions (H×W×D) (mm) |
Weight (kg) |
|
|---|---|---|---|---|---|
| ENC-GR300S Side-mounting type |
260/300 | Single-phase 200V AC | H450×W300×D150 | 14 | Product details |

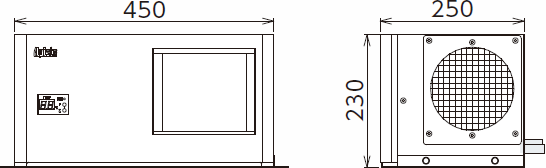

| ENC-GR310EX Top-mounting type |
290/300 | Single-phase 100V AC | H232×W450×D250 | Approx. 15 | Product details |
| ENC-GR300EX Top-mounting type |
290/300 | Single-phase 200V AC | H232×W450×D250 | Approx. 15 | Product details |
Non-freon-gas Compact features
Installable in a wide range of locations Ultra-Slim Body
The ENC-GR300S is an HFC-alternative control panel cooling unit featuring an ultra-slim body. It shares the same height and width dimensions as our conventional CFC model (ENC-452S Series) to enable smooth upgrading to an HFC-alternative unit.
Low-profile design for easy use Ultra-Compact Body
The ENC-GR310EX/GR300EX is a highly anticipated ceiling-mounted HFC-alternative control panel cooling unit featuring an ultra-compact body. It is ideal for robot control panels with limited installation space or locations where ceiling clearance is too tight for conventional cooling units.
Non-freon-gas R1234yf refrigerant
Environmentally-friendly
ENC-GR Series uses non-freon-gas R1234yf refrigerant.With a global warming coefficient less than 1, ENC-GR Series is environmentally-friendly.What's more, since it's outside the scope of the Fluorocarbons Recovery and Destruction Law, there is no need to expend time and labor to control fluorocarbon emission.
