Control panel cooling unit ENC-GR310LE-eco
Control Panel Cooling unit
Non-freon-gas Non-Drain
Side-mounting
ENC-GR310LE-eco
ENC Series
* For safety standards of the ENC-GR-eco/SUS series, please contact our sales representative separately.
The first player in this industry market non-freon-gas, non-draining control panel cooling unit
- Non-freon-gas
- Non-Drain
| Cooling capacity(W) | 350 |
|---|---|
| Rated Voltage(V) | Single-phase 100V AC |
| Mounting type | Side-mounting |
| External dimensions(mm) | H590×W200×D280 |
| Weight(kg) | 18 |
Product Details for ENC-GR310LE-eco
Specifications
(50／60Hz)
| Mounting type | Side-mounting |
|---|---|
| Cooling capacity(W) | 350 |
| Setting temperature range(℃) | 25 to 45 |
| Ambient Temperature(℃) | 20 to 55 |
| Ambient Humidity(%RH) | 10～85 (No condensation) |
| Dimensions(mm) | H590×W200×D280 |
| Weight(kg) | 18 |
| Coating Color | Munsell 5Y 7/1 Equivalent color of light beige |
| Rated voltage(V) | Single-phase 100V AC |
| Current consumption : Rating(A) | 2.6/2.6 |
| Current consumption : Max(A) | 3.7/3.8 |
| Power consumption : Rating(W) | 215 |
| Power consumption : Max(W) | 320 |
| Recommended breaker capacity (A) | 5 |
| Vibration resistance | JIS Z0200 Level 1 equivalent |
| Dustproof and splashproof protection grade | IP54 equivalent (internal circulation path) |
| Refrigerant / Amount(g) | R1234yf 120g |
| Noise (dB (A)) | Approx. 64 |
| External output | Alarm output (No-voltage/normal open: resistive load 250V 2A), Can be switched to no-voltage/normal close by setting |
| Display | Panel internal temperature / Error code / RUN |
*Cooling capacity : The rated cooling capacity at 35°C ambient temperature, 40% relative humidity, and 200 V power-supply voltage (100 V for 100 V models only).
(Measurement conditions: JIS B 8615-1 indoor air enthalpy test method)
*The ambient temperature and ambient humidity define the operating range and do not guarantee the rated performance.
*Rated value: The rated value at an ambient temperature of 35°C, humidity of 40% RH, and power-supply voltage of 200 V (100 V for 100 V models only).
*Maximum value: Each maximum value has its own prescribed ambient temperature.
*Use power-supply voltage within ±10% of the rated voltage.
*Current consumption and power consumption are values during the cooling operation.
*Dustproof and splashproof protection grade: Excluding the drain pipe section.
*Please read the instruction manual carefully before use and use the product correctly.

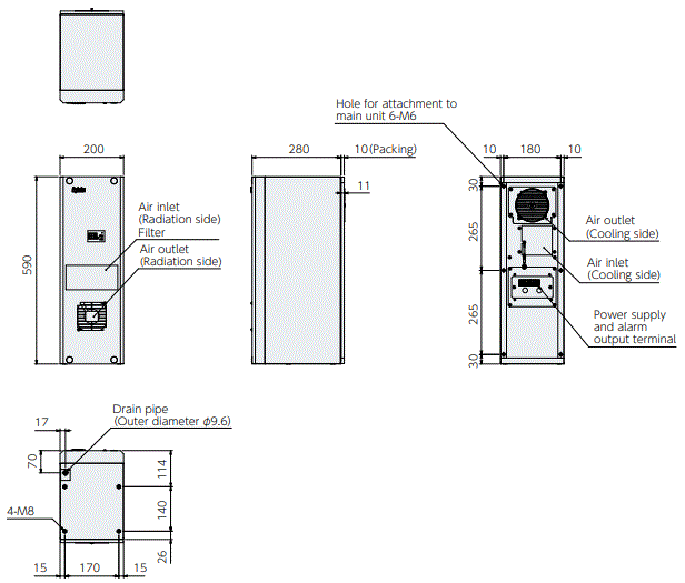

External dimensions

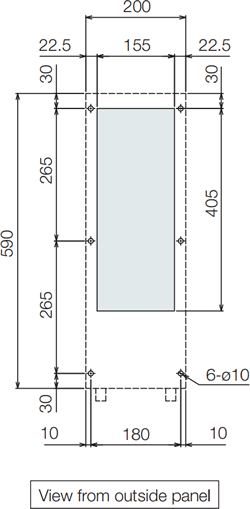

Diagram of Panel Cutout

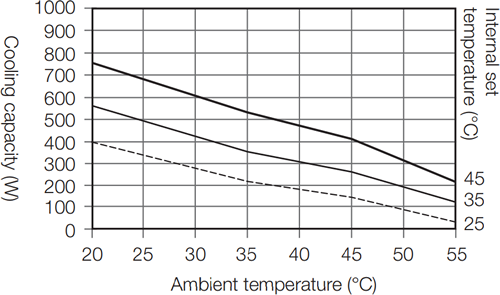

Capacity characteristic chart
*Contact our sales representative if you are using the control panel cooler in an environment close to the permissible ambient temperature upper limit.
[Caution]
To ensure proper operation of this equipment, read the operation manual before use.
Depending on model and quantity, separate charter delivery may be arranged (additional costs apply).
Overseas at the time of delivery, we recommend packing for overseas separately.
Please check through the cooler between the FA and the power (circuit breakers) to the appropriate specification of the FA breaker cooler.
Cause of failure and be used at the rated power supply out of range.
Please use the service and maintenance on a regular basis.
Failure to maintain regular maintenance, you may be a factor in product performance degradation trouble.
When the outside temperature is low in winter, please do not let the FA cooler continuous operation.
When disposing of this product, you should comply with various laws and regulations, please go to the appropriate.
