Freon-gas Non-Drain
Model list
Mounting position
| Model | Cooling capacity (W) |
Rated Voltage (V) |
External Dimensions (H×W×D) (mm) |
Weight (kg) |
|
|---|---|---|---|---|---|
| ENC-G310LE Side-mounting type |
280/300 | Single-phase 100V AC | H590×W200×D250 | 18 | Product details |
| ENC-G1310LE Side-mounting type |
1150/1300 | Single-phase 100V AC | H900×W400×D250 | 36 | Product details |
| ENC-G820EXE Top-mounting type |
700/800 | Single-phase 200V AC | H338×W670×D353 | 30 | Product details |
| ENC-G1310EXE Top-mounting type |
1150/1300 | Single-phase 100V AC | H448×W710×D370 | 44 | Product details |
| ENC-G1320EXE Top-mounting type |
1150/1300 | Single-phase 200V AC | H448×W710×D370 | 44 | Product details |
Standard Non-Drain features
Providing industry-leading drainage processing

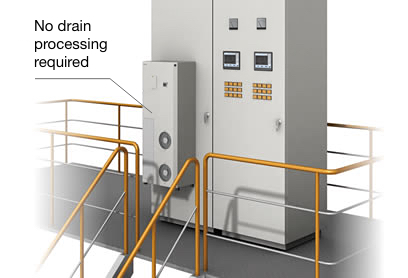

For harsh workplace conditions, a drain vaporization method not giving out water was adopted. Even in a hot and humid environment with air temperature of 35℃ and humidity of 85% the non-drain method was implemented. This device can be used safely throughout the whole year.
Adoption of a non-drain method by a special water filter

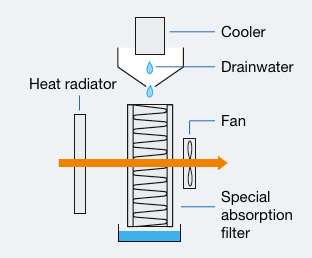

Adoption of a non-drain method by a special water filter that combines excellent moisture absorption and ventilation. The drain water is absorbed by a special filter, by using the cooler's exhaust heat to evaporate the drain water a heater-less non-drain is achieved.
Side-mounting type ENC-LE series

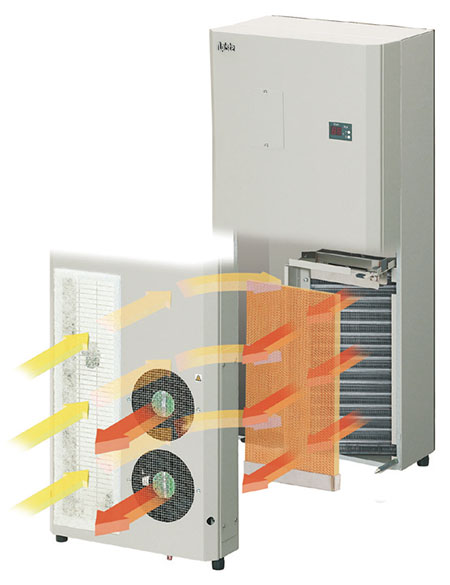

Heat dissipated by condenser evaporates the drain water
- Zero energy consumption during drain evaporation
- Zero problems resulting from drainage
- Anytime maintenance

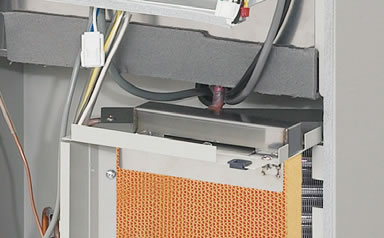

Newly developed Drainwater absorption unit equipped (application in processing)
Waste water dehumidified from damp air inside the control box is collected in the new-design drainwater collection unit, and evenly absorbed by the unique absorption filter
Industry-first Uses special absorption filter

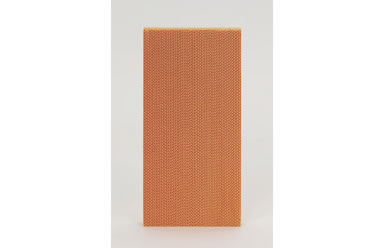

Uses special absorption filter which combines superb absorption with breathability. Effective vaporization of drainwater
Top-mounting type ENC-EXE series
Top-mounted drain vaporization unit
Roof-mounted cooler equipped with newly developed drain vaporization unit. Drainage-free even in high temperature/humidity environments of up to 35c and 85% humidity
Heaterless vaporization design
Internally equipped special filter has superb absorbtion and ventilation. By utilizing waste heat from the heat exchange process, drainwater collected from the cooler is vaporized internally. As there is no need for an additional heater, the power use is reduced.
Designed to prevent overflows
Twin flow sensor and double-layered drainage pan equipped. In the unlikely event of a drainage overflow, complete protection is ensured.

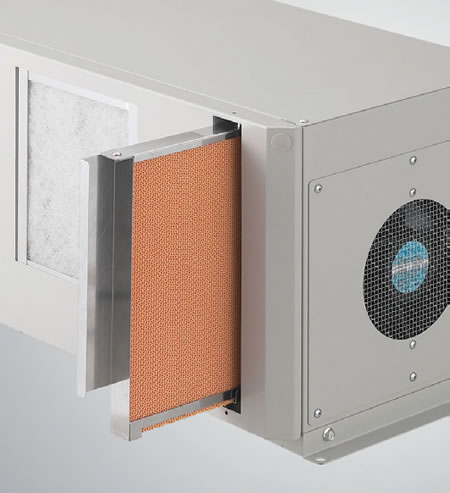

Easy maintenance
We have made maintenance easy to implement. The special filter, heat dissipation fan, and cooling fan can all be changed using a screwdriver. The air inlet filter also includes a one-touch removable filter.
