ENC SERIES/Panel Cooling Units

Standard

Two Types - Ceiling-Mount and Side-Mount

Choose the appropriate mounting method in accordance with the device specifications. Each type has a rich line up and can offer wide range of support.

Side-Mount (L-Series)

Side-Mount Side-Mount

The installation work is easy because it can be installed directly to the control panel's side or door. In addition, regarding models corresponding to half-embedding, space saving is implemented.

Ceiling-Mount (EX-Series)

Ceiling-Mount Ceiling-Mount

This is useful in cases such as that of consolidated control panels when the control panel is facing the aisle and the device cannot be attached to the side because various other devices are already attached there.

Double Air Blocking Panels

Shutting down the entry of oil mist and dust inside of the panel.

Double Air Blocking Panels

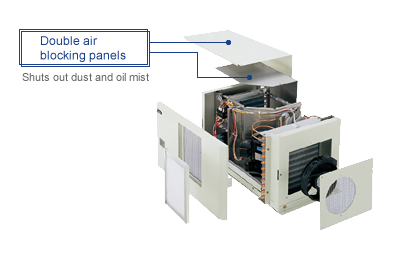

Dust-proofing effects are increased via double air blocking panel

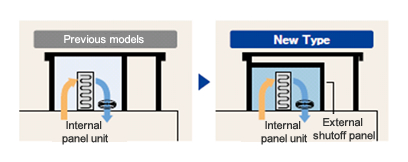

In order to completely isolate the inside of the panel from the outside, an air blocking panel was also employed in the inside of the "Panel Cooler Unit". As a result of the double air blocking structure, the sensitivity of the control panel inside was significantly improved, and thorough anti-dust measures were implemented.

Double Air Blocking Panels

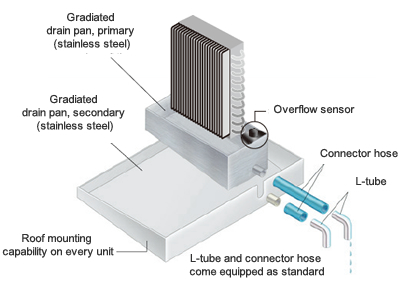

Using an Over Flow Sensor + Double Drain Pan

This is a structural design with complete anti-water leakage measures.

This is a structural design with complete anti-water leakage measures. This is a structural design with complete anti-water leakage measures.

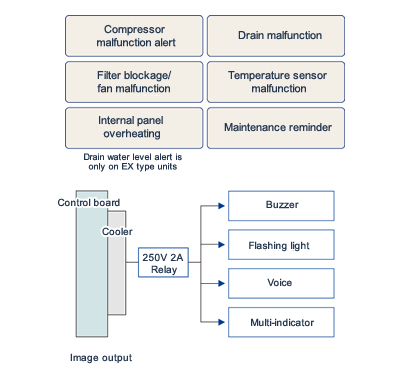

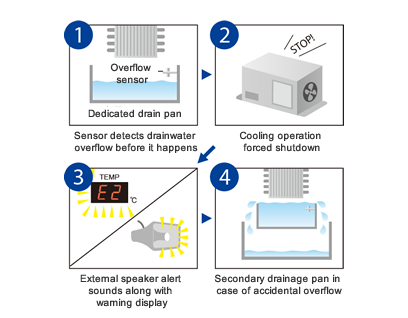

Should water leak through the first drain pan, the second drain pan would catch that, which provides a double drain pan structure, which assures security. Furthermore, an overflow sensor is equipped on the first drain pan. If the drain water level becomes high, the protection circuit gets going and there is display on the control panel and external output, which lead to forced stopping of the cooling operation.

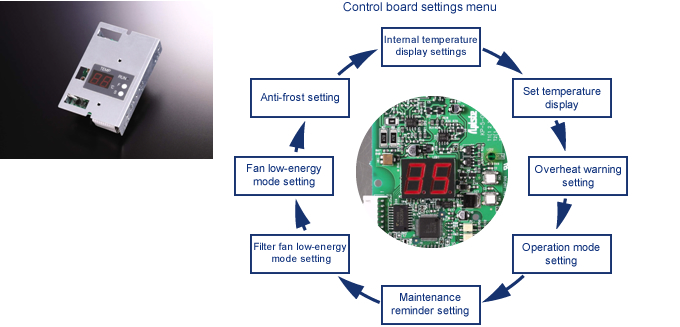

Flat panel controller

The set up and operation are easy to perform.

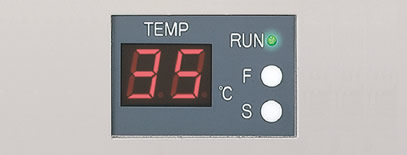

The various settings and operations of the control panel cooler, such as the temperature settings, are operated easily by the simple operation of selecting / confirming using only two keys. You can check in real time the temperature inside the panel on a high brightness LED display.

Flat panel controller

Energy Efficient Mode

Constantly monitoring the operation of the cooler.

Energy Efficient Mode

The various settings and operations of the control panel cooler, such as the temperature settings, are operated easily by the simple operation of selecting / confirming using only two keys. You can check in real time the temperature inside the panel on a high brightness LED display.

Energy Efficient Mode
