Chiller PCU-F7000
Chiller
Pumpless and tankless chillers
PCU-F7000
PCU Series
| Cooling capacity (W) | 5700/6700 |
|---|---|
| Temperature stability (℃) | ±0.1 |
| Circulated water flow rate range (ℓ/min) | 10 to 60 |
| Circulating water fixed flow rate (ℓ/min) | 30／30 |
Product Details for PCU-F7000
Specifications
(50 / 60Hz)
| Cooling scheme | Air-cooling type |
|---|---|
| Cooling capacity (W) *1 | 5700 / 6700 |
| Circulated water *2 | Clean water, Ethylene glycol solution (concentration 15 wt% or less), Propylene glycol solution (concentration 15 wt% or less) |
| Temperature stability (℃) *3 | ±0.1 |
| Use Area Temperature (℃) | 5 to 45 |
| Temperature control / Fixed system | Control target *4 : Outlet liquid temperature or External temperature sensor measurement value Range[℃] : 5 to 40 |
| Temperature control / Synchronized system | Reference *4 : External temperature sensor measurement value Control target : Outlet liquid temperature Synchronization range [℃] : -10.0 to +10.0 relative to the reference temperature (factory default setting: 0.0) |
| Circulated water flow rate range (L/min) | 10 to 60 |
| Circulating water fixed flow rate (ℓ/min) | 30/30 |
| Circulating water maximum operating pressure (MPa) | 1 |
| Dimensions (mm) *5 | H997×W400×D600 |
| Coating Color | Munsell N-87 |
| Weight (kg) | Approx. 73 |
| Casters (Φmm×unit) | 50×4 |
| Rated Voltage (V) *6 | Three-phase, 200V AC / 200 to 220V AC (50/60Hz) |
| Power Consumption (kW) *1 | 1.8 / 2.3 |
| Current consumption (A) *1 | 7.4 / 7.8 |
| Recommended breaker capacity (A) | 20 |
| Circulating water inlet / outlet port size | Rc3/4 |
| Drain discharge port size | G1/2 |
| Components / Compressor | Fully sealed rotary type |
| Components / Condenser | Parallel flow condenser |
| Components / Evaporator | Structure : Plate-type heat exchanger Material : SUS316 (copper brazing) |
| Refrigerator | R1234yf 725g |
| Noise (dB) *7 | 57 / 65 |
| Safety circuit / Compressor | Thermal protector, electromagnetic switch |
| Safety circuit / Fan motor | Thermal protector, current fuse |
| Input / Alarm output | No voltage, normally open (maximum 250V AC and 1 A/30 V DC and 2A) |
| Input/Output / Water temperature upper / lower limit output | No voltage, normally open (maximum 250V AC and 1 A/30 V DC and 2A) |
| Input/Output / Operation stop output | No voltage, normally open (maximum 250V AC and 1 A/30 V DC and 2A) |
| Input/Output / Emergency stop input | No-voltage input |
| Input/Output / Operation stop input | No-voltage input |
| Input/Output / Error reset input | No-voltage input |
| Input/Output / External temperature sensor *7 | Pt100 |
| Input/Output / Ethernet | Communication standard : 10BASE-T/100BASE-TX Communication protocol : Socket(TCP/IP)、MC protocol(UDP/IP)、Modbus TCP |
| Log data | Recorded items: Date and time, error number, circulating water set temperature, circulating water outlet temperature, external temperature, chiller run/stop, fan/compressor run/stop, emergency stop command input terminal status, run-stop command input terminal status, error reset command input terminal status, pseudo-alarm output status, compressor high pressure, compressor low pressure, compressor discharge temperature, compressor intake temperature, fan control status, cooling operation amount, high-pressure protection control status, low-pressure protection control status, overheating protection control status, freezing protection control status. Recording period: Approx. 1 year and 6 months Recording interval : 2 minute intervals Export method: USB memory, Socket communication |
| Functions | Graph display, operation status display, error history display, operation time display, calendar, memo, water temperature error setting, operation timer setting, password setting, key lock, exporting log data via USB flash drive, external temperature sensor input, cascade control, external synchronized control |
*1 Values when ambient temperature is 25℃, circulating water temperature is 20℃, circulating water is at rated flow rate, and circulating water is clean water.
*2 When using clean water, be sure to use water that meets the water quality standards of the Japan Refrigeration and Air Conditioning Industry Association (JRA-GL 02:1994). The electrical conductivity should be at least 1μS/cm (higher conductivity indicates lower purity; Example: 100μS/cm). Use of circulating water that does not meet the specifications may result in poor chiller performance and premature failure.
*3 Based on chiller temperature gauge readings when load is constant, ambient temperature is 25℃, circulating water temperature is 20℃, and circulating water is at rated flow rate.
*4 An external temperature sensor (Pt100) is not included. Please prepare one yourself.
*5 Excluding protrusions.
*6 Use a power supply voltage within ±10% of the rated voltage.
*7 Values measured at 1m from the front of the device and at a height that comes to the center of the device, and at no load stability.
*8 When an error occurs, recorded at 5-second intervals from approximately 1minute before the error occurrence.

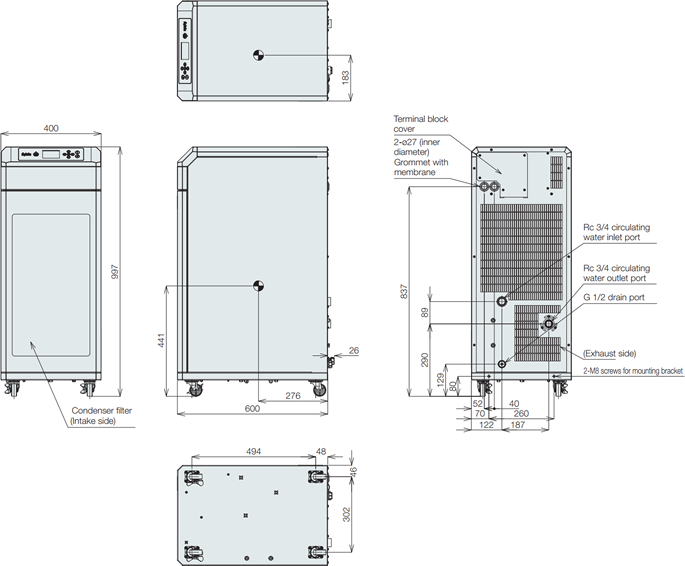

External dimensions
■Piping port sizes
Circulating water inlet port : Rc 3/4, [Tightening torque (recommended)] 50 N·m
Circulating water outlet port : Rc 3/4, [Tightening torque (recommended)] 50 N·m

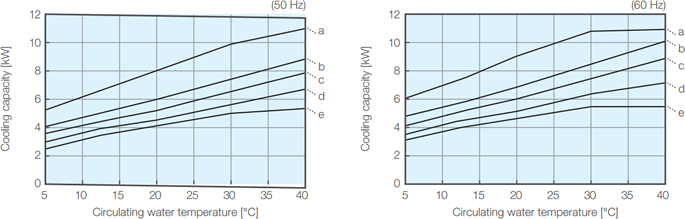

Cooling capacity characteristic charts
[Ambient temperature] a: 5℃, b: 25℃, c: 32℃, d: 40℃, e: 45℃

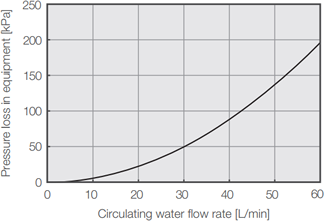

Pressure loss characteristic charts
