Enclosure Cooling Unit (refrigerant)
ENC-AR1010HD
| Cooling capacity(W)*1 | 900／1000 |
|---|---|
| Rated voltage(V) | Single-phase 100V AC |
| Mounting Type | Side-mounting |
| External Dimensions(mm) | H730×W300×D280 |
| Weight(kg) | 26 |
Inquiry
Download
ENC-AR1010HD Product details
Specifications
See specification in the catalogue(50/60Hz)
| Mounting Type | Side-mounting |
|---|---|
| Cooling capacity(W)*1 | 900／1000 |
| Setting temperature range (℃) | 25～45 |
| Ambient temperature(℃) | -5～50 |
| Ambient humidity(%RH) | 10～85 (No condensation) |
| External Dimensions(mm) | H730×W300×D280 |
| Weight(kg) | 26 |
| Surface Finish | NSSC 180-HL No.4 finish |
| Rated voltage(V) | Single-phase 100V AC |
| current consumption: rating (A) * | 5.6／4.6 |
| Current consumption *3 : Max(A) *5 | 6.5／6.3 |
| Starting current (A) | 15.6／14.7 |
| power consumption: rating (W) * | 440／450 |
| Power consumption *3 : Max(W) *5 | 595／615 |
| Vibration resistance | Equivalent to JIS Z 0200 Level1 |
| Dust and water proof protection rating | Equivalent to IP54 (internal circulation route) |
| Certification | |
| refrigerant types | R134a |
| refrigerant filling amount (g) | 255 |
| Noise (dB(A)) | 約64／66 |
| External output | alarm output (non-voltage a contact: 250V 2A resistive load) |
| Display | Internal temperature/error display LED, RUN LED |
Note)
cooling capacity: rating capacity value when outside temperature is 35°C and internal temperature is set to 35°C. (Measurement conditions: JIS-C-9612 air enthalpy method)
Use Area Temperature and humidity conditions for use area Humidity are not guaranteed to be met.
rating: Value when Use Area Temperature 35°C and use area Humidity 40% RH.
MAX value: The value when Use Area Temperature is the maximum allowable ambient temperature and use area Humidity is 40% RH.
Use Area Temperature: If the outside temperature is below 0°C, set the temperature inside the panel to 30°C or higher.
- Use power-supply voltage within ±10% of rated voltage.
- Be sure to read the instruction manual carefully before use and use it correctly.

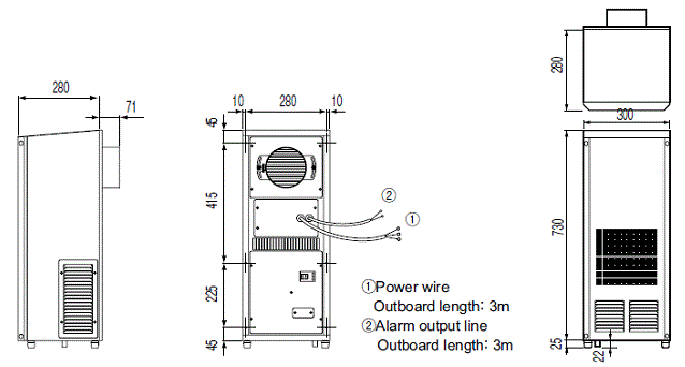

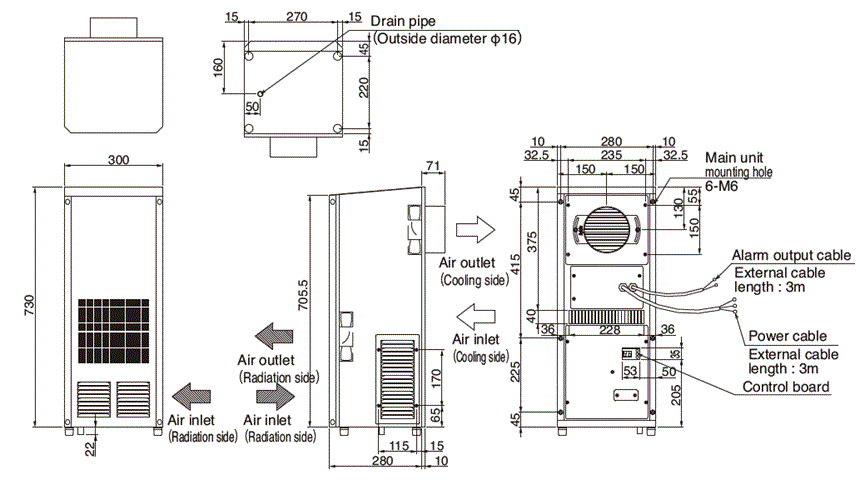

External dimensions

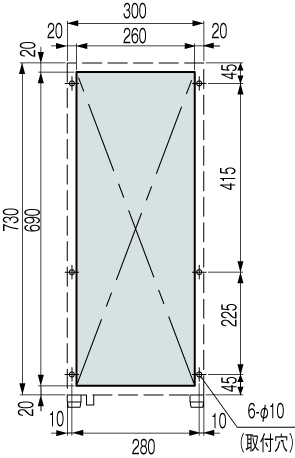

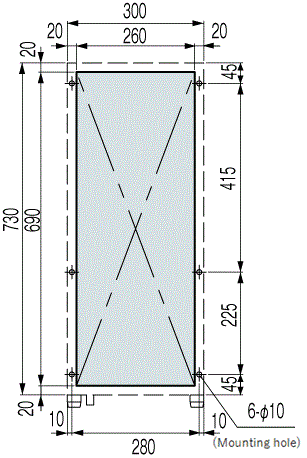

Diagram of Panel Cutout

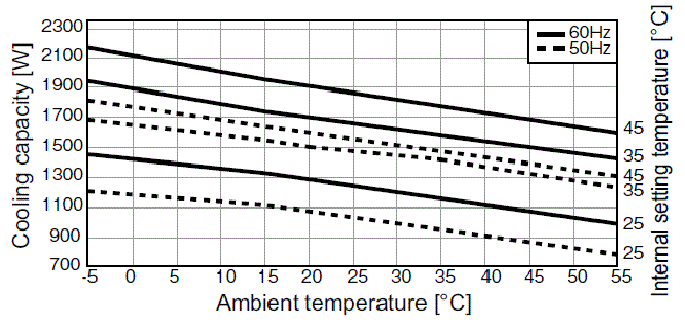

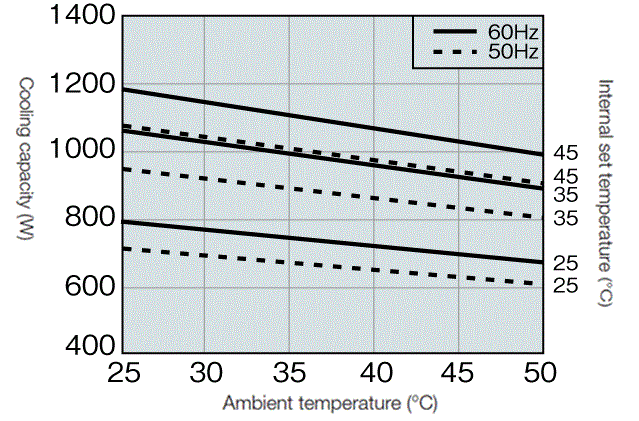

Capacity characteristics graph
*Contact our sales representative if you are using the control panel cooler in an environment close to the permissible ambient temperature upper limit.
【Note】
Please read the instruction manual before use and use the product correctly.
◯Products will be delivered to the vehicle (at designated locations within Japan, excluding remote islands).
Depending on model and number of units, a separate charter service (additional fees apply) may be required.
◯For overseas deliveries, we recommend using separate overseas packaging.
Please check specification of Enclosure Cooling Unit and install an appropriate circuit breaker (wiring breaker) between Enclosure Cooling Unit and power supply.
Using the device outside of rating power supply range may cause malfunctions.
Please perform regular maintenance.
Neglecting regular maintenance can lead to product performance degradation and malfunctions.
◯During winter when outside temperatures are low, do not operate Enclosure Cooling Unit continuously.
When disposal of this product, please do so in accordance with all applicable laws and regulations.
