Mist collector Details GME-F2200-50
Mist collectors
GME-F2200-50
GME Series
- The motor is complied with IE3 which meets the standards in Japan.
- Please be sure to check in advance whether the product can be imported in each country.
| Airflow(m3/min) | 46 |
|---|---|
| Collecting efficiency* | 99.9 |
| External dimensions(mm) | H2165×W712×D610 |
| Weight(kg) | Approx. 190 |
Product Details for GME-F2200-50
Specifications
| Maximum air volume(m³/min) | 46 |
|---|---|
| Maximum static pressure (kPa) | 1.7 |
| Collecting efficiency(%) *1 | 99.9 |
| Operating temperature and humidity | 0 to 50℃, RH88% or less (Indoor specifi cation, No condensation） |
| Absorption gas temperature(℃) | 0～50 |
| Collection target *2 | Water-immiscible oil mist (Ignition point: Higher than 150℃) Water-soluble oil mist |
| Max. inlet density(mg/m3) | 50 |
| External dimensions(mm) *3 | H2165×W712×D610 |
| Suction port(mm) | Side suction φ198 |
| Weight(kg) | Approx. 190 |
| Coating color | Munsell 0.9PB 6.4/0.7 |
| Rated voltage(V) *4 | Three-phase AC200 |
| Installed motor output | 2.2kW 2P (Fully closed Outer door type) |
| Installed motor IE code | IE3 |
| Drain pipe(mm) | Rc1 1/2 inch socket |
| Noise(dB[A]) | Approx. 71 ± 2 |
*1 Particle ratio by particle counter (5μm or more)
*2 Do not allow the mist collector to absorb fast congealing gel oil mist or oil mist that includes a signifi cant amount of cast metal chips generated by cutting or grinding. Such use can result in the mist collector requiring more frequent maintenance.
*3 Excluding protrusions.
*4 For each 50 / 60Hz.
*5 Supply power from a circuit equipped wit h a protective device for machine tools and power supply equipment.
*6 Use below the rated current value of the motor.

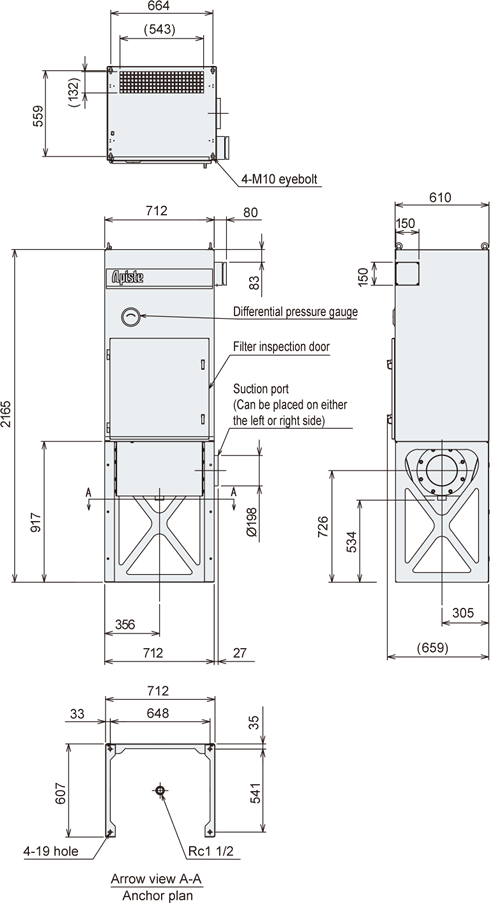

External dimensions
Equipment synchronizing specifications

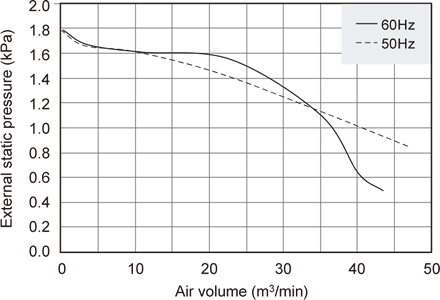

Capacity characteristic chart
