HFC alternative HFC alternative Lightweight control panel cooling unit
ENC-ER500L-MT
| Cooling capacity(W)*1 | 400／450 |
|---|---|
| Rated voltage(V) | Single-phase 200 to 240V AC |
| Mounting Type | Side-mounting |
| External Dimensions(mm) | H450×W350×D188 |
| Weight(kg) | 約13 |
ENC-ER500L-MT Product Details
Specifications
See specification in the catalogue(50/60Hz)
| Mounting Type | Side-mounting |
|---|---|
| Cooling capacity(W)*1 | 400／450 |
| Setting temperature range (℃) | 25～45 |
| Use Area Temperature (℃) *2 | 20 to 50 |
| use area Humidity (%RH) *2 | 10～85 (No condensation) |
| External Dimensions(mm) | H450×W350×D188 |
| Weight(kg) | 約13 |
| Coating Color | Munsell 5Y7/1 light beige equivalent |
| Rated voltage(V) | Single-phase 200 to 240V AC |
| current consumption: rating (A) *3 | 1.0／1.3 |
| Starting current (A) | 5.9／5.8 |
| power consumption: rating (W) *3 | 194／237 |
| Recommended breaker capacity (A) | 5 |
| Vibration resistance | JIS Z0200 Level 1 |
| Dustproof/waterproof protection rating *4 | Equivalent to IP54 (internal circulation route) |
| Refrigerant / Amount(g) | R1234yf 200g |
| Noise (dB(A)) | 約61／66 |
| External output | alarm output (No-voltage a-contact: AC250V 2A/DC30V 2A resistive load) |
| Display | Panel temperature/Error/RUN |
1 rating capacity values at an ambient temperature of 35°C, humidity of 40%RH, and power-supply voltage 200V.
(Test method: indoor side air enthalpy test method based on JIS B 8615-1)
2 Use Area Temperature / use area Humidity define the operating range and do not guarantee rating performance.
3 rating values at ambient temperature 35°C, humidity 40%RH, power-supply voltage 200V.
4 Excluding the drain port.

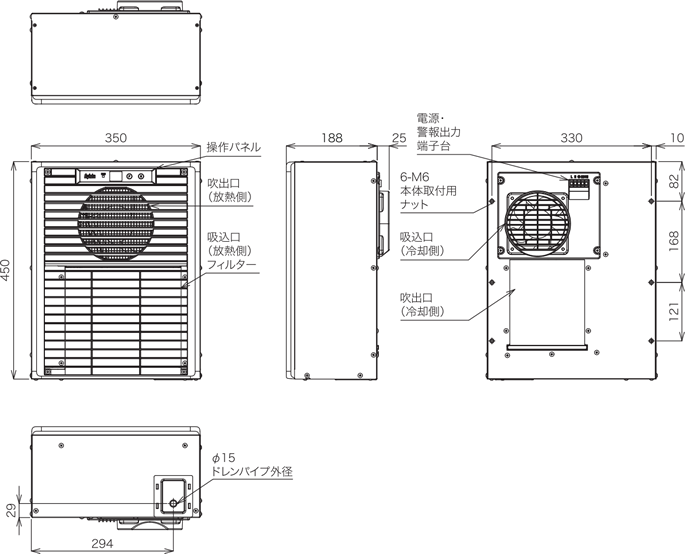

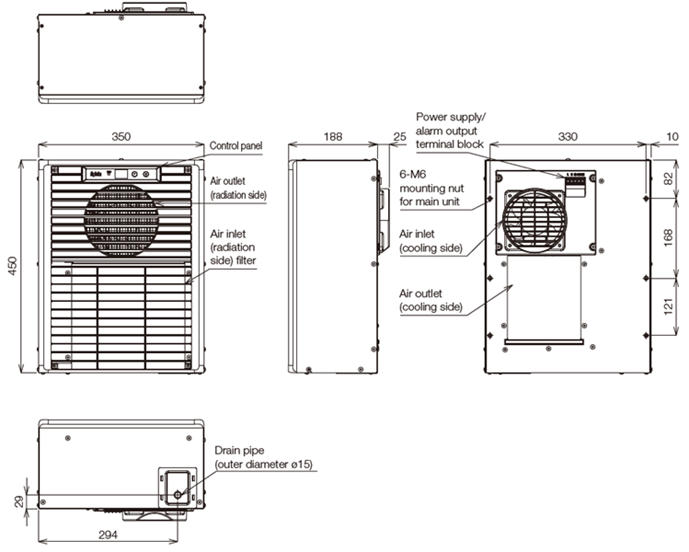

External dimensions

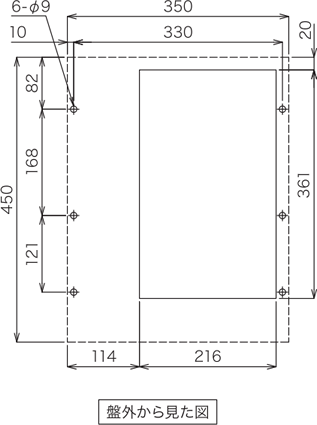

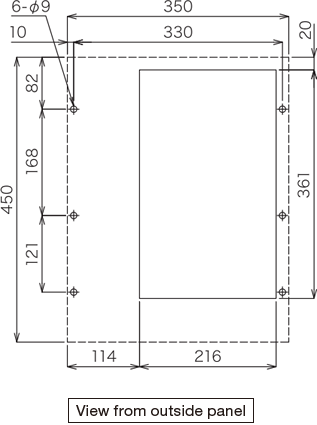

Diagram of Panel Cutout

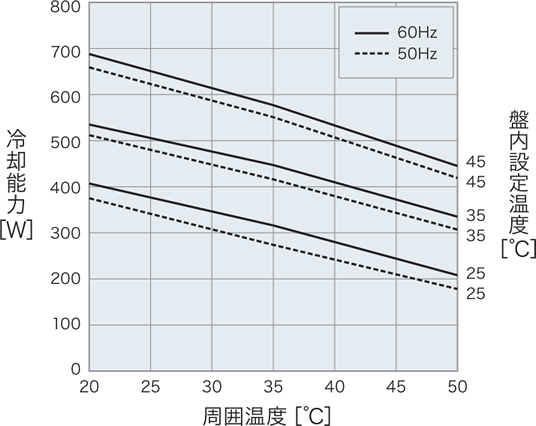

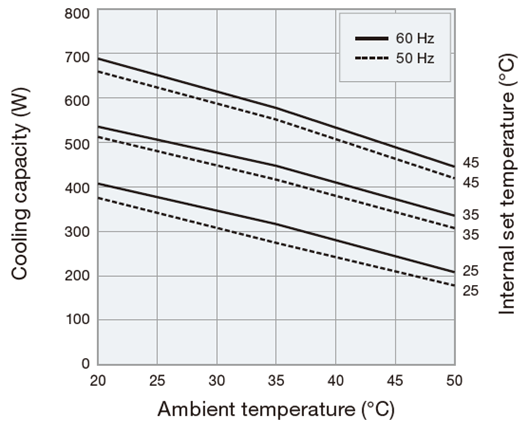

cooling capacity characteristic diagram
*Contact our sales representative if you are using the control panel cooler in an environment close to the permissible ambient temperature upper limit.
[Caution]
To ensure proper operation of this equipment, read the operation manual before use.
Depending on model and quantity, separate charter delivery may be arranged (additional costs apply).
Overseas at the time of delivery, we recommend packing for overseas separately.
Please check through the cooler between the FA and the power (circuit breakers) to the appropriate specification of the FA breaker cooler.
Cause of failure and be used at the rated power supply out of range.
Please use the service and maintenance on a regular basis.
Failure to maintain regular maintenance, you may be a factor in product performance degradation trouble.
When the outside temperature is low in winter, please do not let the FA cooler continuous operation.
When disposing of this product, you should comply with various laws and regulations, please go to the appropriate.
