Overview/Features
Peltier type HFC alternative heat countermeasures
And it's kind to the earth
AC power supply specification

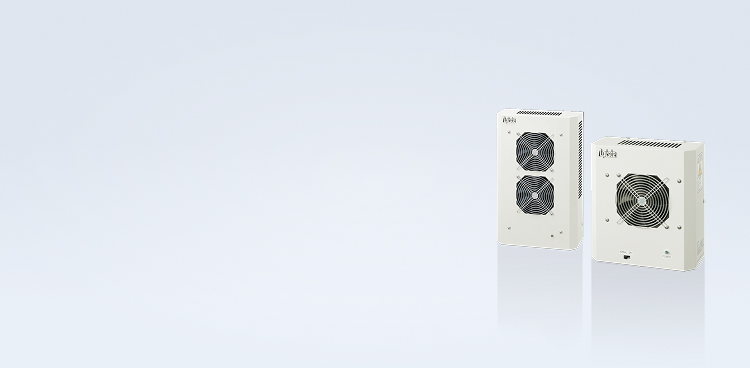

NRC series
Fully coated special Peltier element
Advanced structure that minimizes heat shock.
Due to its structure, Peltier elements have the problem of sudden performance degradation due to heat shock. Apiste has implemented surface treatment and special coating, which has made it possible to minimize heat shock and significantly improve reliability.
What is Peltier effect?
Peltier effect is based on the Seebeck effect, which was discovered by German scientist Seebeck in 1821 and is the effect that causes electric current to flow between metals due to a temperature difference.
In 1834, a Frenchman named Peltier discovered that when a direct current is passed between two dissimilar metals, a heat-absorbing or heat-generating surface is created, and that reversing the flow of the current reverses this phenomenon. This phenomenon is called the "Peltier effect."
Recently, the Peltier effect has also come to be used in car cooling and heat-retaining boxes, cooling computer CPUs, etc. Unlike air conditioning systems that use refrigerant such as chlorofluorocarbons, it is said to be an environment friendly cooling method that does not contribute to ozone depletion or global warming.
HFC alternative cooling
It does not contribute to ozone depletion or global warming.
Using a semiconductor cooling element, this cooling panel HFC alternative only protects control equipment from heat but is also environment friendly.
VCCI Class A (radio wave regulation) compliant
It has a noiseless design that is gentle on electronic devices.
Compliant with strict radio wave regulations (VCCI Class A). Safely designed for use with various electronic devices used in manufacturing equipment. Safe to use near NC equipment, precision equipment, computers, etc.
AC100V to 240V, free power supply
Normally, electronic cooler are powered by DC power supply, so a separate power supply unit is required. The NRC series is available in an AC free power supply type, allowing you to freely select the type that best suits your environment.
AC power supply specification
| Model | Cooling capacity (W) |
Rated Voltage
(V) |
External Dimensions (H×W×D)
(mm) |
Weight (kg) |
|
|---|---|---|---|---|---|
| NRC-50AL | 45 | single-phase AC100 to 240 | H262×W234×D175 | 6.5 |
Product Catalog Instruction manual |
| NRC-100AL | 85 | single-phase AC100 to 240 | H395×W250×D175 | 9.5 |
Product Catalog Instruction manual |
