Overview/Features
Feel safe overseas
panel heat countermeasures can be implemented
Plate type, overseas specification
ENH series

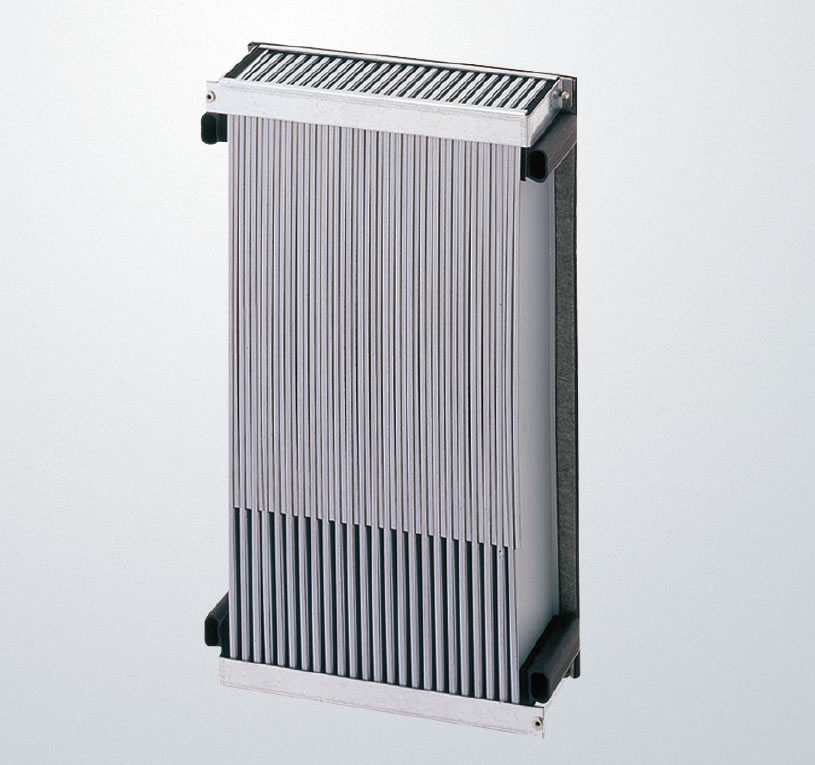

Plate type
"Next-generation heat dissipation module"
Highly efficient heat dissipation.
Next-generation heat dissipation module
Conventional plate-type heat dissipation fins have large folded sections, making it difficult to increase the size of the fins.
The EHN-P series uses a next-generation heat dissipation module with an improved folded section. By minimizing the fin pitch to just 3mm, we have achieved high efficiency, with the same heat dissipation capacity in a smaller area.
Plate type, overseas specification
| Model | Rating capacity (W/K) |
Rated Voltage
(V) |
External Dimensions (H×W×D)
(mm) |
Weight (kg) |
||
|---|---|---|---|---|---|---|
| ENH-P110L-200CE-N In-panel side mounting type |
Plate type | 10／12 | Single-phase 200V AC | H600×W180×D70 | 5.5 |
Product Catalog - Instruction manual |
| ENH-P120L-200CE-N In-panel side mounting type |
Plate type | 20／22 | Single-phase 200V AC | H600×W320×D70 | 10 |
Product Catalog - Instruction manual |
| ENH-P140L-200CE-N In-panel side mounting type |
Plate type | 35／43 | Single-phase 200V AC | H650×W380×D85 | 14 |
Product Catalog - Instruction manual |
