Overview/Features
The industry's largest air volume and
Achieving energy savings
高性能ミストコレクター
GME-S-ecoシリーズ

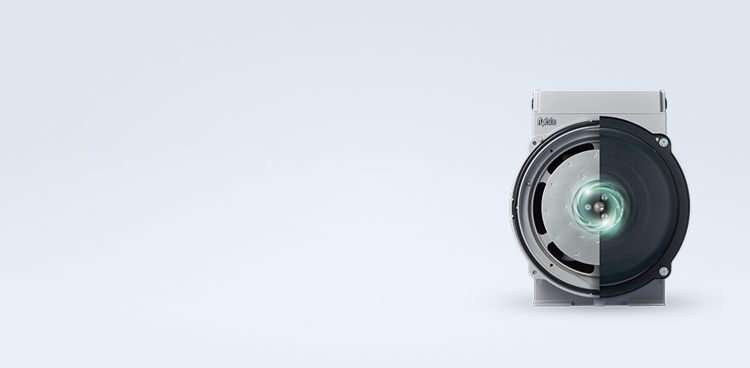

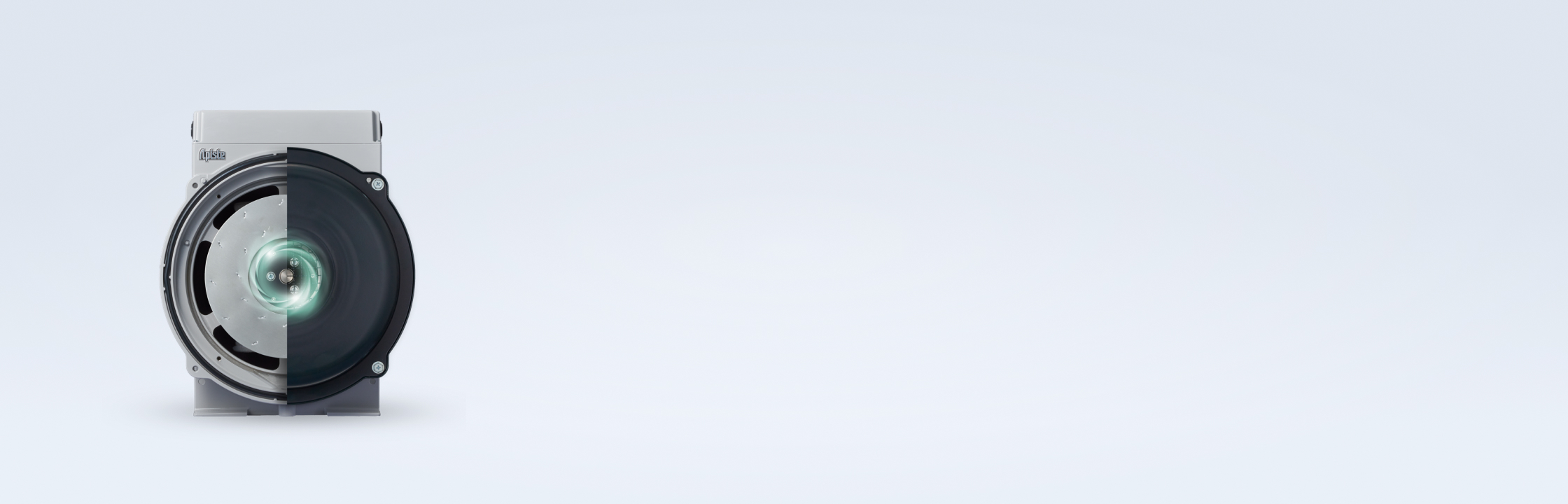

Energy-saving active cyclone & inverter control with the industry's best-in-class air volume
The industry’s best-in-class large air volume is achieved by a turbo fan placed at the very front, a strong active cyclone with a positive pressure, and a cylindrical body to get the most out of the cyclone.
In addition, an inverter controls the high-efficiency PM motor*, and allows you to save energy by selecting a motor speed from four levels ranging from 70% to 100% according to the required air volume.
* The 400W model is equipped with an induction motor.
> Please refer to the catalog for details.

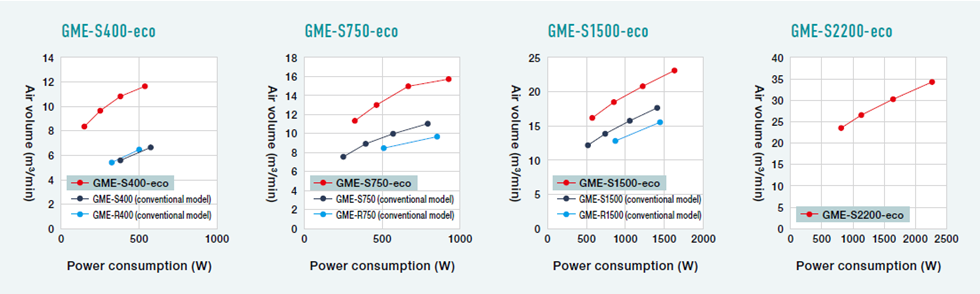

Energy-saving structure
Large air volume is achieved with even a small amount of power due to a streamlined body that has reduced loss from non-collection parts to the utmost limit.
> Please refer to the catalog for details.

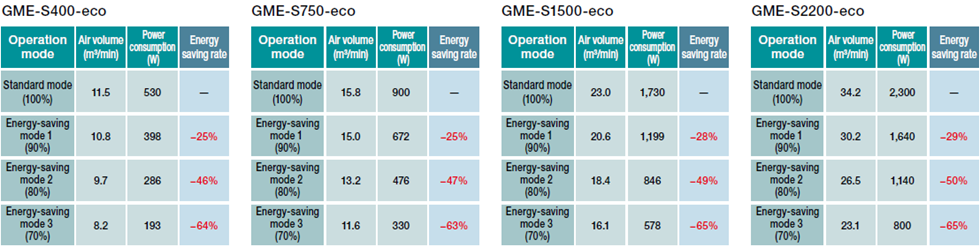

Energy saving by inverter control
The motor rotation speed can be selected as needed at 70%, 80%, 90%, or 100% to reduce power consumption.
> Please refer to the catalog for details.

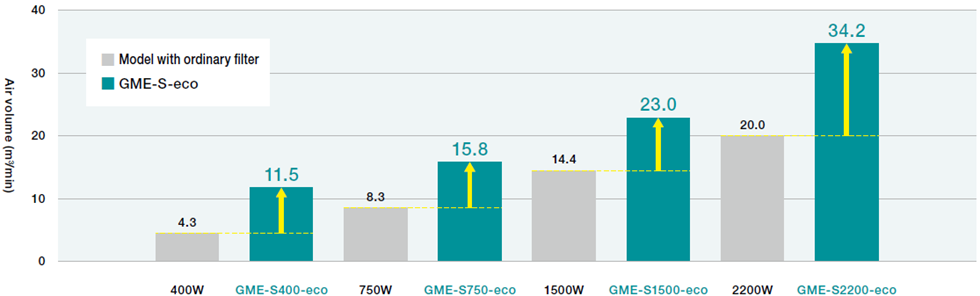

Reduced motor capacity for energy savings
Compared with models featuring ordinary filters*, a mist collector with a slightly smaller motor capacity can meet the required air volume, significantly reducing power consumption and initial costs.
* According to in-house research
> Please refer to the catalog for details.

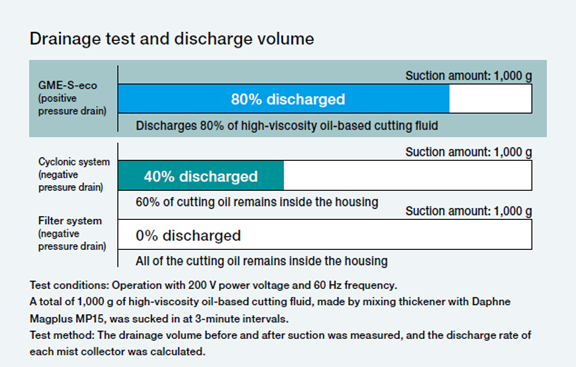

Positive pressure drain prevents internal dirt buildup
A strong positive wind flows in the drain port direction due to a structure with a turbo fan placed at the very front. The air flow smoothly discharges not just the oil mist separated by the active cyclonic system but also foreign matter such as cutting chips from the drain port to the outside.

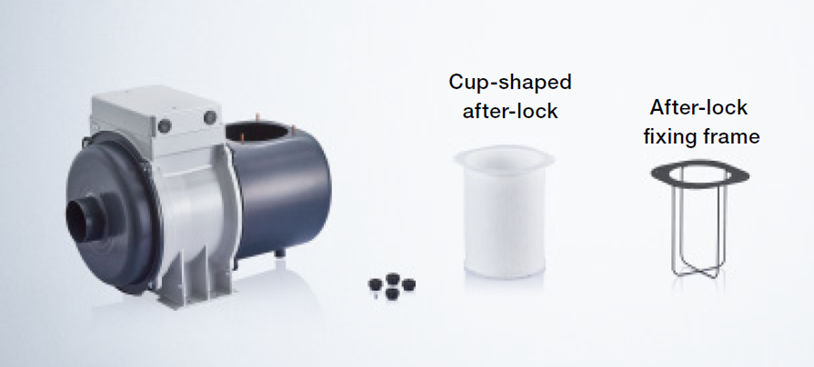

Easy-to-maintain and simple-to-use cup-shaped after-lock

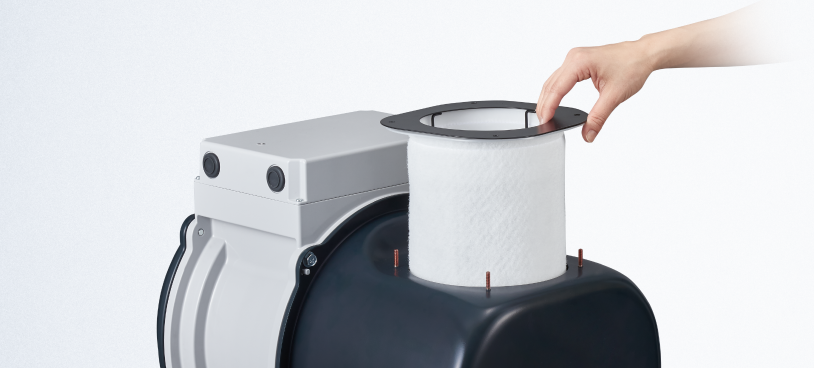

This product employs a simple mist collection system that performs separation with an active cyclone and agglomeration with a bell mouth, so the only periodic maintenance required is the replacement of the cup-shaped after-lock. The cup-shaped after-lock can be replaced easily by removing the UFO nuts and knob nuts, and it has a flange that serves as a grip at the top to prevent your hands from getting dirty.
> Please refer to the catalog for details.
High-performance mist collector
| Model | Onboard motor output (kW) |
Maximum air volume (m 3 /min) |
Collection efficiency * (%) |
External dimensions (HxWxD) (mm) |
Weight (kg) |
|
|---|---|---|---|---|---|---|
| GME-S400-eco | 0.4kW 2P (totally closed fan type) | 11.5 | 99 | H444×W368×D530 | about 23 |
Product Catalog Instruction manual |
| GME-S750-eco | 0.75kW 4P (totally closed fan type) | 15.8 | 99 | H484×W408×D539 | about 24 |
Product Catalog Instruction manual |
| GME-S1500-eco | 1.5kW 4P (totally closed fan type) | 23 | 99 | H544×W468×D574 | Approx. 31 |
Product Catalog Instruction manual |
| GME-S2200-eco | 2.2kW 4P (totally closed fan type) | 34.2 | 99 | H544×W468×D674 | about 35 |
Product Catalog Instruction manual |
