Overview/Features
No fluorocarbon management work required
HFC alternative Air-cooling type

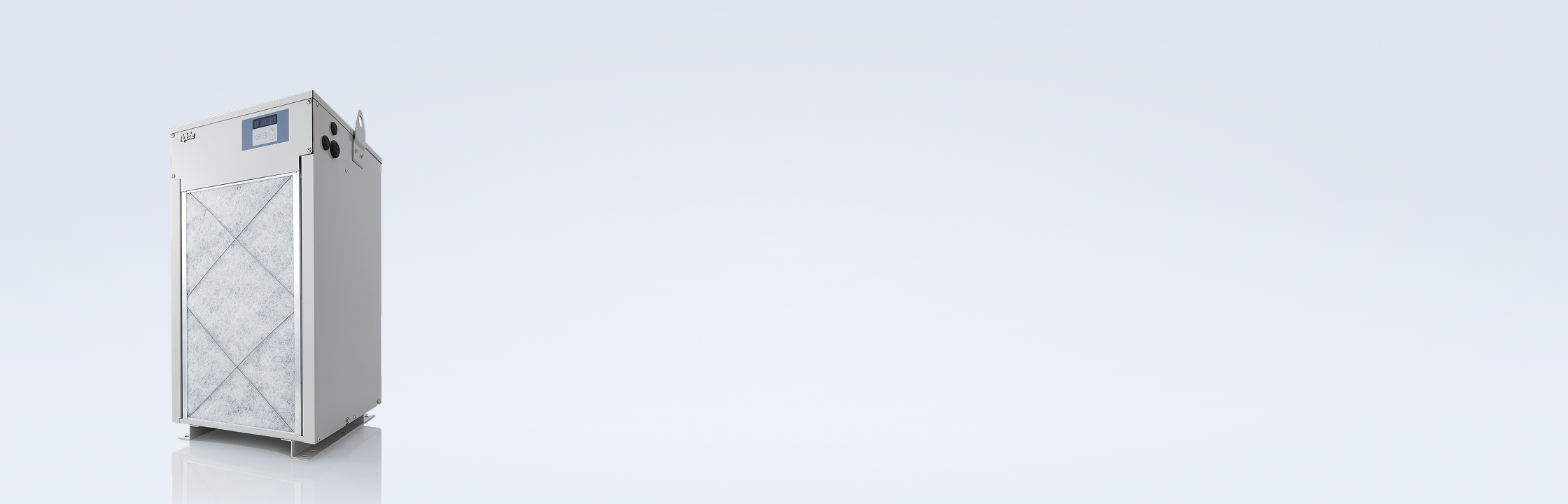

VSC-N series

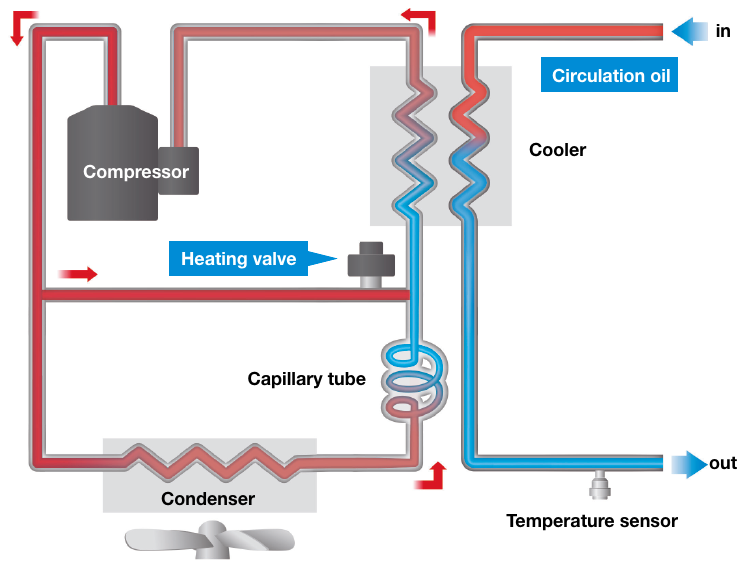

Hot gas bypass control with high stability of ±0.1℃
Equipped with hot gas bypass control using a heating valve. By varying cooling capacity according to the heat generation of the object to be cooled, it achieves high-stability oil temperature control of ±0.1°C, which was difficult with conventional oil chiller. specification allows it to be used safely for applications such as cooling the main spindle of machine tools, which require high control stability.
Not subject to the Fluorocarbons Emissions Control Law

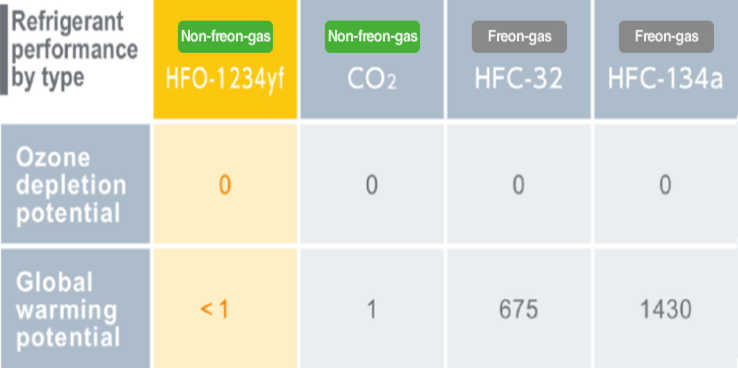

Based on the technology behind our industry-leading HFC alternative control panel cooling unit, we have made oil chiller used in the same factory automation (FA) sites HFC alternative. refrigerant refrigerant is R1234yf. Not only does ozone depletion potential of zero, but it also has a global global warming potential of less than 1, making it exempt from the Fluorocarbons Emissions Control Law. oil chiller is both environment and user-friendly.
Related Columns
Six new obligations imposed on fluorocarbon users under the Fluorocarbons Emissions Control Law, which came into effect in April 2015
- Installing the product in an appropriate location and maintaining the installation environment
- Regular 100% product inspections
- Record and store product maintenance history
- Appropriate measures to be taken in the event of a fluorocarbon leak
- Reporting of leakage amount (if it is 1000 CO2-t/year or more)
- Outsourcing the filling and recovery of fluorocarbons during equipment maintenance
> Please refer to the catalog for details.
About inspections
The Fluorocarbons Emission Reduction Law requires that oil chiller and control panel cooling unit that contain fluorocarbons be inspections at least once every three months.
> Please refer to the catalog for details.
About the maintenance record book
The Fluorocarbons Emission Reduction Act requires that the history of inspections, repairs, refrigerant filling and recovery, etc. for oil chiller and control panel cooling unit that contain fluorocarbons must be recorded and managed in a separate logbook for each piece of equipment.
> Please refer to the catalog for details.
[Not subject to the Fluorocarbons Emissions Control Law] Apiste product lineup
PCU-NE series
ENC-GR-Pro series
ENC-GR-eco series
VSC-N series
HFC alternative Air-cooling type
| Model | Use Area Temperature (℃) |
Cooling capacity (W) |
External Dimensions (H×W×D)
(mm) |
Weight (kg) |
|
|---|---|---|---|---|---|
| VSC-N1500 | 5～45 | 1350／1580 | H720×W360×D449 | 53 |
Product Catalog Instruction manual |
| VSC-N3200 | 5～45 | 2650／3050 | H755×W400×D450 | 58 |
Product Catalog Instruction manual |
| VSC-N6000 | 5～45 | 5200／6000 | H1100×W475×D495 | 95 |
Product Catalog Instruction manual |
