Overview/Features
-10 to 80°C
Cooling and heating in one unit
Precision chillers
PCU-R series

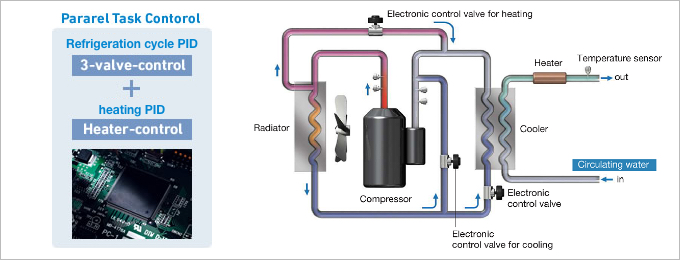

High Precision and High Stability

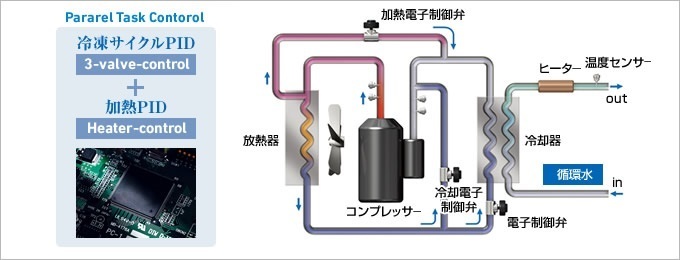

Newly developed freezing cycle "Triple valve control" and control algorithm "Parallel task control"
Equipped with Apiste's unique refrigerating cycle "Triple valve control" containing three electronic control valves. Always monitors refrigerant temperature, pressure, and circulating temperature. Newly developed algorithm "Parallel task control", based on information measured by various sensors, performs PID control of independent three electronic control valves and compact control heater in parallel and in high precision. Apiste's unique refrigerating technology, which varies cooling capacity in a wide range from 0 to 100% without stopping the compressor, has realized "ultra high precision" "high stability" "wide temperature control range" and "energy saving" which used to be difficult by conventional inverter control and hot gas control.
Three types of control mode
Operation pattern is selectable from three types of control mode in match with installation environment and versatile applications. Efficient and optimum performance can be fully demonstrated conforming to purpose of application. High-precision mode infinitely good in precision, eco mode in pursuit of energy efficiency, and normal mode with high stability are available.
> Please refer to the catalog for details.
[ Normal mode ]
Control mode putting emphasis on responsiveness and stability.
When control shifts either to cooling side or heating side, stability can be maintained by its following capability.
■ Energy-saving and high-response mode
Control mode putting emphasis on energy saving and responsiveness.
In cooling, operation at low power consumption is enabled without using a heater.
This mode is also effective when load fluctuation and disturbance are great.
■High stability mode
"Control mode effective when control of higher precision is required.
The true value is demonstrated in any temperature range from -10°C to 80°C."

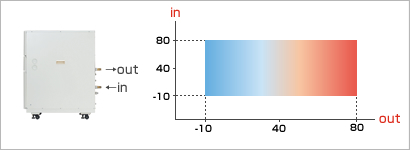

Wide range from -10 ℃ to 80 ℃
Temperature control range by Apiste's parallel task control is a wide range from -10°C to 80°C. Continuous operation is enabled in all ranges without stopping the compressor. There is no instability by ON/OFF control, and high stability and high precision are always realized in any temperature range.

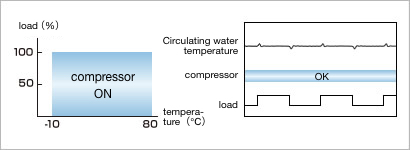

Resistant to high temperature circulating water return and load fluctuation
If the circulating water returning to the chiller unit becomes hot due to the load fluctuation of the equipment, the compressor may be turned off and the cooling function may not work in a general chiller. Apiste's parallel task control can control a sudden rise in circulating water without stopping the compressor.

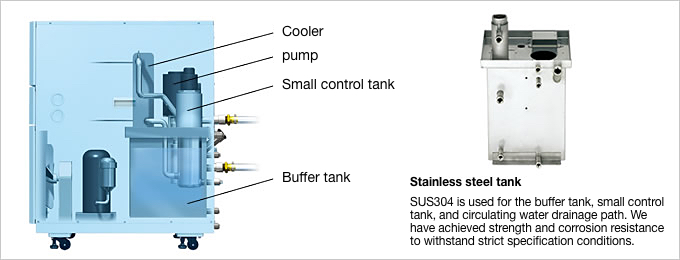

New structural design that pursues high reliability
> Please refer to the catalog for details.

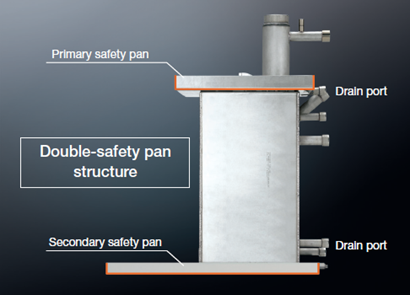

Bottom tank structure
All the parts along circulating water route are installed at the top of tank, which is a structural design unique to Apiste. We adhered to the development of the top installation which is ready for accidental leakage. Newly developed high performance pump pumps up circulating water in the tank to the top, and feeds reliably up to the equipment.

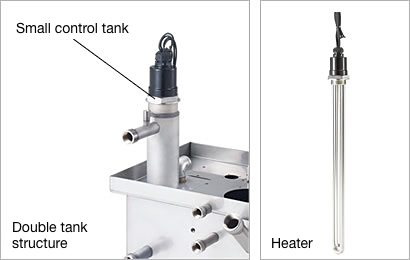

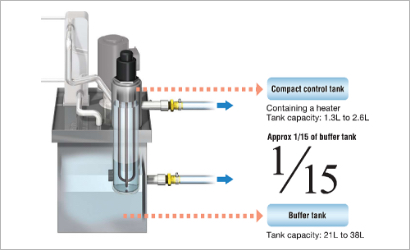

Double tank structure for energy saving and stability
The tank in chiller unit has a double-tank structure consisting of buffer tank and compact tank for control. Circulating water contained in buffer tank is pumped up and cooled by the cooler. Then it is sent to the compact tank for heating control. Heating control does not involve all circulating water in the tank, but only circulating water in the compact tank, which enables drastic energy saving. In addition, instability by irregular heating is eliminated, and high precision and stability are realized.

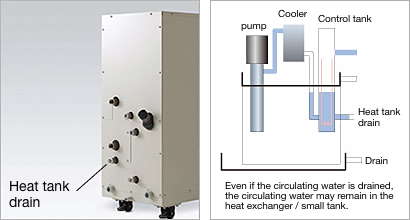

Cavitation preventing function
The phenomenon called "Cavitation" may occur in the maintenance of chiller unit. Even though circulating water is drained from the chiller unit, circulating water remains in the heat exchanger, heater tank, and equipment on load side, and bubbles remain in the circulating route when circulating water is fed again, and pressure from the pump is not transmitted. It is naturally impossible to send circulating water. All models of PCU Series are equipped with heater tank drain port for draining this residual water. It is a safety function when feeding water again after drained circulating water.

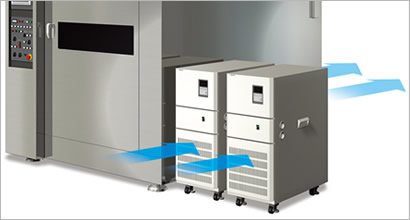

ワンウェイ排気構造（空冷タイプ）
The air-cooling type is designed so that the intake / exhaust paths for heat exchange are in the front and back of the main unit. Unlike the case where the intake and exhaust ports are on the side of the main unit, it is also possible to arrange multiple units closely. This saves space.

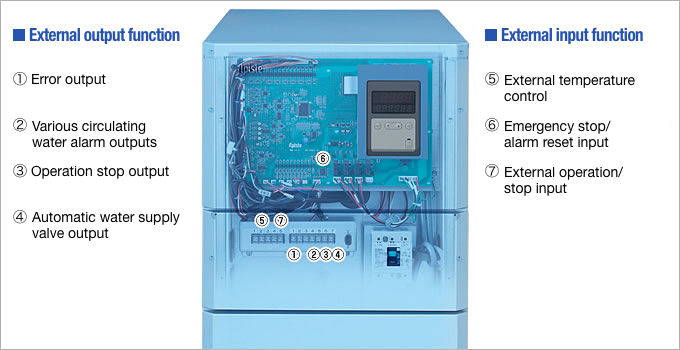

Abundant external input / output functions
"Equipped with various external input / output functions as standard to support various external devices and equipment.
It can be used for all purposes without adding new functions."
1. Error output
Equipped with non-voltage contact output with maximum load current of AC250V 2A. It can be output to the outside when an alarm occurs. Not only can you communicate with the PLC, but you can also control patrol lamps and buzzers.

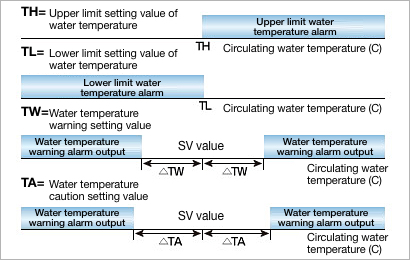

2. Various circulated water alarm output
I would like to pay close attention to the temperature control of circulating water. In the PCU series, warning values and caution values can be set in addition to the temperature upper and lower limit settings. Detects the temperature change of circulating water and reliably outputs it to the outside. Realizes complete temperature control of circulated water.
3.Operation stop output
Check the operation / stop of the chiller. It can be used as a confirmation signal when controlling the operation of the chiller from the outside, and it can also be notified by a lamp of the operating status of the chiller.
> Please refer to the catalog for details.

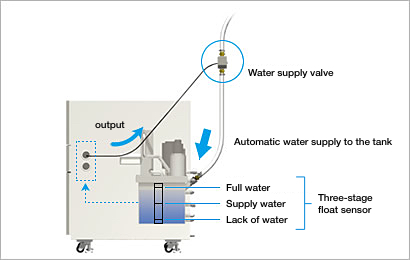

4. Automatic water supply valve output
Equipped with an output for a water supply valve that can automatically supply water to the chiller body. It is possible to save the trouble of supplying circulating water. The three-stage float sensor installed in the chiller unit tank detects full water, water supply, and water shortage, and outputs to the external water supply valve when water is supplied. The water supply valve can be turned ON / OFF, and automatic water supply is possible easily.

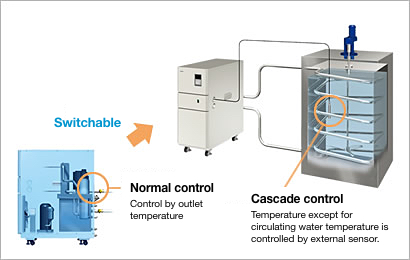

5.External temperature control
Equipped with an external temperature control input terminal as standard. Normally, the circulating water temperature is measured at the circulating water outlet in the chiller body, but the temperature can be controlled by an external sensor by switching. It supports primary PID control by the circulating water temperature of the work and cascade control by the temperature of the related parts of the work.

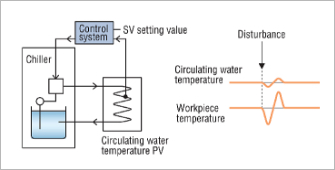

Primary PID control
The chiller unit is controlled to keep the temperature of circulating water near the work constant. The temperature of the circulating water is controlled directly to provide a stable control system, but the response to the disturbance is slow and the corrective action is limited.

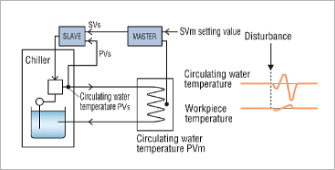

Cascade control
In cascade control, the temperature of the object (PVm) is compared with the set temperature of the object (SVm), and the set temperature of the circulating water (SVs) is determined. Therefore, the temperature fluctuation due to disturbance is controlled quickly.
6. Emergency stop / alarm reset input
Equipped with an emergency stop input just in case. The chiller can be forcibly stopped by an external signal. It is possible to link the water leak sensor installed separately and the emergency stop button installed on the controlled device. E-99 is displayed at the time of emergency stop input and can be confirmed as a history. It can also be used by switching to the alarm reset input if necessary.
> Please refer to the catalog for details.

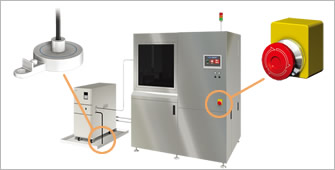

Emergency stop input from external devices such as leak detection sensor, emergency stop button, etc.

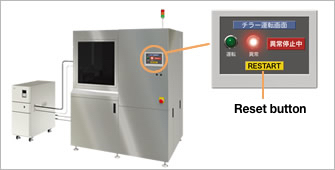

Emergency stop input can be switched to alarm reset input

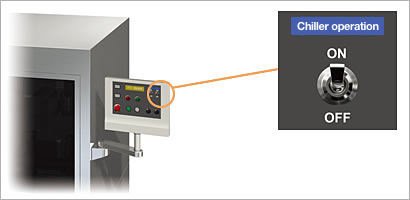

7.External operation / stop input
Equipped with an external control input terminal that can be used to start and stop the PCU body from an external device. Since it has a dedicated circuit, it can be operated from the outside simply by preparing the contact signal. When used in combination with the operation / stop output, a higher and more reliable external control can be realized.

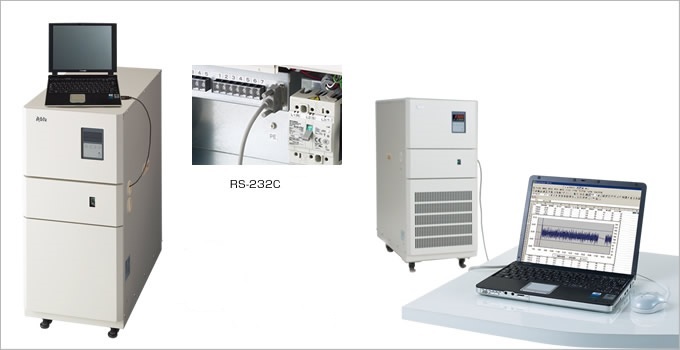

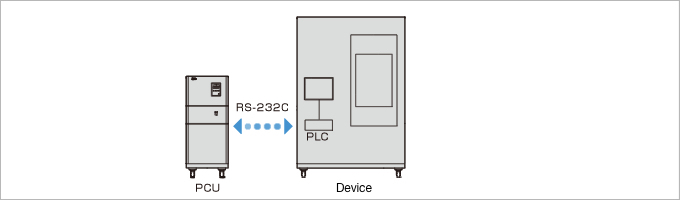

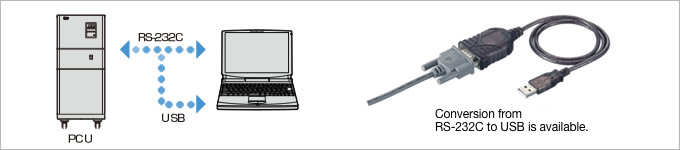

Supports data communication with PLC
Equipped with RS-232C as standard, which allows remote control and error code identification from the equipment.

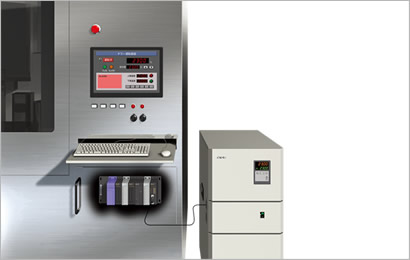

External remote control / error code identification
Change the control settings and output settings from the device side. The settings can be changed according to the situation at the site, enabling optimal control. It is also possible to identify up to 31 error codes that the PCU unit has.
[ List of communication items ]
| Control Settings | Timer/Output Settings | Initial Setup | Communication Settings | cascade control Settings |
|---|---|---|---|---|
| name | name | name | name | name |
| Control Setting Mode | Alarm settings | Digital filter | communication speed | Control Type |
| Control mode setting | Water temperature upper limit alarm | Number of digits display | Data length | Cascade scaling limit setting |
| AT startup screen | Water temperature warning alarm | Key lock settings | Key lock settings | Cascade scaling lower limit setting |
| Proportional band (P) | Water temperature low limit alarm | Standby mode presence or absence |
Stop bit length | Secondary side auto tuning setting |
| Integral time (I) | Water temperature warning alarm | Password Settings | BCC check function | Secondary side P value setting |
| Differential time (D) | Water temperature low limit alarm | Operation signal enable/disable | Communication Address | Secondary side I value setting |
| Control water temperature (set value) | Delay Time | External Temperature Input | Response Delay Time | Secondary side D value setting |
| Water supply valve/ Operation output setting |
Anti-freeze operation | Secondary side digital filter settings | ||
| ON timer | Main Expansion Valve Initialization Interval |
Secondary side bias compensation | ||
| OFF timer | Secondary side gain correction |
[ List of communication items ]
| Operation mode | Error History | Custom Settings | For communication only Parameters |
||
|---|---|---|---|---|---|
| name | name | name | name | name | name |
| Error display | Compressor high pressure | Thermal Expansion Valve | Error history this time | Emergency Stop/Alarm Reset Input Settings |
PV value input |
| Control water temperature (during measurement) |
Compressor high pressure | High Pressure Switch | Error history 1st time | circulating water flow rate Alarm settings |
Alarm Reset |
| external temperature | Pump operating time | Compressor protection thermostat |
Error history 2nd time | bias correction | Run/Stop |
| Controlled Water Pressure | Compressor discharge temperature | For full water Float Switch |
Error history 3rd time | Gain Correction | Checking the operating status |
| cooling water temperature | Compressor suction temperature | For water supply Float Switch |
Auto/ Manual Settings |
Main Valve Initialize |
|
| For heating PID output | Heater overheat prevention temperature | For lack of water Float Switch |
PV value communication Timeout Settings |
||
| Cooling PID Output | Main Expansion Valve | Emergency stop input | Fixed heater value setting | ||
| Heater Current Value | Cooling Expansion Valve | ||||
Precision chillers
| Model | Cooling capacity (W) |
heating capacity (W) * |
Circulating water temperature range (℃) |
Temperature Control stability (℃) |
External dimensions (HxWxD) (mm) |
||
|---|---|---|---|---|---|---|---|
| Air-cooling type PCU-1610R |
wide range | 1200／1300 | 700 | -10～80 | ±0.05 (high stability mode) | 950×400×770 |
Product Catalog Instruction manual |
| Air-cooling type PCU-3310R |
wide range | 2800／3100 | 1000 | -10～80 | ±0.05 (high stability mode) | 1000×440×800 |
Product Catalog Instruction manual |
| Air-cooling type PCU-6320R |
wide range | 5800／6200 | 6000 | -10～80 | ±0.10 (high stability mode) | 1250×440×800 |
Product Catalog Instruction manual |
| Air-cooling type PCU-6330R |
wide range | 5700／6100 | 6000 | -10～80 | ±0.10 (high stability mode) | 1250×440×800 |
Product Catalog Instruction manual |
| Water-cooling type PCU-W3610R |
wide range | 3100／3400 | 1000 | -10～80 | ±0.05 (high stability mode) | 1000×440×800 |
Product Catalog Instruction manual |
| Water-cooling type PCU-W6630R |
wide range | 5900／6400 | 6000 | -10～80 | ±0.10 (high stability mode) | 1250×440×800 |
Product Catalog Instruction manual |
| Water-cooling type PCU-W9130R |
wide range | 7900／8900 | 6000 | -10～80 | ±0.10 (high stability mode) | 1250×440×800 |
Product Catalog Instruction manual |
* Heating capacity: Controlled heating
