Overview/Features
Lightweight and slim body for easy installation
ノンフロン軽量制御盤用クーラー
ENC-ER-MT series
Super lightweight and easy to install
It is lightweight and compact, weighing just 13 kg and measuring 188 mm deep, making it easy to install anywhere.
wide range power supply
wide range power supply of single-phase AC 200-240V means that you can use it with confidence when, for example, installing a copy line in Japan overseas or relocating equipment.

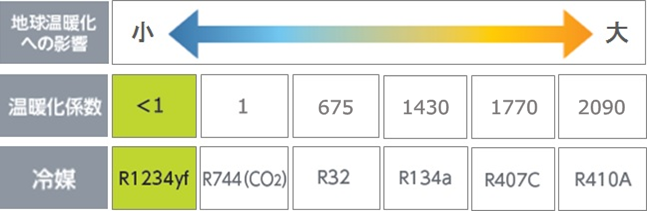

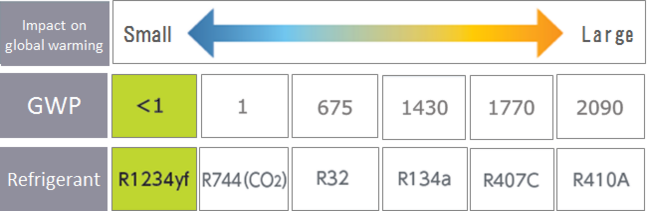

Non-freon-gas R1234yf refrigerant
Environmentally-friendly
refrigerant used is non-freon-gas refrigerant R1234yf. With global warming potential of less than 1, it is not subject to high GWP refrigerant regulations such as the American AIM Act, so you can use it with peace of mind.

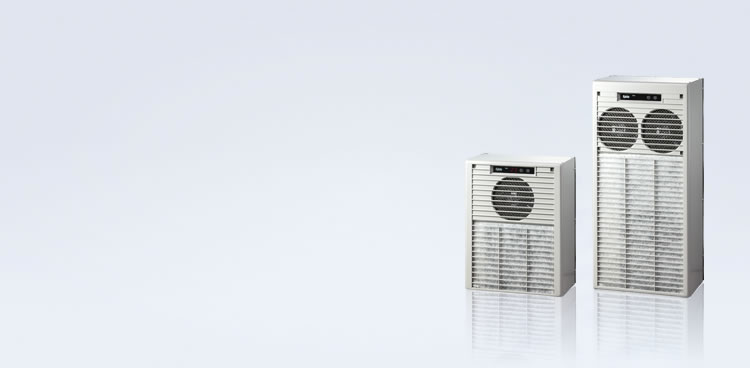

HFC alternative lightweight control panel cooling unit
Mounting position
| Model | Cooling capacity (W) |
Rated voltage
(V) |
External dimensions (H×W×D) (mm) |
Weight (kg) |
|
|---|---|---|---|---|---|
| ENC-ER500L-MT Side mounting type |
400／450 | Single-phase 200 to 240V AC | H450×W350×D188 | 約13 |
Catalog Manual |
| ENC-ER1000L-MT Side mounting type |
850／1000 | Single-phase 200 to 240V AC | H730×W350×D198 | 約20 |
Catalog Manual |
