Overview/Features

"Super heat conducting tube"
Ultra-high efficiency and compact size

ヒートパイプ式制御盤用熱交換器（盤内取付）　

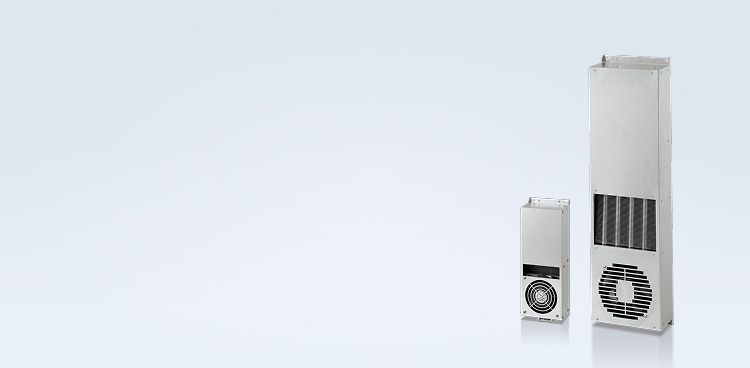

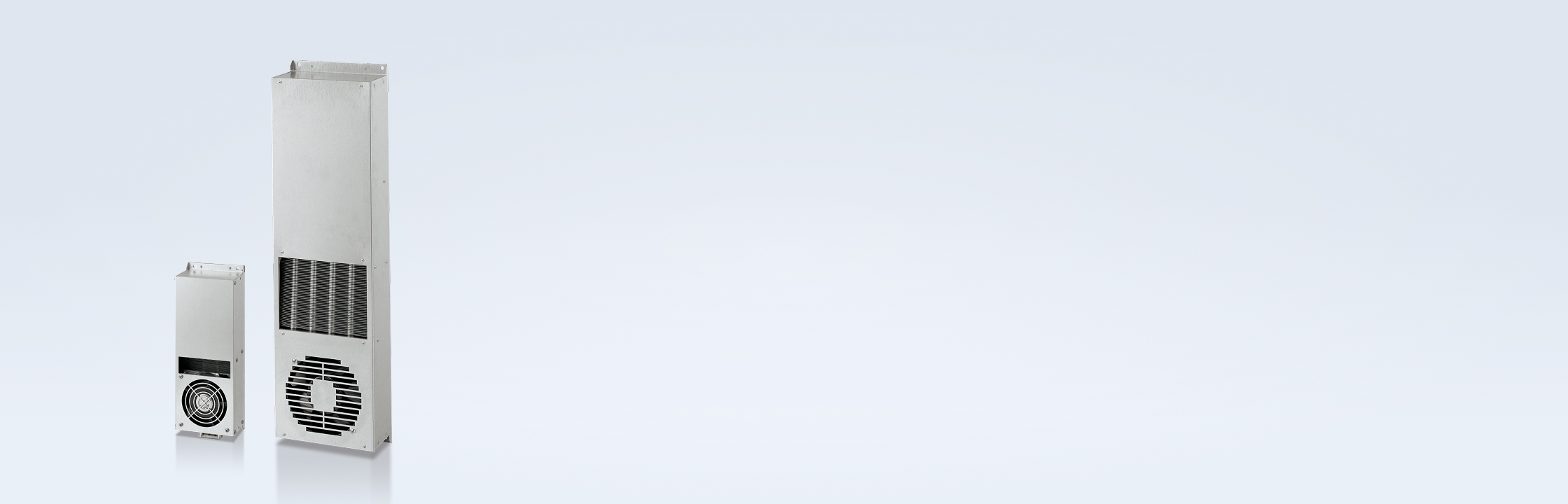

ENH series

Heat pipe type

"Super heat conducting tube"
Achieves ultra-high efficiency and compact size.

Super heat conducting tube = heat pipe

The heat pipe consists of a heat absorption part and a heat dissipation part, and the inside is in a vacuum state.
The inside of the device contains a working fluid of pure water, and heat exchange is carried out by utilizing the heat transfer caused by the evaporation and condensation of this pure water.

Compared to the plate type, it allows for more efficient heat exchange and is smaller, thinner, and lighter.

> Please refer to the catalog for details.

Comparison of thermal conductivity

ヒートパイプ式制御盤用熱交換器（盤内取付）

Model		Rating capacity (W/K)	Rated voltage (V)	External dimensions (H×W×D) (mm)	Weight (kg)
ENH-105L(R)-100 In-panel side mounting	Heat pipe type	7／8	Single-phase 100V AC	H289×W105×D70	1.5	Catalog Manual
ENH-105L(R)-200 In-panel side mounting	Heat pipe type	7／8	Single-phase 200V AC	H289×W105×D70	1.5	Catalog Manual
ENH-110L(R)-100 In-panel side mounting	Heat pipe type	10／12	Single-phase 100V AC	H344×W156×D70	3	Catalog Manual
ENH-110L(R)-200 In-panel side mounting	Heat pipe type	10／12	Single-phase 200V AC	H344×W156×D70	3	Catalog Manual
ENH-115S(R)-100 In-panel side mounting	Heat pipe type	15／18	Single-phase 100V AC	H680×W177×D45	4	Catalog Manual
ENH-115S(R)-200 In-panel side mounting	Heat pipe type	15／18	Single-phase 200V AC	H680×W177×D45	4	Catalog Manual
ENH-115L(R)-100 In-panel side mounting	Heat pipe type	15／18	Single-phase 100V AC	H426×W177×D70	4	Catalog Manual
ENH-115L(R)-200 In-panel side mounting	Heat pipe type	15／18	Single-phase 200V AC	H426×W177×D70	4	Catalog Manual
ENH-130L(R)-100 In-panel side mounting	Heat pipe type	30／35	Single-phase 100V AC	H710×W198×D100	6	Catalog Manual
ENH-130L(R)-200 In-panel side mounting	Heat pipe type	30／35	Single-phase 200V AC	H710×W198×D100	6	Catalog Manual
ENH-165L(R)-100 In-panel side mounting	Heat pipe type	65／78	Single-phase 100V AC	H655×W388×D90	13	Catalog Manual
ENH-165L(R)-200 In-panel side mounting	Heat pipe type	65／78	Single-phase 200V AC	H655×W388×D90	13	Catalog Manual
