ノンドレン制御盤用クーラー（ノンフロン）
ENC-GR500LE-eco
*For safety standards for the ENC-GR-eco series/SUS series, please contact our sales representatives.
| Cooling capacity(W)*1 | 500 |
|---|---|
| Rated voltage(V) | Single-phase 200 to 240V AC |
| Mounting Type | Side-mounting |
| External Dimensions(mm) | H500×W350×D250 |
| Weight(kg) | 21 |
Inquiry
Download
ENC-GR500LE-eco Product details
Specifications
See specification in the catalogue(50/60Hz)
| Mounting Type | Side-mounting |
|---|---|
| Cooling capacity(W)*1 | 500 |
| Setting temperature range (℃) | 25～45 |
| Ambient temperature(℃) | 20～55 |
| Ambient humidity(%RH) | 10～85 (No condensation) |
| External Dimensions(mm) | H500×W350×D250 |
| Weight(kg) | 21 |
| Coating Color | Munsell 5Y 7/1 Equivalent color of light beige |
| Rated voltage(V) | Single-phase 200 to 240V AC |
| current consumption: rating (A) * | 1.8／1.6 |
| Current consumption *3 : Max(A) *5 | 2.3／2.1 |
| power consumption: rating (W) * | 250 |
| Power consumption *3 : Max(W) *5 | 335 |
| Recommended breaker capacity (A) | 5 |
| Vibration resistance | Equivalent to JIS Z0200 Level1 |
| Dust and water proof protection rating | Equivalent to IP54 (internal circulation route) |
| Certification | CE / UL / CCC |
| refrigerant types | R1234yf |
| refrigerant filling amount (g) | 150 |
| Noise (dB(A)) | 約70 |
| External output | Alarm output (non-voltage a contact: 250V 2A resistive load) can be switched to non-voltage b contact by setting |
| Display | Panel temperature/Error/RUN |
* cooling capacity: Ambient temperature 35°C, humidity 40%RH, power-supply voltage values at 200V (100V models only) rating capacity values at 100V. (Measurement conditions: JIS B 8615-1 indoor side air enthalpy test method)
Use Area Temperature / use area Humidity define the operating range and do not guarantee rating performance.
* rating values: Ambient temperature 35°C, humidity 40%RH, power-supply voltage at 200V (100V models only) rating values at 100V.
*MAX value: The ambient temperature at the MAX value is specified respectively.
*Use power-supply voltage within ±10% of rated voltage.
current consumption and power consumption are the values in cooling operation.
*Dustproof and drip-proof protection grade: except drain pipe part
Please read the instruction manual carefully before use to ensure correct operation.
*Compared under the following conditions: ambient temperature 35°C, set temperature in the board 35°C, power supply frequency 60 Hz, load in the board 300 W,
The former model ENC-G520LE power consumption is 220W and ENC-GR500LE-eco is 162W, which is superior in productivity.

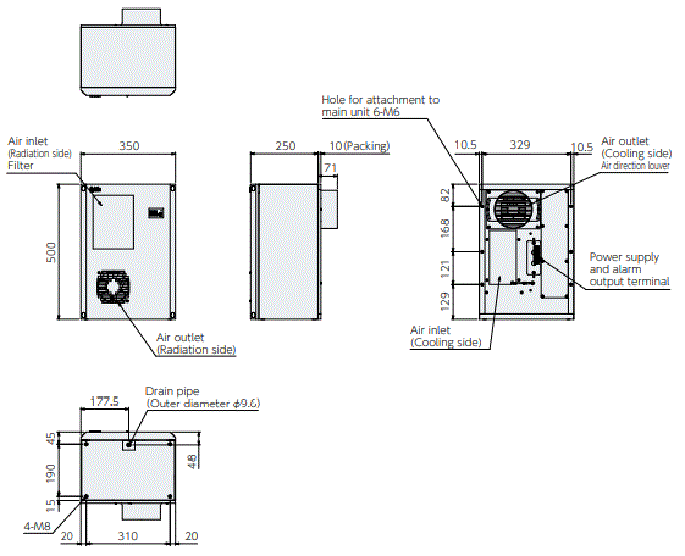

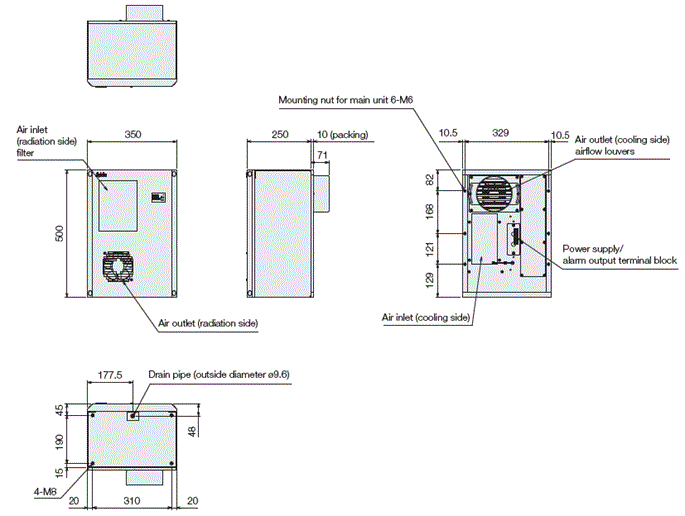

External dimensions

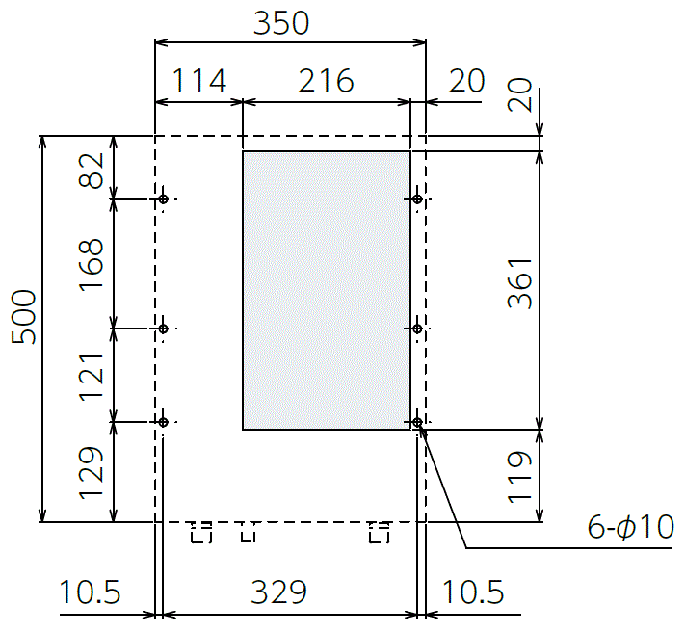

Diagram of Panel Cutout

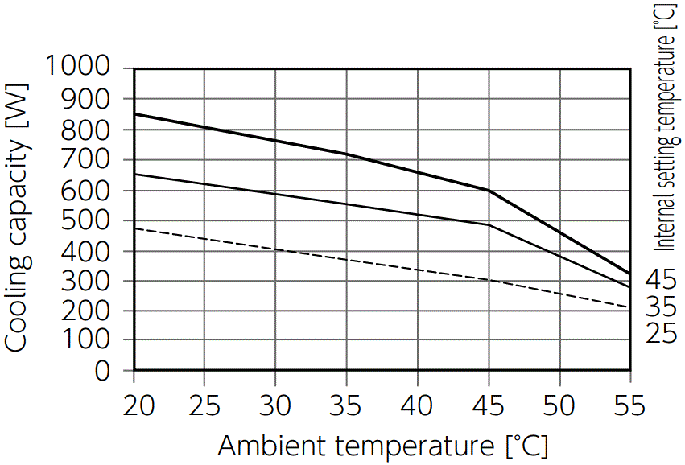

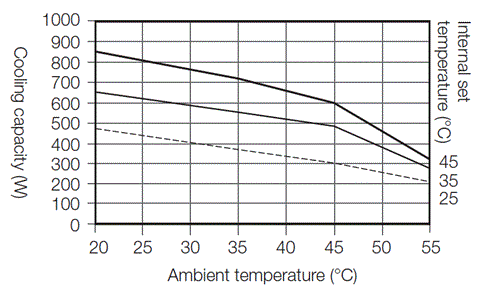

Capacity characteristic chart
*Contact our sales representative if you are using the control panel cooler in an environment close to the permissible ambient temperature upper limit.
【Note】
Please read the instruction manual before use and use the product correctly.
◯Products will be delivered to the vehicle (at designated locations within Japan, excluding remote islands).
Depending on model and number of units, a separate charter service (additional fees apply) may be required.
◯For overseas deliveries, we recommend using separate overseas packaging.
Please check specification of Enclosure Cooling Unit and install an appropriate circuit breaker (wiring breaker) between Enclosure Cooling Unit and power supply.
Using the device outside of rating power supply range may cause malfunctions.
Please perform regular maintenance.
Neglecting regular maintenance can lead to product performance degradation and malfunctions.
◯During winter when outside temperatures are low, do not operate Enclosure Cooling Unit continuously.
When disposal of this product, please do so in accordance with all applicable laws and regulations.
