ノンフロン ノンフロンフィルターレス制御盤用クーラー
ENC-GR2000L-Pro
| Cooling capacity(W)*1 | 2000 |
|---|---|
| power-supply voltage (V) | Single-phase 200 to 240V AC |
| Mounting Type | Side-mounting |
| External Dimensions(mm) | H1000×W450×D260 |
| Weight(kg) | 約41 |
ENC-GR2000L-Pro Product details
Specifications
See specification in the catalogue(50/60Hz)
| Mounting Type | Side-mounting |
|---|---|
| Cooling capacity(W)*1 | 2000 |
| Setting temperature range (℃) | 25～45 |
| Ambient temperature(℃) | 20～55 |
| Ambient humidity(%RH) | 10～85 (No condensation) |
| External Dimensions(mm) | H1000×W450×D260 |
| Weight(kg) | 約41 |
| Coating Color | Light beige equivalent color 5Y7/1 approx. |
| power-supply voltage (V) | Single-phase 200 to 240V AC |
| current consumption: rating (A) *3 | 6.2 |
| power consumption: rating (W) *3 | 1020 |
| Recommended breaker capacity (A) | 10 |
| Vibration resistance | JIS Z0200 Level 1 |
| Dust and water proof protection rating | Equivalent to IP54 (internal circulation route) |
| Certification | CE/ETL/CCC |
| Refrigerant / Amount(g) | R1234yf 750g |
| Noise (dB(A)) | 約75 |
| alarm output | Non-voltage a contact: AC250V 2A/DC30V 2A resistive load |
| Display | Panel temperature/Error/RUN |
* cooling capacity: rating capacity values at ambient/board temperature and humidity of 35°C/40%RH and power-supply voltage 200V.
(Test method: indoor side air enthalpy test method based on JIS B 8615-1)
*The operating ambient temperature and humidity range defines the operating range and does not guarantee rating performance
*Dustproof and drip-proof protection class: excluding drain port section
*Please read the instruction manual carefully before use to ensure proper operation.
*Compared under the following conditions: ambient temperature 35°C, set temperature inside the panel 35°C, power supply frequency 60Hz, load inside the panel 1100W,
The former model ENC-G2200L power consumption is 616W and the ENC-GR2000L-Pro is 465W, which is superior in productivity.

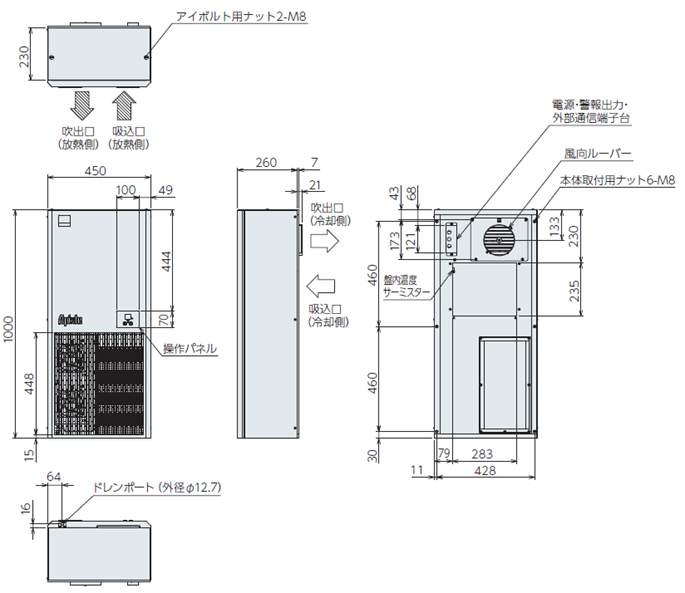

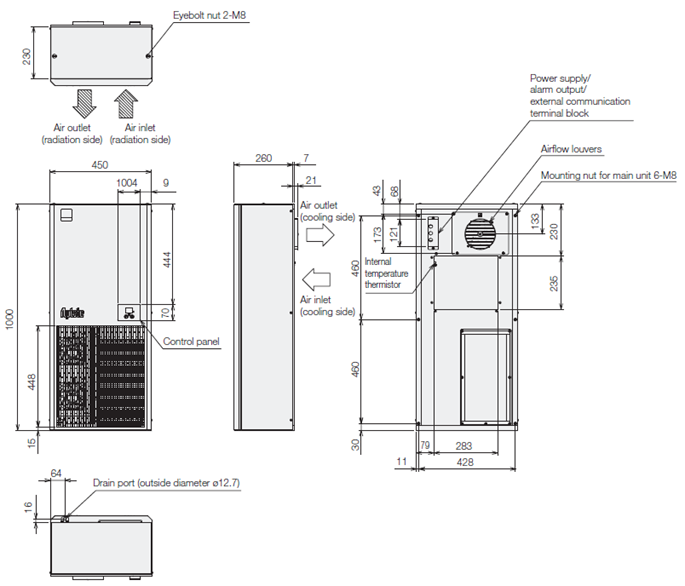

External dimensions

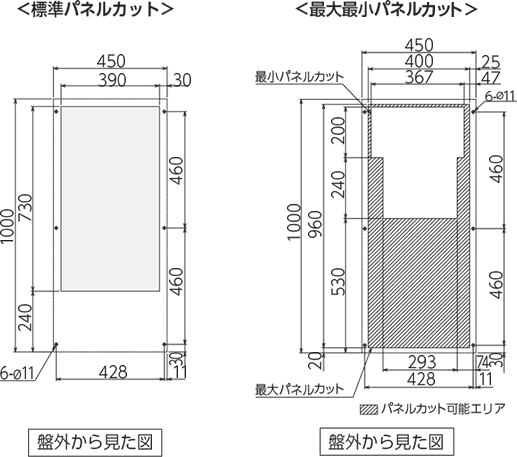

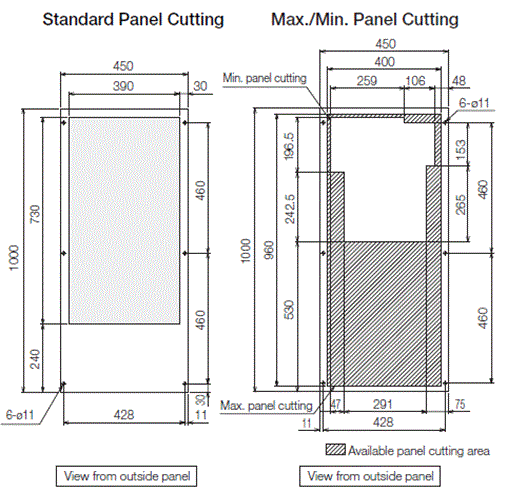

Diagram of Panel Cutout

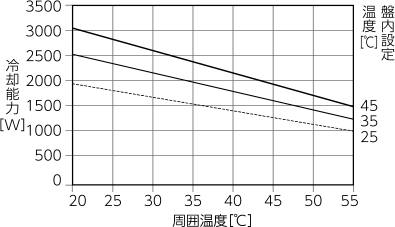

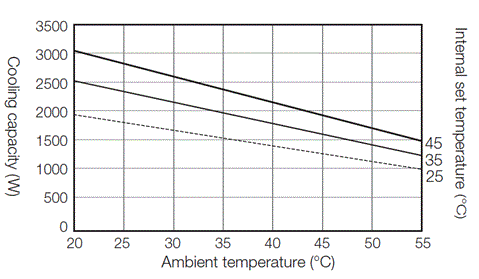

cooling capacity characteristic diagram
*Contact our sales representative if you are using the control panel cooler in an environment close to the permissible ambient temperature upper limit.
【注意】
◯ご使用になる前に取扱説明書をお読みのうえ正しくお使いください。
◯商品の納入は、車上渡しとなります。（国内指定場所、※離島除く）
◯型式・台数によって別途チャーター便扱い（別途費用）となります。
◯海外納入時には、別途海外向け梱包をお奨めします。
◯FAクーラーの仕様をご確認のうえ、適切なブレーカー（漏電遮断器）をFAクーラーと電源間に介してください。
◯定格電源範囲外でご使用されると故障の原因となります。
◯定期的に保守メンテナンスをしてください。
◯定期的な保守メンテナンスを怠ると、商品の性能劣化・トラブルの要因になることがあります。
◯冬期の低外気温時には、FAクーラーを連続運転させないでください。
◯本商品の廃棄の際は、各種法令を遵守し、適切に行ってください。
