Non-freon-gas Filter-less & Energy saving
ENC-GR500EX-Pro
| Cooling capacity(W)*1 | 600 |
|---|---|
| power-supply voltage (V) | Single-phase 200 to 240V AC |
| Mounting Type | Ceiling Mounting |
| External Dimensions(mm) | H348×W550×D270 |
| Weight(kg) | Approx. 21 |
Inquiry
Download
ENC-GR500EX-Pro Product details
Specifications
See specification in the catalogue(50/60Hz)
| Mounting Type | Ceiling Mounting |
|---|---|
| Cooling capacity(W)*1 | 600 |
| Setting temperature range (℃) | 25 to 45 |
| Ambient temperature(℃) | 20～55 |
| Ambient humidity(%RH) | 10～85 (No condensation) |
| External Dimensions(mm) | H348×W550×D270 |
| Weight(kg) | Approx. 21 |
| Coating Color | Light beige equivalent color 5Y7/1 approx. |
| power-supply voltage (V) | Single-phase 200 to 240V AC |
| Current consumption *3 : Rating(A) *4 | 2.1 |
| Power consumption *3 : Rating(W) *4 | 330 |
| Recommended breaker capacity (A) | 5 |
| Vibration resistance | JIS Z0200 Level 1 |
| Dust and water proof protection rating | Equivalent to IP54 (internal circulation route) |
| Certification | CE/ETL/CCC |
| Refrigerant / Amount(g) | R1234yf 230g |
| Noise (dB(A)) | about 65 |
| alarm output | Non-voltage a contact: AC250V 2A/DC30V 2A resistive load |
| Display | Panel temperature/Error/RUN |
* cooling capacity: rating capacity values at ambient/board temperature and humidity of 35°C/40%RH and power-supply voltage 200V.
(Test method: indoor side air enthalpy test method based on JIS B 8615-1)
*The operating ambient temperature and humidity range defines the operating range and does not guarantee rating performance
*Dustproof and drip-proof protection class: excluding drain port section
*Please read the instruction manual carefully before use to ensure proper operation.
*Compared under the following conditions: ambient temperature 35°C, set temperature in the panel 35°C, power supply frequency 60 Hz, and 250 W load in the panel,
The former model ENC-GR500EX power consumption is 229W and the ENC-GR500EX-Pro is 183W, which is superior in productivity.

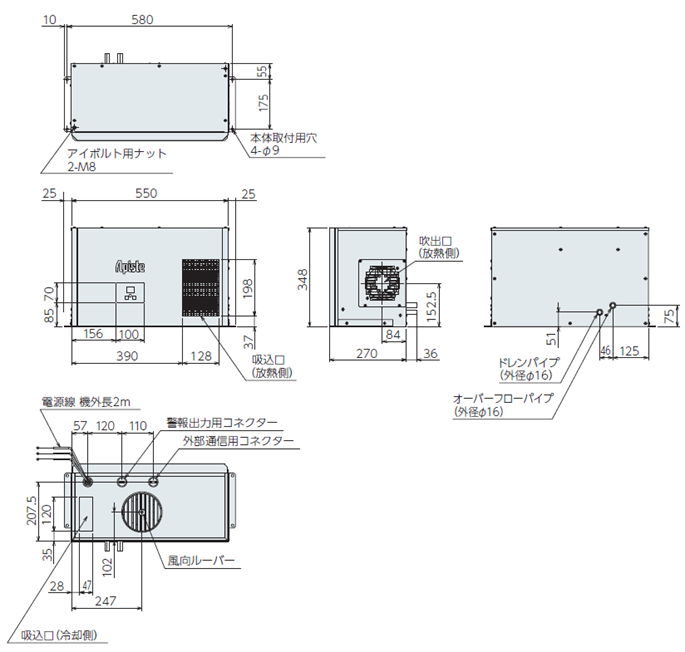

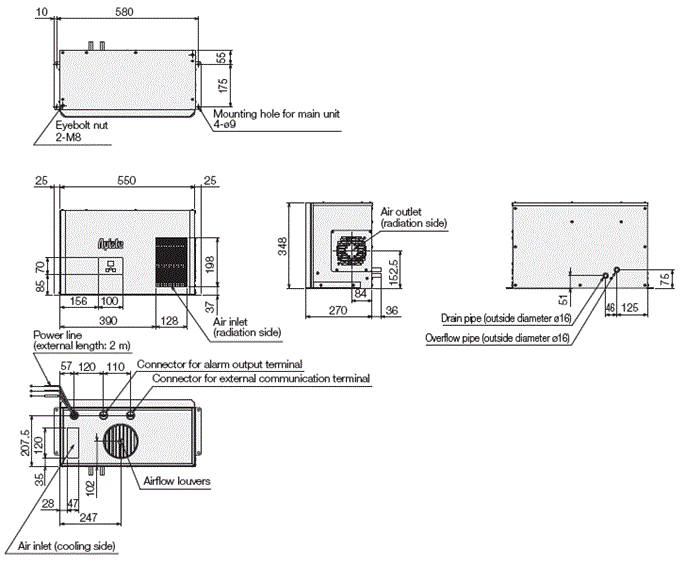

External dimensions
* alarm output and external communication cables are option.
alarm output cable: OP-ENCPR-OTR003
External communication cable: OP-ENCPR-OTR004

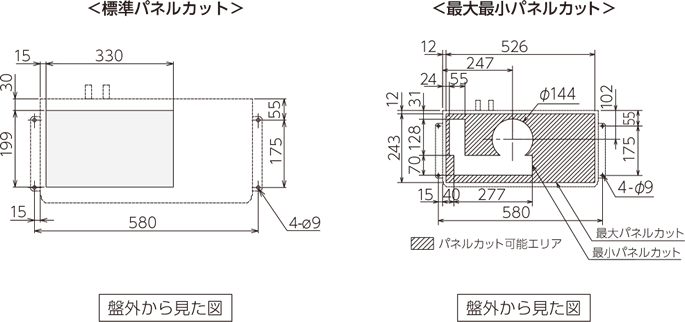

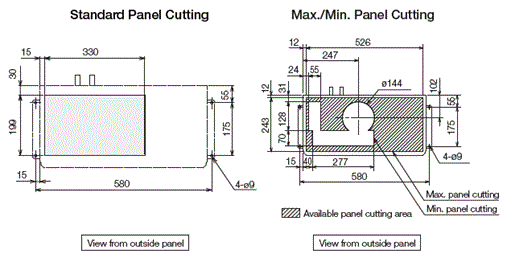

Diagram of Panel Cutout

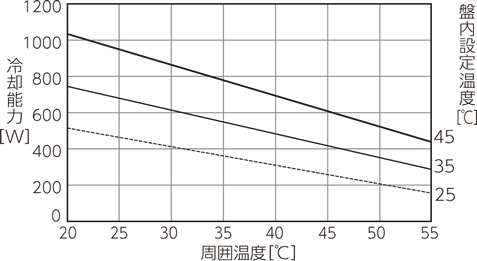

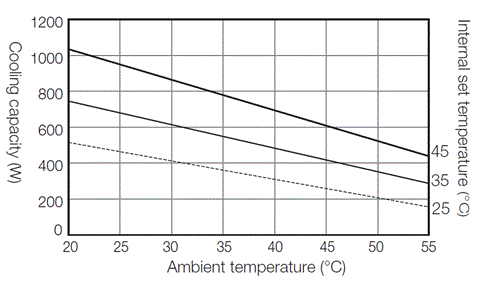

cooling capacity characteristic diagram
*Contact our sales representative if you are using the control panel cooler in an environment close to the permissible ambient temperature upper limit.
【Note】
◯Please read the instruction manual before use and use it correctly.
◯Products will be delivered to the vehicle (designated domestic locations, excluding remote islands).
◯ Depending on model and number of vehicles, a charter flight may be required (additional costs may apply).
◯For overseas delivery, we recommend separate overseas packaging.
Check specification of the FA cooler and install an appropriate circuit breaker (wiring circuit breaker) between the FA cooler and power supply.
◯Using the product outside rating power supply range may cause it to malfunction.
Please perform regular maintenance.
◯Failure to perform regular maintenance may result in deterioration of product performance or problems.
Do not operate the FA cooler continuously during low outdoor temperatures in winter.
When disposal of this product, please comply with all applicable laws and regulations and dispose of it appropriately.
