Filter-less Enclosure Cooling Unit (HFC alternative)
ENC-GR1000EX-Pro
| Cooling Capacity(W)*1 | 1000 |
|---|---|
| power-supply voltage (V) | Single-phase 200 to 240V AC |
| Mounting Type | Ceiling Mounting |
| External Dimensions(mm) | H348×W600×D353 |
| Weight(kg) | 約25 |
Contact Us
Download
For those who are already using our products
ENC-GR1000EX-Pro Product details
Index
Specifications
See specification in the catalogue(50/60Hz)
| Mounting Type | Ceiling Mounting |
|---|---|
| Cooling Capacity(W)*1 | 1000 |
| Setting Temperature Range (℃) | 25～45 |
| Ambient Temperature(℃) | 20～55 |
| Ambient humidity(%RH) | 10～85 (No condensation) |
| External Dimensions(mm) | H348×W600×D353 |
| Weight(kg) | 約25 |
| Coating Color | Light beige equivalent color 5Y7/1 approx. |
| power-supply voltage (V) | Single-phase 200 to 240V AC |
| current consumption: rating (A) * | 3.5 |
| power consumption: rating (W) * | 580 |
| Recommended breaker capacity (A) | 10 |
| Vibration Resistance | JIS Z0200 Level 1 |
| Dust and Water Proof Protection Rating | Equivalent to IP54 (internal circulation route) |
| Certification | CE/ETL/CCC |
| Refrigerant Types | R1234yf |
| Refrigerant Filling Amount (g) | 310 |
| Noise (dB(A)) | 約71 |
| alarm output | Non-voltage a contact: AC250V 2A/DC30V 2A resistive load |
| Display | Panel temperature/Error/RUN |
* cooling capacity: rating capacity values at ambient/board temperature and humidity of 35°C/40%RH and power-supply voltage 200V.
(Test method: indoor side air enthalpy test method based on JIS B 8615-1)
*The operating ambient temperature and humidity range defines the operating range and does not guarantee rating performance
*Dustproof and drip-proof protection class: excluding drain port section
*Please read the instruction manual carefully before use to ensure proper operation.
*Compared under the following conditions: ambient temperature 35°C, set temperature in the panel 35°C, power supply frequency 60 Hz, load in the panel 520W,
The former model ENC-G1120EX power consumption is 391W and the ENC-GR1000EX-Pro is 310W, which is superior in productivity.

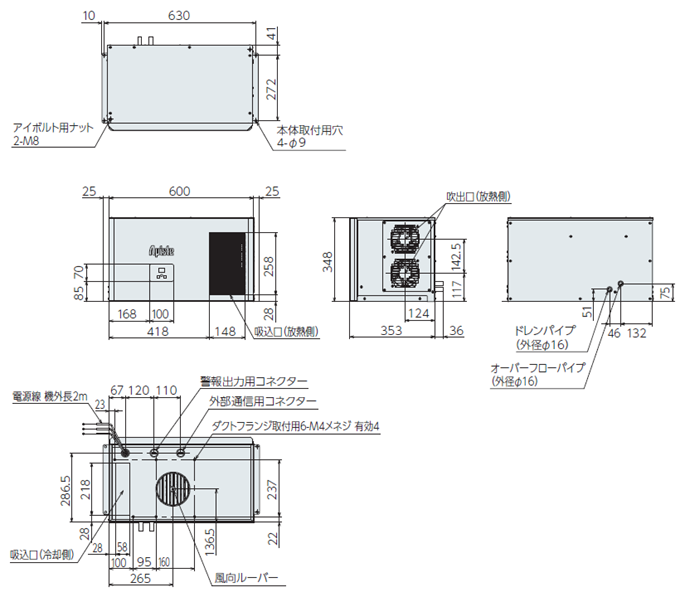

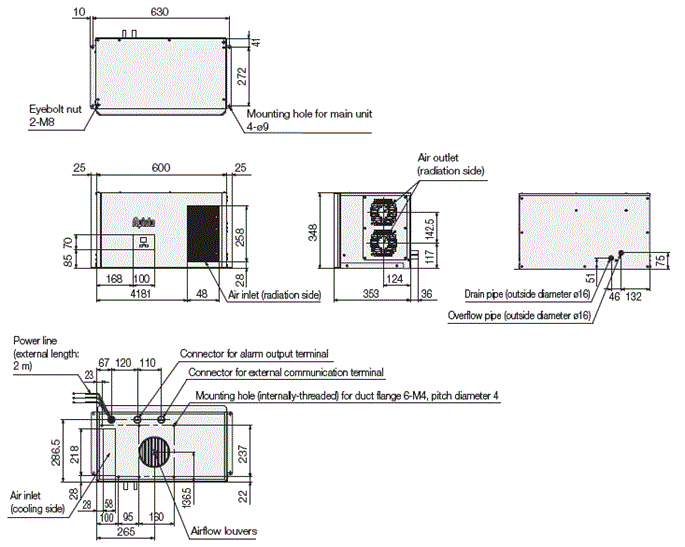

External dimensions
* alarm output and external communication cables are option.
alarm output cable: OP-ENCPR-OTR003
External communication cable: OP-ENCPR-OTR004

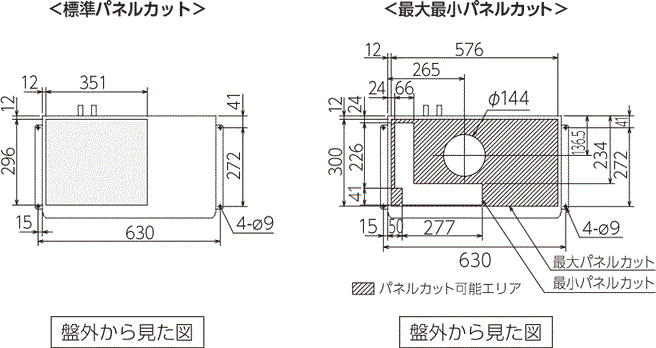

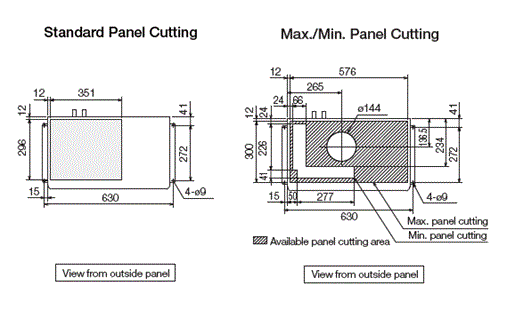

Diagram of Panel Cutout

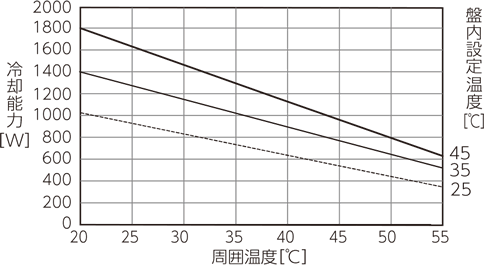

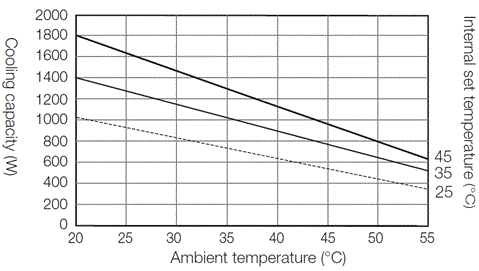

cooling capacity characteristic diagram
*Contact our sales representative if you are using the control panel cooler in an environment close to the permissible ambient temperature upper limit.
【Note】
Please read the instruction manual before use and use the product correctly.
◯Products will be delivered to the vehicle (at designated locations within Japan, excluding remote islands).
Depending on model and number of units, a separate charter service (additional fees apply) may be required.
◯For overseas deliveries, we recommend using separate overseas packaging.
Please check specification of Enclosure Cooling Unit and install an appropriate circuit breaker (earth leakage circuit breaker) between Enclosure Cooling Unit and power supply.
Using the device outside of rating power supply range may cause malfunctions.
Please perform regular maintenance.
Neglecting regular maintenance can lead to product performance degradation and malfunctions.
◯During winter when outside temperatures are low, do not operate Enclosure Cooling Unit continuously.
When disposal of this product, please do so in accordance with all applicable laws and regulations.
