Non-freon-gas Filter-less & Energy saving
ENC-GR1500EX-Pro
| Cooling capacity(W)*1 | 1400 |
|---|---|
| power-supply voltage (V) | Single-phase 200 to 240V AC |
| Mounting Type | Ceiling Mounting |
| External Dimensions(mm) | H448×W590×D350 |
| Weight(kg) | Approx. 31 |
Inquiry
Download
ENC-GR1500EX-Pro Product details
Specifications
See specification in the catalogue(50/60Hz)
| Mounting Type | Ceiling Mounting |
|---|---|
| Cooling capacity(W)*1 | 1400 |
| Setting temperature range (℃) | 25 to 45 |
| Ambient temperature(℃) | 20～55 |
| Ambient humidity(%RH) | 10～85 (No condensation) |
| External Dimensions(mm) | H448×W590×D350 |
| Weight(kg) | Approx. 31 |
| Coating Color | Light beige equivalent color 5Y7/1 approx. |
| power-supply voltage (V) | Single-phase 200 to 240V AC |
| Current consumption *3 : Rating(A) *4 | 4.5 |
| Power consumption *3 : Rating(W) *4 | 750 |
| Recommended breaker capacity (A) | 10 |
| Vibration resistance | JIS Z0200 Level 1 |
| Dust and water proof protection rating | Equivalent to IP54 (internal circulation route) |
| Certification | CE/ETL/CCC |
| Refrigerant / Amount(g) | R1234yf 600g |
| Noise (dB(A)) | about 73 |
| alarm output | Non-voltage a contact: AC250V 2A/DC30V 2A resistive load |
| Display | Panel temperature/Error/RUN |
* cooling capacity: rating capacity values at ambient/board temperature and humidity of 35°C/40%RH and power-supply voltage 200V.
(Test method: indoor side air enthalpy test method based on JIS B 8615-1)
*The operating ambient temperature and humidity range defines the operating range and does not guarantee rating performance
*Dustproof and drip-proof protection class: excluding drain port section
*Please read the instruction manual carefully before use to ensure proper operation.
*Compared under the following conditions: ambient temperature 35°C, set temperature inside the panel 35°C, power supply frequency 60 Hz, and 750 W load inside the panel,
The former model ENC-G1652EX power consumption is 431W and the ENC-GR1500EX-Pro is 379W, which is superior in productivity.

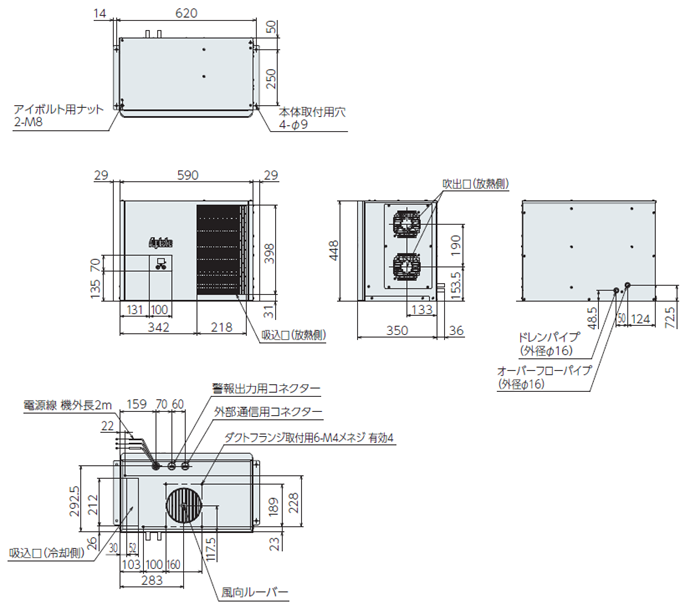

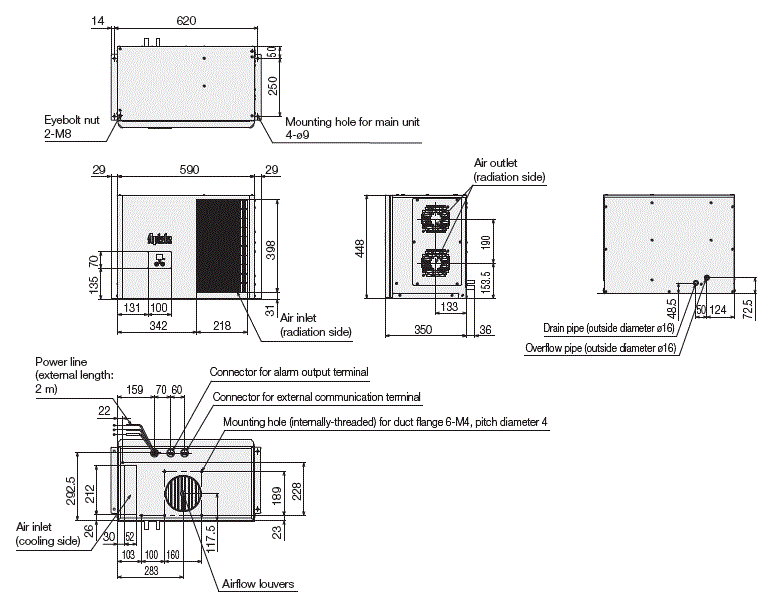

External dimensions
* alarm output and external communication cables are option.
alarm output cable: OP-ENCPR-OTR003
External communication cable: OP-ENCPR-OTR004

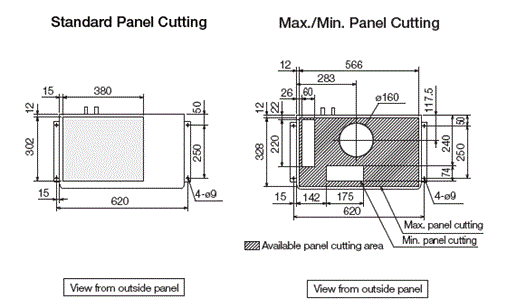

Diagram of Panel Cutout

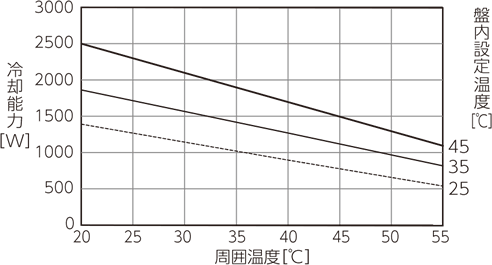

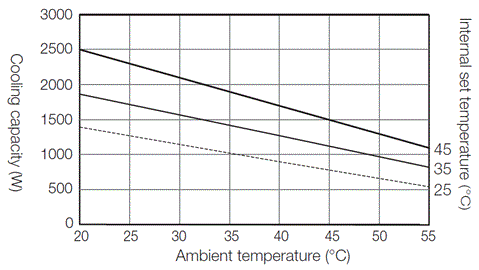

cooling capacity characteristic diagram
*Contact our sales representative if you are using the control panel cooler in an environment close to the permissible ambient temperature upper limit.
[Caution]
To ensure proper operation of this equipment, read the operation manual before use.
Depending on model and quantity, separate charter delivery may be arranged (additional costs apply).
Overseas at the time of delivery, we recommend packing for overseas separately.
Please check through the cooler between the FA and the power (circuit breakers) to the appropriate specification of the FA breaker cooler.
Cause of failure and be used at the rated power supply out of range.
Please use the service and maintenance on a regular basis.
Failure to maintain regular maintenance, you may be a factor in product performance degradation trouble.
When the outside temperature is low in winter, please do not let the FA cooler continuous operation.
When disposing of this product, you should comply with various laws and regulations, please go to the appropriate.
