Enclosure Cooling Unit (HFC alternative)
ENC-GR300S
| Cooling capacity(W)*1 | 260/300 |
|---|---|
| Rated voltage(V) | Single-phase 200V AC |
| Mounting Type | Side-mounting |
| External Dimensions(mm) | H450×W300×D150 |
| Weight(kg) | 14 |
Inquiry
Download
Product Details for ENC-GR300S
Specifications
See specification in the catalogue(50/60Hz)
| Mounting Type | Side-mounting |
|---|---|
| Cooling capacity(W)*1 | 260/300 |
| Setting temperature range (℃) | 25～45 |
| Ambient temperature(℃) | 20 to 50 |
| Ambient humidity(%RH) | 10～85 (No condensation) |
| External Dimensions(mm) | H450×W300×D150 |
| Weight(kg) | 14 |
| Coating Color | Munsell 5Y 7/1 Equivalent color of light beige |
| Rated voltage(V) | Single-phase 200V AC |
| current consumption: rating (A) * | 1.4/1.3 |
| Current consumption *3 : Max(A) *5 | 1.6/1.5 |
| Starting current (A) | 4.0/3.9 |
| power consumption: rating (W) * | 245/255 |
| Power consumption *3 : Max(W) *5 | 280/300 |
| Recommended breaker capacity (A) | 10 |
| Vibration resistance | Equivalent to JIS Z 0200 Level1 |
| Dust and water proof protection rating | Equivalent to IP54 (internal circulation route) |
| Certification | CE/UL |
| refrigerant types | R1234yf |
| refrigerant filling amount (g) | 90 |
| Noise (dB(A)) | 約68／71 |
| External output | Alarm output (No-voltage/normal open: resistive load 250V 2A) *Can be switched to no-voltage/normal close by setting |
| Display | Panel temperature/Error/RUN |
*Cooling Capacity : Rated capacity value when ambient temperature is 35°C and ambient humidity is 40%RH , power source & voltage : 200V. (Measuring specification :JIS B 8615-1 the inside of a air enthalpy test method)
*Use area temperature / humidity : Use area temperature / humidity is not meant to satisfy all conditions in temperature and humidity.
*Rating Value : 35°C ambient temperature, ambient humidity RH 40%, power source & voltage : 200V.
*Maximum Value : The ambient temperature at MAX value has specification separately.
*Use the product keeping the use power supply and voltage; within ±10% of rated power supply and rated voltage.
*Consumption current and wattage are values during cooling ope ration.
*Dust prevention / dust proof protection class : Excluding drain pipe section

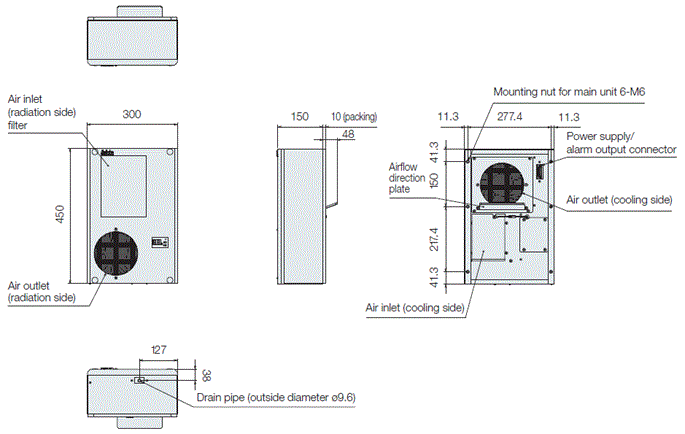

External dimensions

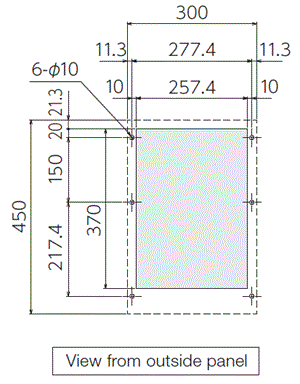

Diagram of Panel Cutout

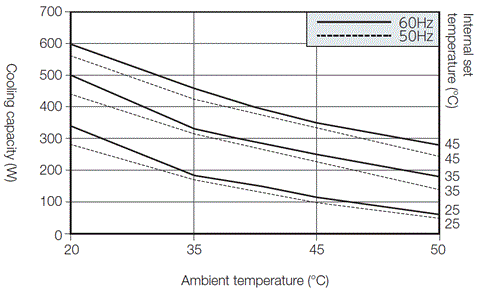

Capacity characteristic chart
*Contact our sales representative if you are using the control panel cooler in an environment close to the permissible ambient temperature upper limit.
【Note】
Please read the instruction manual before use and use the product correctly.
◯Products will be delivered to the vehicle (at designated locations within Japan, excluding remote islands).
Depending on model and number of units, a separate charter service (additional fees apply) may be required.
◯For overseas deliveries, we recommend using separate overseas packaging.
Please check specification of Enclosure Cooling Unit and install an appropriate circuit breaker (wiring breaker) between Enclosure Cooling Unit and power supply.
Using the device outside of rating power supply range may cause malfunctions.
Please perform regular maintenance.
Neglecting regular maintenance can lead to product performance degradation and malfunctions.
◯During winter when outside temperatures are low, do not operate Enclosure Cooling Unit continuously.
When disposal of this product, please do so in accordance with all applicable laws and regulations.
