Enclosure Cooling Unit (HFC alternative)
ENC-GR310EX
| Cooling capacity(W)*1 | 290／300 |
|---|---|
| Rated voltage(V) | Single-phase 100V AC |
| Mounting Type | Ceiling Mounting |
| External Dimensions(mm) | H232×W450×D250 |
| Weight(kg) | 約15 |
Inquiry
Download
ENC-GR310EX Product details
Specifications
See specification in the catalogue(50/60Hz)
| Mounting Type | Ceiling Mounting |
|---|---|
| cooling capacity (W) * | 290／300 |
| Setting temperature range (℃) | 25～45 |
| Use Area Temperature (°C) * | 20 to 50 |
| use area Humidity (%RH) * * | 10～85 (No condensation) |
| External dimensions (mm) * | H232×W450×D250 |
| Weight(kg) | 約15 |
| Coating Color | Munsell 5Y 7/1 Equivalent color of light beige |
| Rated voltage(V) | Single-phase 100V AC |
| current consumption: rating (A) * | 2.3／2.1 |
| current consumption: MAX (A) * | 2.7／2.7 |
| Starting current (A) * | 5.2／5.2 |
| power consumption: rating (W) * | 200／210 |
| power consumption: MAX (W) * | 255／270 |
| Recommended breaker capacity (A) | 10 |
| Vibration resistance | Equivalent to JIS Z 0200 Level1 |
| Dustproof and splashproof protection rating * | Equivalent to IP54 (internal circulation route) |
| Certification | |
| refrigerant types | R1234yf |
| refrigerant filling amount (g) | 105 |
| noise (dB(A)) * | Approx. 60/approx. 65 |
| External output | alarm output (non-voltage a contact: AC250V 2A resistive load) |
| Display | Panel temperature/Error/RUN |
*1 rating capacity value when ambient/inside panel temperature and humidity are 35°C/40%RH and power-supply voltage is 200V (100V for 100V models only).
(Test method: Indoor air enthalpy test method based on JIS B 8615-1)
*2 The ambient temperature and humidity ranges for use define the operating range and do not guarantee rating performance.
*3 If the unit is operated continuously when the humidity inside the panel is high, condensation may form on the unit itself and the air direction louvers.
*4 Excluding protrusions.
*5This is the value during cooling operation when Use Area Temperature is the maximum Use Area Temperature, use area Humidity is 40% RH, and power-supply voltage is 200V (100V for 100V models only).
*6 performance measured in tests conforming to JIS C 0920. Drain outlet is blocked.
*7 Measured at a horizontal distance of 1m from the front of the product, and the height from the floor is measured at the center of the product.

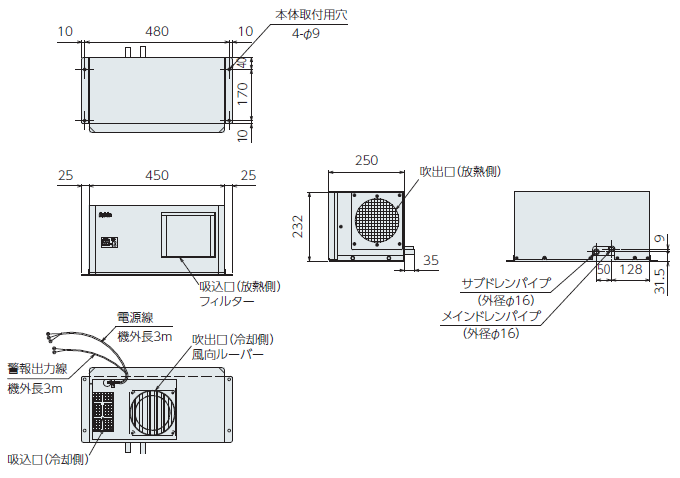

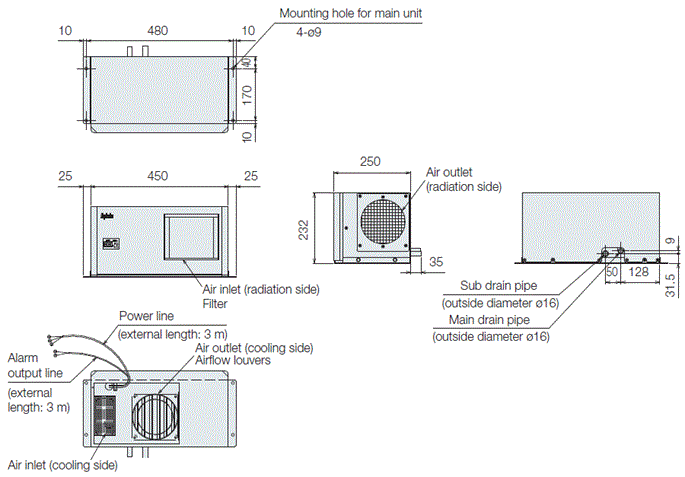

External dimensions

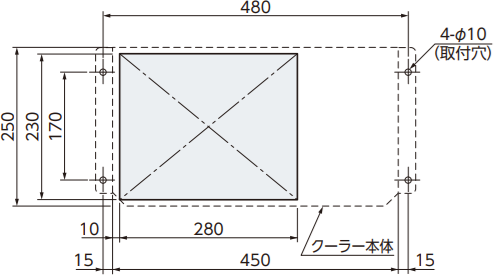

Diagram of Panel Cutout

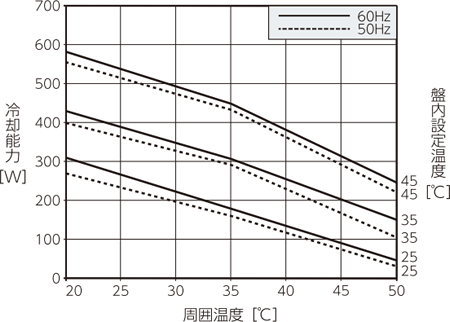

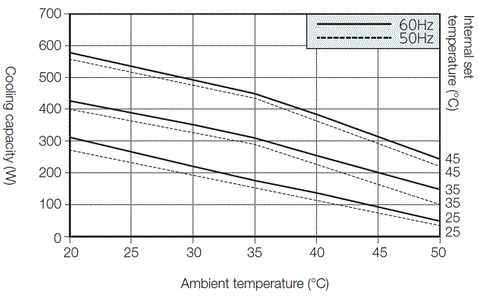

Capacity characteristic chart
*Contact our sales representative if you are using the control panel cooler in an environment close to the permissible ambient temperature upper limit.
【Note】
Please read the instruction manual before use and use the product correctly.
◯Products will be delivered to the vehicle (at designated locations within Japan, excluding remote islands).
Depending on model and number of units, a separate charter service (additional charges apply) may be required.
◯For overseas deliveries, we recommend using separate overseas packaging.
Please check specification of Enclosure Cooling Unit and install an appropriate circuit breaker (circuit breaker) between Enclosure Cooling Unit and power supply.
Using the device outside of rating power supply range may cause malfunctions.
Please perform regular maintenance.
Neglecting regular maintenance can lead to product performance degradation and malfunctions.
◯During winter when outside temperatures are low, do not operate Enclosure Cooling Unit continuously.
When disposal of this product, please do so in accordance with all applicable laws and regulations.
