HFC alternative small size
ENC-GR300EX
| Cooling capacity(W)*1 | 290／300 |
|---|---|
| Rated voltage(V) | Single-phase 200V AC |
| Mounting Type | Ceiling Mounting |
| External Dimensions(mm) | H232×W450×D250 |
| Weight(kg) | Approx. 15 |
Inquiry
Download
ENC-GR300EX Product details
Specifications
See specification in the catalogue(50/60Hz)
| Mounting Type | Ceiling Mounting |
|---|---|
| Cooling capacity(W)*1 | 290／300 |
| Setting temperature range (℃) | 25 to 45 |
| Use Area Temperature (℃) *2 | 20 to 50 |
| use area Humidity (%RH) *2 *3 | 10～85 (No condensation) |
| External dimensions (mm) *4 | H232×W450×D250 |
| Weight(kg) | Approx. 15 |
| Coating Color | Munsell 5Y 7/1 Equivalent color of light beige |
| Rated voltage(V) | Single-phase 200V AC |
| current consumption: rating (A) *1 | 1.3／1.1 |
| current consumption: MAX (A) *5 | 1.5／1.3 |
| Starting current (A) *1 | 2.9／2.7 |
| power consumption: rating (W) *1 | 220／220 |
| power consumption: MAX (W) *5 | 265／270 |
| Recommended breaker capacity (A) | 5 |
| Vibration resistance | Equivalent to JIS Z 0200 Level1 |
| Dustproof and water-resistant protection rating *6 | Equivalent to IP54 (internal circulation route) |
| Refrigerant / Amount(g) | R1234yf 105g |
| noise (dB(A)) *7 | Approx. 60/approx. 65 |
| External output | alarm output (non-voltage a contact: AC250V 2A resistive load) |
| Display | Panel temperature/Error/RUN |
*1 rating capacity value when ambient/inside panel temperature and humidity are 35°C/40%RH and power-supply voltage is 200V (100V for 100V models only).
(Test method: Indoor air enthalpy test method based on JIS B 8615-1)
*2 The ambient temperature and humidity ranges for use define the operating range and do not guarantee rating performance.
*3 If the unit is operated continuously when the humidity inside the panel is high, condensation may form on the unit itself and the air direction louvers.
*4 Excluding protrusions.
*5This is the value during cooling operation when Use Area Temperature is the maximum Use Area Temperature, use area Humidity is 40% RH, and power-supply voltage is 200V (100V for 100V models only).
*6 performance measured in tests conforming to JIS C 0920. Drain outlet is blocked.
*7 Measured at a horizontal distance of 1m from the front of the product, and the height from the floor is measured at the center of the product.

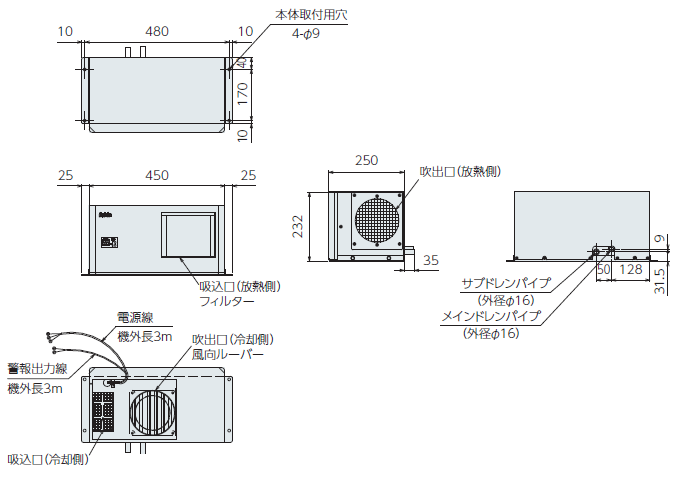

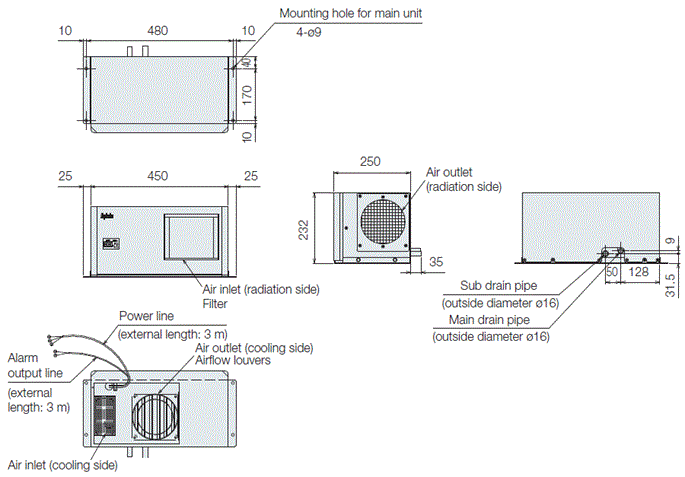

External dimensions

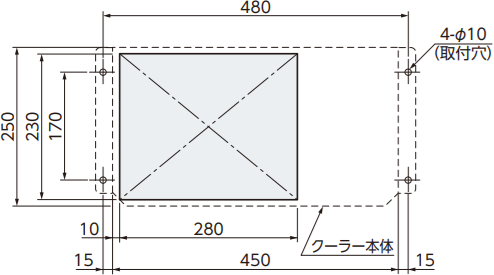

Diagram of Panel Cutout

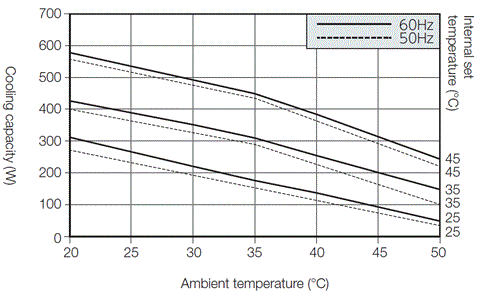

Capacity characteristic chart
*Contact our sales representative if you are using the control panel cooler in an environment close to the permissible ambient temperature upper limit.
【Note】
◯Please read the instruction manual before use and use it correctly.
◯Products will be delivered to the vehicle (designated domestic locations, excluding remote islands).
◯ Depending on model and number of vehicles, a charter flight may be required (additional costs may apply).
◯For overseas delivery, we recommend separate overseas packaging.
Check specification of the FA cooler and install an appropriate circuit breaker (wiring circuit breaker) between the FA cooler and power supply.
◯Using the product outside rating power supply range may cause it to malfunction.
Please perform regular maintenance.
◯Failure to perform regular maintenance may result in deterioration of product performance or problems.
Do not operate the FA cooler continuously during low outdoor temperatures in winter.
When disposal of this product, please comply with all applicable laws and regulations and dispose of it appropriately.
