Duct set
Duct set
Features
●Eliminates the mounting space problem of FA coolers.
●Achieves an optimal environment inside the control panel without being limited by the equipment inside the panel.
●Mounting space is only 150 mm × 150 mm at 2 locations (a model which requires a space of 100 mm × 150 mm is also available).
Details

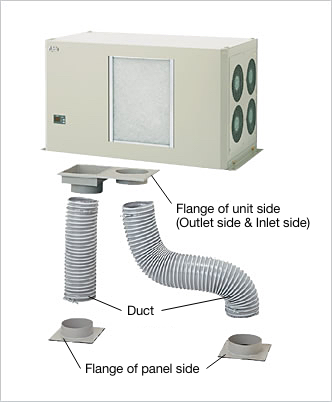

Top-mounting type

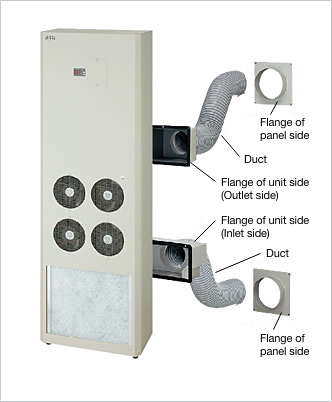

Side-mounting type
List of parts by model
| Model | Duct hose 2m |
Flange of unit side |
Flange of panel side |
Duct hose band |
Screw set |
||||
|---|---|---|---|---|---|---|---|---|---|
| φ 150 |
φ 200 |
Inlet side flange |
Outlet side flange |
φ 150 |
φ 200 |
φ 150 |
φ 200 |
||
| ENC- G1110L |
2 | 1(Integrated type) | 2 | 4 | 1 | ||||
| ENC- NW1120L |
2 | 1(Integrated type) | 2 | 4 | 1 | ||||
| ENC- G1310LE |
2 | 1 | 1 | 2 | 4 | 1 | |||
| ENC- G1651L |
2 | 1 | 1 | 2 | 4 | 1 | |||
| ENC- NW2200L |
2 | 1 | 1 | 1 | 2 | 1 | 4 | 2 | 1 |
| ENC- G2240L |
2 | 1 | 1 | 2 | 4 | 1 | |||
| ENC- 2800HL |
2 | 1 | 1 | 2 | 4 | 1 | |||
| ENC- NW2900L |
2 | 1 | 1 | 1 | 2 | 1 | 4 | 2 | 1 |
| ENC- G2940L |
2 | 1 | 1 | 2 | 4 | 1 | |||
| ENC- A5500L |
2 | 1 | 1 | 2 | 4 | 1 | |||
| ENC- G820EXE |
2 | 1(Integrated type) | 2 | 4 | 1 | ||||
| ENC- G1310EXE/ G1320EXE |
2 | 1(Integrated type) | 2 | 4 | 1 | ||||
| ENC- A3500EX |
2 | 1 | 1 | 2 | 4 | 1 | |||
*The duct hose can be cut to your preferred length.
*Contents of screw set vary depending on the model.
*Inquire separately for the details as the stand for the main body is not attached.
*Inquire separately for the details of duct sets for models that are not given in the list.

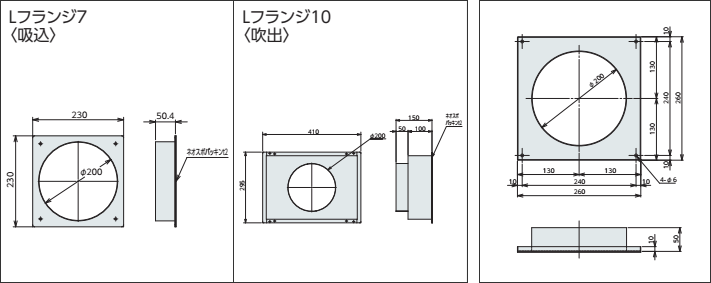

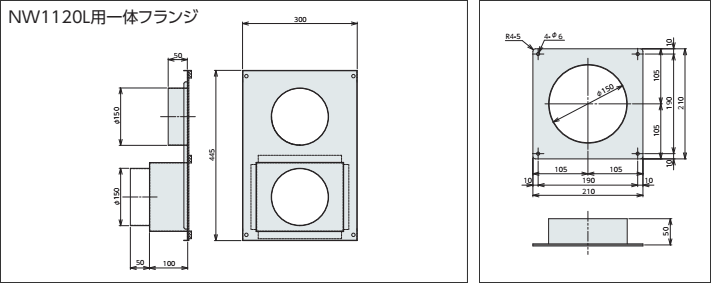

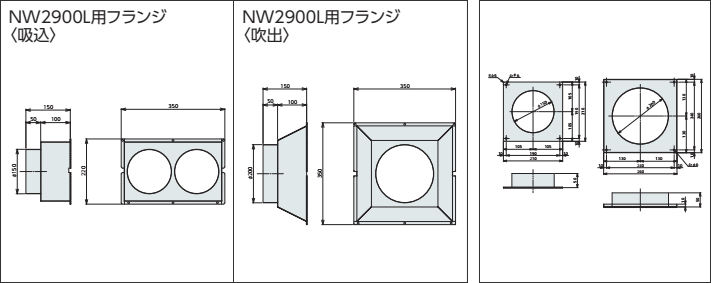

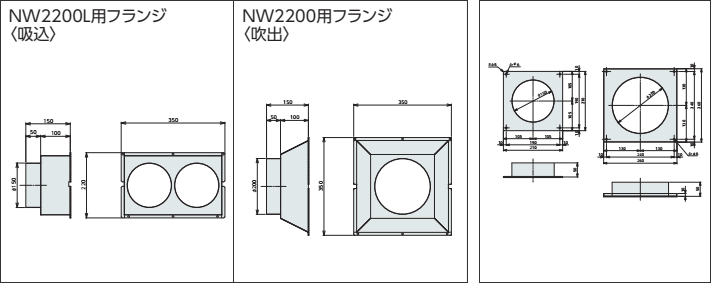

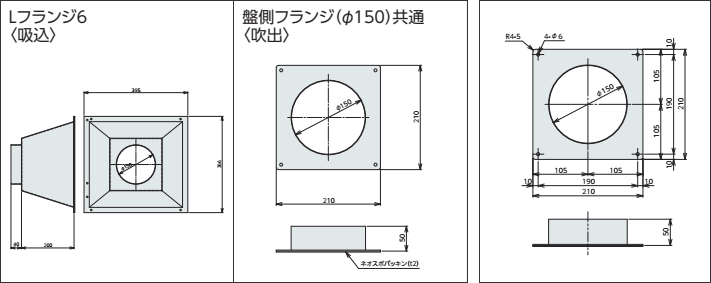

Flange outline
ENC-G1110L
ENC-NW1120L
ENC-G1310LE
ENC-G1651L
ENC-NW2200L
ENC-G2240L
ENC-2800HL
ENC-NW2900L
ENC-G2940L
ENC-A5500L
ENC-G820EXE
ENC-G1310EXE/G1320EXE
ENC-A3500EX
