Enclosure Cooling Unit (refrigerant/special specification)
ENC-NW1120L
| Cooling capacity(W)*1 | 800／1000 |
|---|---|
| Rated voltage(V) | Single-phase 200V AC |
| Mounting Type | Side-mounting |
| External Dimensions(mm) | H730×W300×D230 |
| Weight(kg) | 22 |
Inquiry
Download
ENC-NW1120L Product details
Specifications
See specification in the catalogue(50/60Hz)
| Mounting Type | Side-mounting |
|---|---|
| Cooling capacity(W)*1 | 800／1000 |
| Setting temperature range (℃) | 25～45 |
| Ambient temperature(℃) | 20～55 |
| Ambient humidity(%RH) | 10 to 80 (no condensation) |
| External Dimensions(mm) | H730×W300×D230 |
| Weight(kg) | 22 |
| Coating Color | Munsell 5Y7/1 light beige equivalent |
| Rated voltage(V) | Single-phase 200V AC |
| current consumption: rating (A) * | 2.2／1.8 |
| Current consumption *3 : Max(A) *5 | 2.6／2.9 |
| Starting current (A) | 7.5／7.1 |
| power consumption: rating (W) * | 340／350 |
| Power consumption *3 : Max(W) *5 | 450／560 |
| Cooling water/temperature range (℃) | 10～40 |
| Cooling water/flow rate (ℓ/min) | 5 |
| Cooling water/pressure (Mpa) | 0.2～0.5 |
| Noise resistance | Fast transient/burst immunity test level 4 |
| Vibration resistance | Frequency: 5Hz Total amplitude: 20mm |
| Certification | |
| refrigerant types | R134a |
| refrigerant filling amount (g) | 100g |
| Noise (dB(A)) | 57／60 |
| External output | alarm output (non-voltage a contact: 250V 2A resistive load) |
| Display | Panel temperature/Error display LED/RUN LED |
Note)
cooling capacity: This is capacity when the temperature inside the panel is 35°C, the cooling water inlet temperature is 35°C, and the water supply rate is 7.2/7.9 m3/min. (Measurement conditions: JIS-C-9612 air enthalpy method)
rating: Value when Use Area Temperature 35°C and use area Humidity 40% RH.
MAX value: Value when Use Area Temperature is the maximum allowable ambient temperature and use area Humidity is 40% RH.
- Use power-supply voltage within ±10% of rated voltage.
- Be sure to read the instruction manual carefully before use and use it correctly.

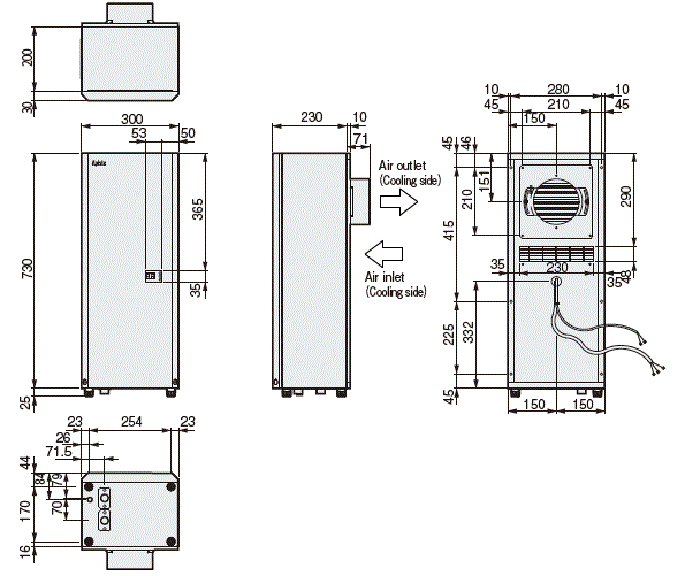

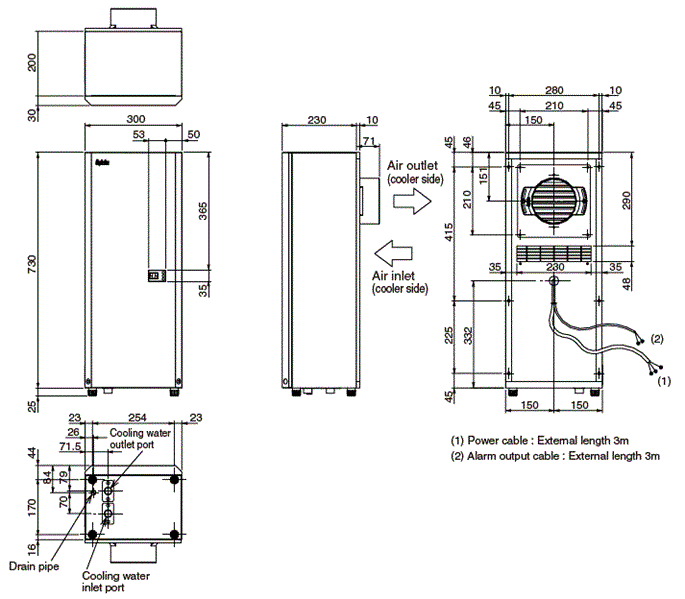

External dimensions

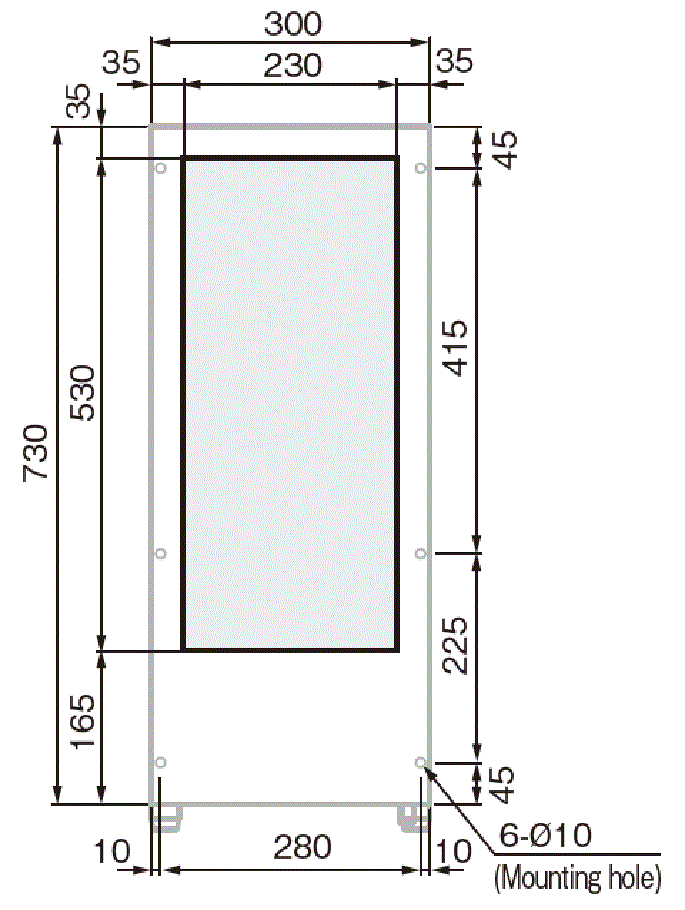

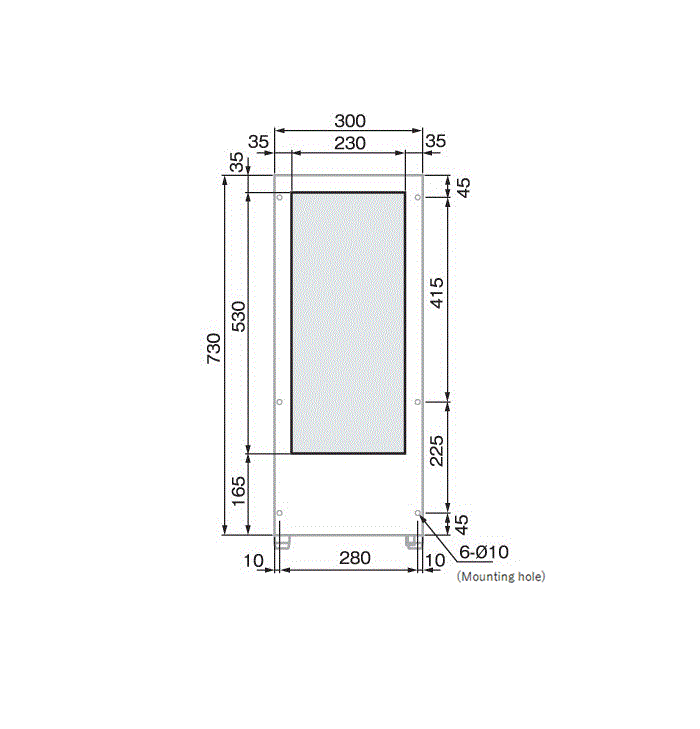

Diagram of Panel Cutout

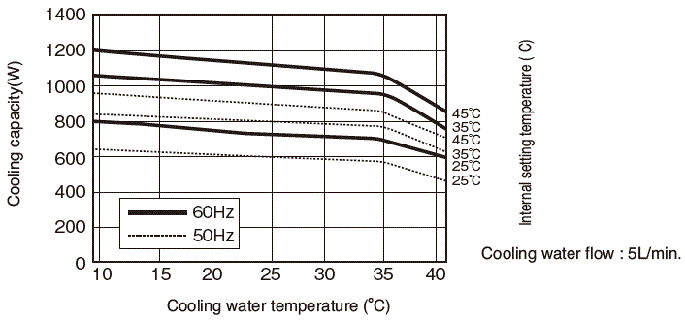

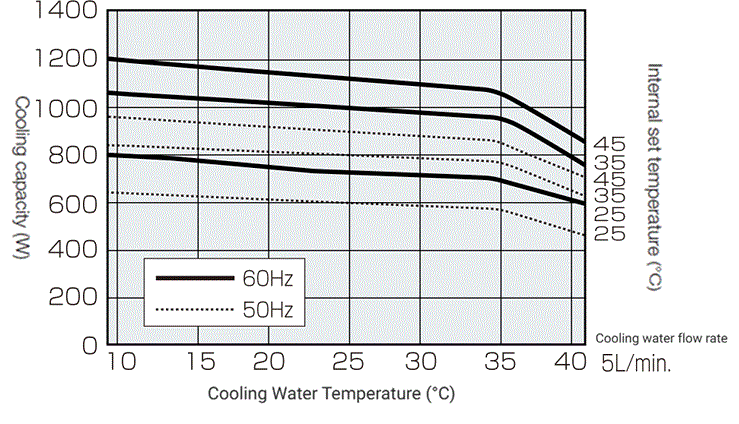

Capacity characteristics graph
*Contact our sales representative if you are using the control panel cooler in an environment close to the permissible ambient temperature upper limit.
【Note】
Please read the instruction manual before use and use the product correctly.
◯Products will be delivered to the vehicle (at designated locations within Japan, excluding remote islands).
Depending on model and number of units, a separate charter service (additional fees apply) may be required.
◯For overseas deliveries, we recommend using separate overseas packaging.
Please check specification of Enclosure Cooling Unit and install an appropriate circuit breaker (wiring breaker) between Enclosure Cooling Unit and power supply.
Using the device outside of rating power supply range may cause malfunctions.
Please perform regular maintenance.
Neglecting regular maintenance can lead to product performance degradation and malfunctions.
◯During winter when outside temperatures are low, do not operate Enclosure Cooling Unit continuously.
When disposal of this product, please do so in accordance with all applicable laws and regulations.
