Enclosure Cooling Unit (refrigerant/special specification)
ENC-2800HL
| Cooling capacity(W)*1 | 2500／2800 |
|---|---|
| Rated voltage(V) | Three-phase 200V AC |
| Mounting Type | Side-mounting |
| External Dimensions(mm) | H1455×W480×D260 |
| Weight(kg) | 72 |
Inquiry
Download
ENC-2800HL Product details
Specifications
See specification in the catalogue(50/60Hz)
| Mounting Type | Side-mounting |
|---|---|
| Cooling capacity(W)*1 | 2500／2800 |
| Setting temperature range (℃) | 30～70 |
| Ambient temperature(℃) | 30～70 |
| Ambient humidity(%RH) | 10～85（～45℃）、10～45（～55℃）、10～30（～65℃）、10～20（～70℃） |
| External Dimensions(mm) | H1455×W480×D260 |
| Weight(kg) | 72 |
| Coating Color | Munsell 5Y7/1 light beige equivalent |
| Rated voltage(V) | Three-phase 200V AC |
| current consumption: rating (A) * | 5.0/5.2 (at ambient temperature of 35°C) |
| Current consumption *3 : Max(A) *5 | 6.9/7.3 (at ambient temperature of 70°C) |
| Starting current (A) | 30 |
| power consumption: rating (W) * | 1000/1190 (at outside temperature 35°C) |
| Power consumption *3 : Max(W) *5 | 1800/2150 (at outside temperature of 70°C) |
| Noise resistance | 1.5kV (50ns, 1μs, pulse width common, Normal mode, noise simulator) |
| Vibration resistance | Frequency: 5Hz Total amplitude: 20mm |
| Dust and water proof protection rating | Equivalent to IP54 (internal circulation route) |
| Certification | |
| refrigerant types | R134a |
| refrigerant filling amount (g) | 933 |
| Noise (dB(A)) | 約67／72 |
| External output | Compressor operation, abnormal temperature inside the panel, compressor overcurrent, abnormal compressor temperature, abnormal compressor pressure (250V 2A) Relay output |
| Display | power supply (white), operation (green), alarm (red) lamp display |
Note)
cooling capacity: rating capacity when outside temperature is 35°C and internal temperature is set to 35°C (measurement conditions: JIS-C-9612 air enthalpy method).
When the outside temperature is 70°C and the temperature inside the panel is set to 70°C, the rating capacity is 900/1000W.
- Use power-supply voltage within ±10% of rated voltage.
- Be sure to read the instruction manual carefully before use and use it correctly.

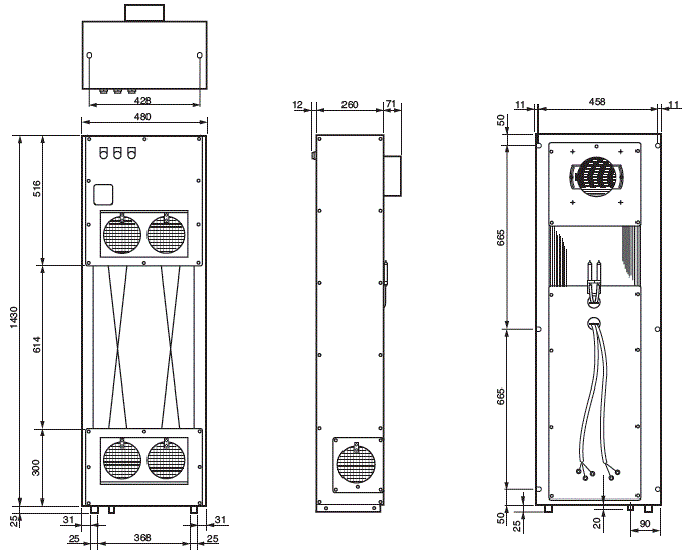

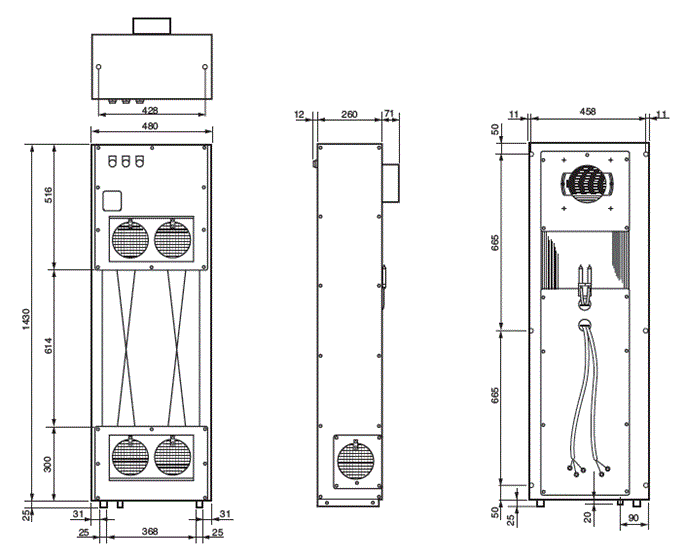

External dimensions
power supply line: Cord outside length 3m
Operation/ alarm output line: Cord length outside the machine: 3m
*The operation and alarm output lines actually output the following signals: compressor operation, compressor pressure abnormality, compressor temperature abnormality, compressor overcurrent abnormality, and internal panel temperature abnormality.

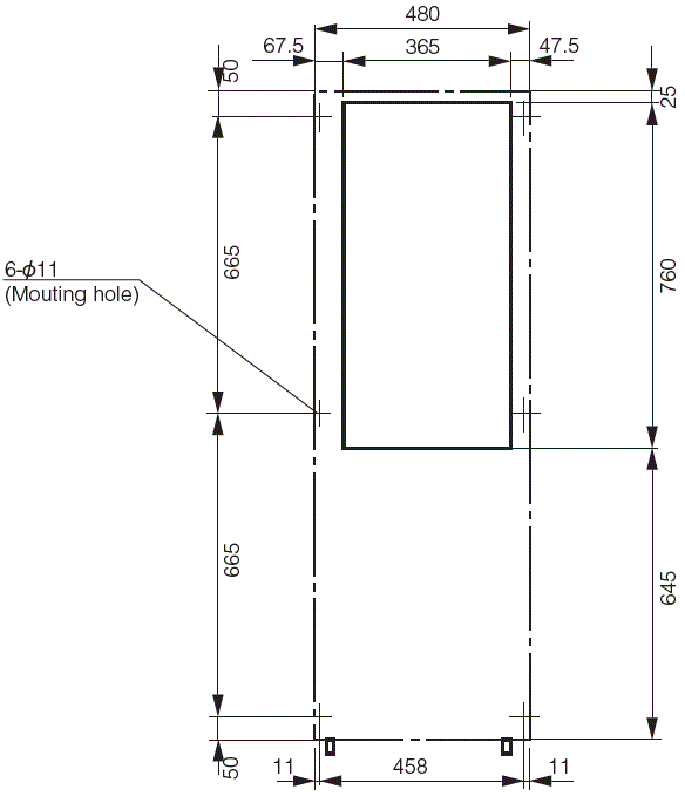

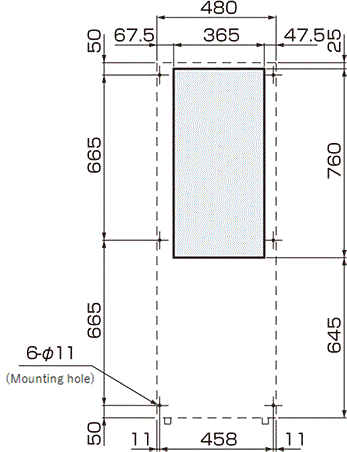

Diagram of Panel Cutout

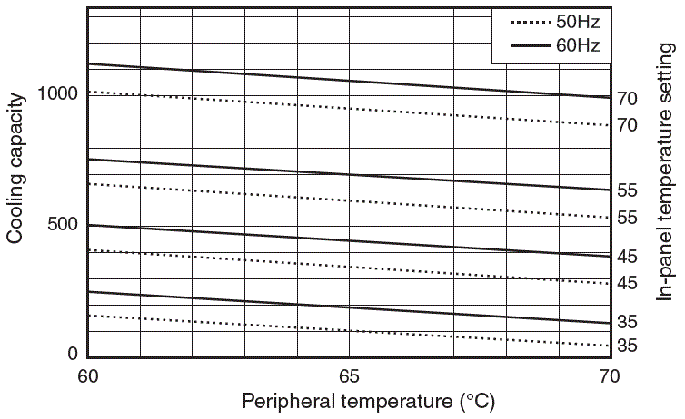

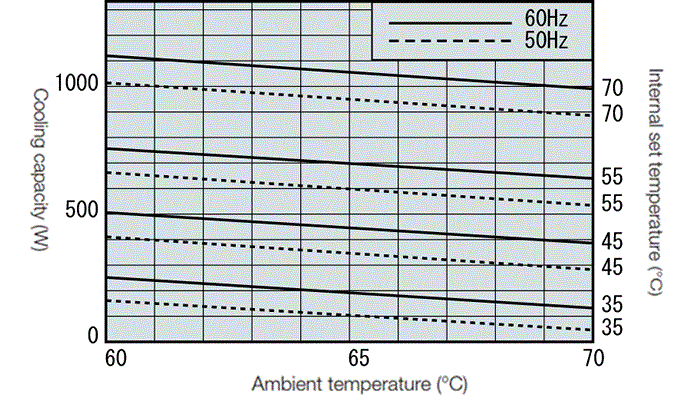

Capacity characteristics graph
*Contact our sales representative if you are using the control panel cooler in an environment close to the permissible ambient temperature upper limit.
【Note】
Please read the instruction manual before use and use the product correctly.
◯Products will be delivered to the vehicle (at designated locations within Japan, excluding remote islands).
Depending on model and number of units, a separate charter service (additional fees apply) may be required.
◯For overseas deliveries, we recommend using separate overseas packaging.
Please check specification of Enclosure Cooling Unit and install an appropriate circuit breaker (wiring breaker) between Enclosure Cooling Unit and power supply.
Using the device outside of rating power supply range may cause malfunctions.
Please perform regular maintenance.
Neglecting regular maintenance can lead to product performance degradation and malfunctions.
◯During winter when outside temperatures are low, do not operate Enclosure Cooling Unit continuously.
