Fluorocarbon outdoor specification
ENC-AS510HDS
| Cooling capacity(W)*1 | 500／550 |
|---|---|
| Rated voltage(V) | Single-phase 100V AC |
| Mounting Type | Side-mounting |
| External Dimensions(mm) | H970×W420×D230 |
| Weight(kg) | about 33 |
Inquiry
Download
ENC-AS510HDS Product details
Specifications
See specification in the catalogue(50/60Hz)
| Mounting Type | Side-mounting |
|---|---|
| Cooling capacity(W)*1 | 500／550 |
| Setting temperature range (℃) | 25～40 |
| Use Area Temperature (℃) *2 | -10～45 |
| use area Humidity (%RH) *2 | 95 or less (no condensation) |
| External dimensions (mm) *3 | H970×W420×D230 |
| Weight(kg) | about 33 |
| Coating Color | Light beige equivalent color (approximate Munsell 5Y7/1) |
| Rated voltage(V) | Single-phase 100V AC |
| current consumption: rating (A) *1 | 3.2／3.2 |
| Starting current (A) | 12月13日 |
| power consumption: rating (W) *1 | 280／310 |
| Recommended breaker capacity (A) | 15 |
| Dustproof/waterproof protection rating *4 | IP55 equivalent (internal circulation route) |
| Refrigerant / Amount(g) | R134a 170g |
| noise (dB(A)) *5 | about 46 |
| External output | alarm output (non-voltage a contact: AC250V 2A/DC30V 2A resistive load) |
| Display | Panel temperature/Error/RUN |
*1 rating value at ambient/internal panel temperature of 35°C and rated voltage.
*2 Use Area Temperature and use area Humidity are used to determine the operating range and do not guarantee rating performance.
*3 Excluding protrusions.
*4 performance measured in tests conforming to JIS C 0920. Drain outlet is blocked.
*5 The height from the floor is the average value measured at the center of the product, 1m horizontally from the front, left and right sides of the product.

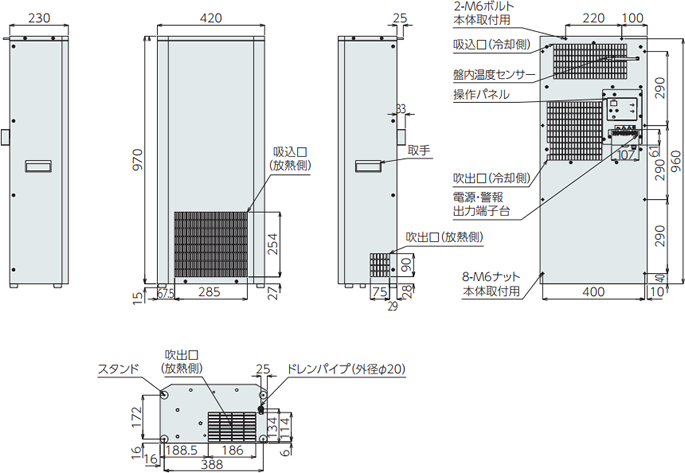

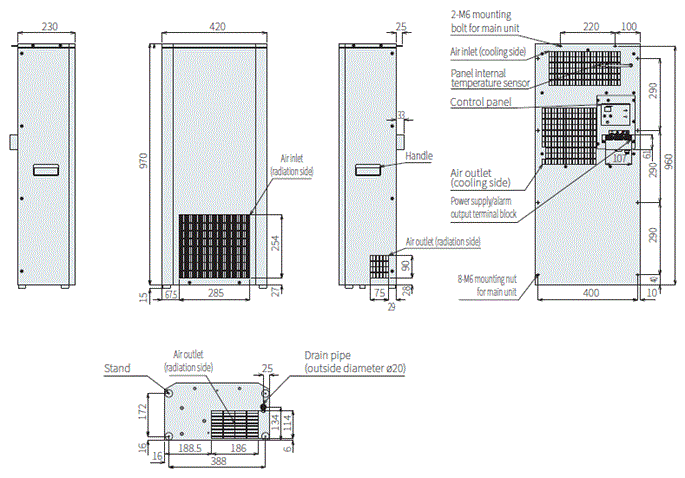

External dimensions

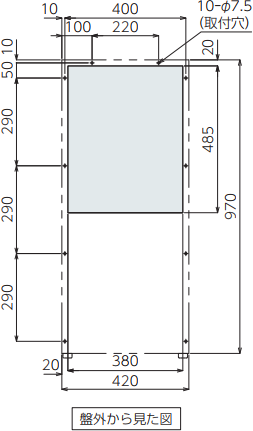

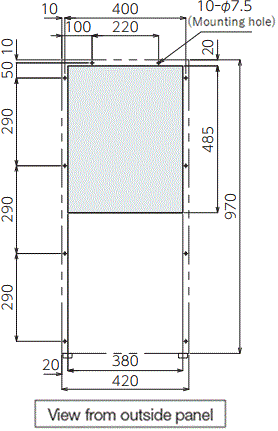

Diagram of Panel Cutout

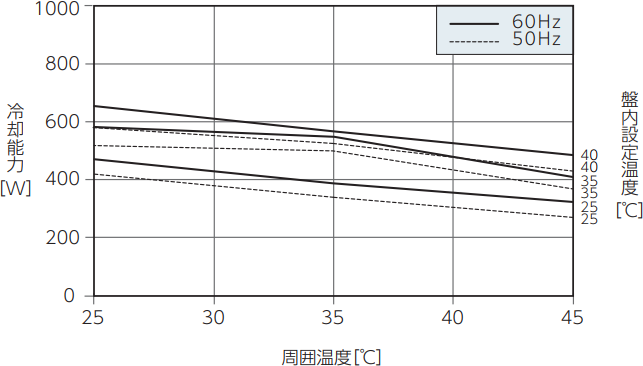

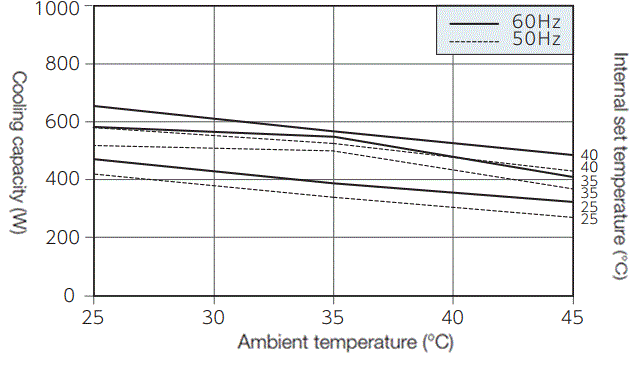

Capacity characteristics graph
*If you plan to use the FA cooler in environment close to the upper limit of the allowable ambient temperature, please consult with our sales representative.
【Note】
◯Please read the instruction manual before use and use it correctly.
◯Products will be delivered to the vehicle (designated domestic locations, excluding remote islands).
◯ Depending on model and number of vehicles, a charter flight may be required (additional costs may apply).
◯For overseas delivery, we recommend separate overseas packaging.
Check specification of the FA cooler and install an appropriate circuit breaker (wiring circuit breaker) between the FA cooler and power supply.
◯Using the product outside rating power supply range may cause it to malfunction.
Please perform regular maintenance.
◯Failure to perform regular maintenance may result in deterioration of product performance or problems.
Do not operate the FA cooler continuously during low outdoor temperatures in winter.
When disposal of this product, please comply with all applicable laws and regulations and dispose of it appropriately.
