Enclosure Cooling Unit (refrigerant)
ENC-AS1010HDS
| Cooling capacity(W)*1 | 900／1000 |
|---|---|
| Rated voltage(V) | Single-phase 100V AC |
| Mounting Type | Side-mounting |
| External Dimensions(mm) | H1050×W420×D255 |
| Weight(kg) | 約38 |
Inquiry
Download
ENC-AS1010HDS Product details
Specifications
See specification in the catalogue(50/60Hz)
| Mounting Type | Side-mounting |
|---|---|
| cooling capacity (W) * | 900／1000 |
| Setting temperature range (℃) | 25～40 |
| Use Area Temperature (°C) * | -10～45 |
| use area Humidity (%RH) * | 95 or less (no condensation) |
| External dimensions (mm) * | H1050×W420×D255 |
| Weight(kg) | 約38 |
| Coating Color | Light beige equivalent color (approximate Munsell 5Y7/1) |
| Rated voltage(V) | Single-phase 100V AC |
| current consumption: rating (A) * | 5.1／4.7 |
| Starting current (A) | 23／20 |
| power consumption: rating (W) * | 430／460 |
| Recommended breaker capacity (A) | 15 |
| Dustproof and splashproof protection rating * | IP55 equivalent (internal circulation route) |
| Certification | |
| refrigerant types | R134a |
| refrigerant filling amount (g) | 260 |
| noise (dB(A)) * | 約49 |
| External output | alarm output (non-voltage a contact: AC250V 2A/DC30V 2A resistive load) |
| Display | Panel temperature/Error/RUN |
*1 rating value at ambient/internal panel temperature of 35°C and rated voltage.
*2 Use Area Temperature and use area Humidity are used to determine the operating range and do not guarantee rating performance.
*3 Excluding protrusions.
*4 performance measured in tests conforming to JIS C 0920. Drain outlet is blocked.
*5 The height from the floor is the average value measured at the center of the product, 1m horizontally from the front, left and right sides of the product.

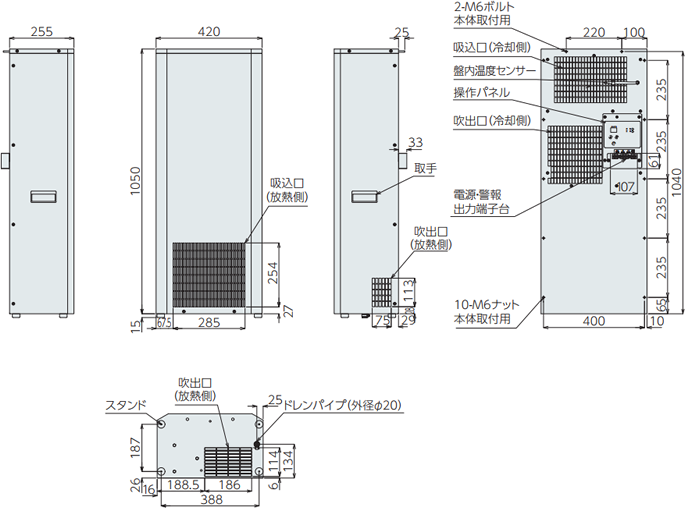

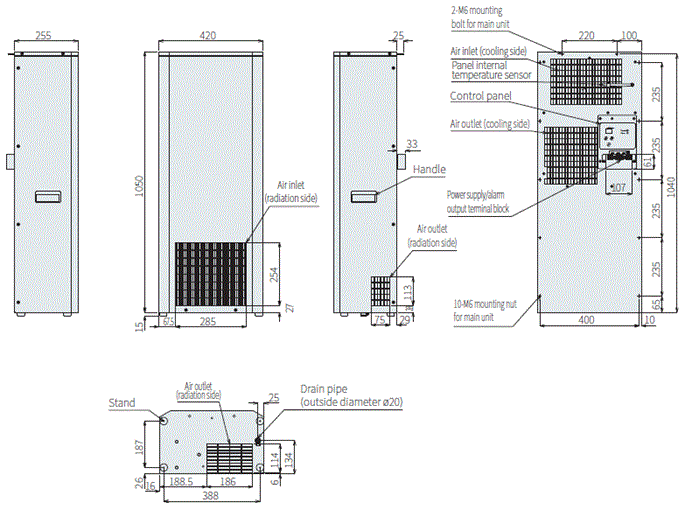

External dimensions

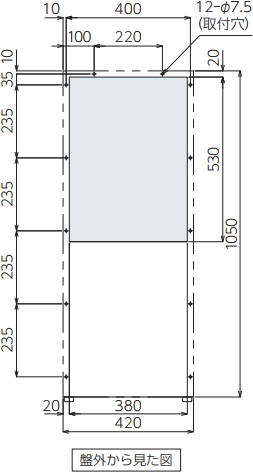

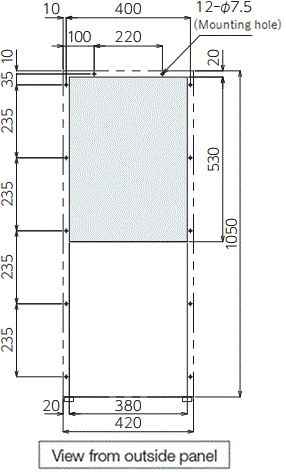

Diagram of Panel Cutout

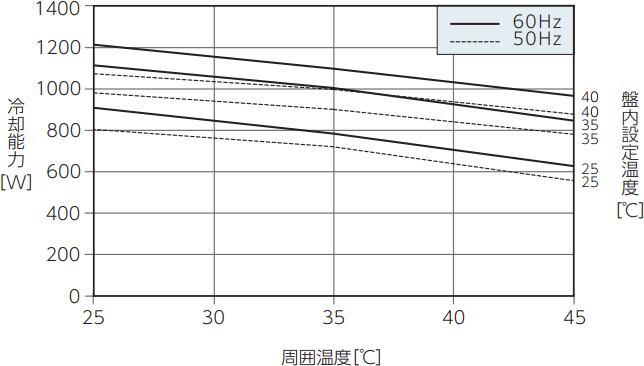

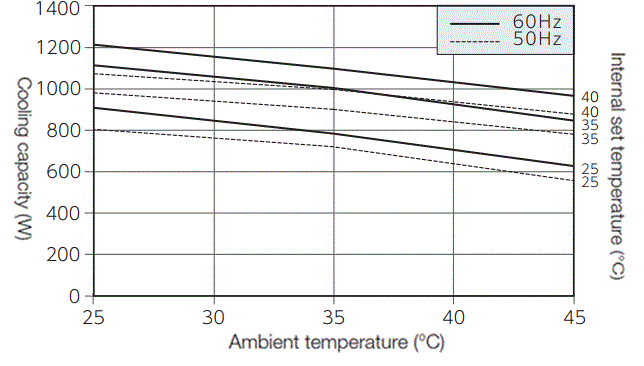

Capacity characteristics graph
*Contact our sales representative if you are using the control panel cooler in an environment close to the permissible ambient temperature upper limit.
【Note】
Please read the instruction manual before use and use the product correctly.
◯Products will be delivered to the vehicle (at designated locations within Japan, excluding remote islands).
Depending on model and number of units, a separate charter service (additional charges apply) may be required.
◯For overseas deliveries, we recommend using separate overseas packaging.
Please check specification of Enclosure Cooling Unit and install an appropriate circuit breaker (circuit breaker) between Enclosure Cooling Unit and power supply.
Using the device outside of rating power supply range may cause malfunctions.
Please perform regular maintenance.
Neglecting regular maintenance can lead to product performance degradation and malfunctions.
◯During winter when outside temperatures are low, do not operate Enclosure Cooling Unit continuously.
When disposal of this product, please do so in accordance with all applicable laws and regulations.
