Plate type
ENH-P120L-200CE-N
| Rating capacity | 20／22 |
|---|---|
| Rated voltage(V) | Single-phase 200V AC |
| Mounting Type | Mounting on the side of the panel |
| External Dimensions(mm) | H600×W320×D70 |
| Weight(kg) | 10 |
Inquiry
Download
ENH-P120L-200CE-N Product details
Specifications
| Mounting Type | Mounting on the side of the panel |
|---|---|
| Cooling system | Plate type |
| Rating capacity | 20／22 |
| Ambient temperature(℃) | 0 to 60 or less |
| Ambient humidity(%RH) | 10～85 (No condensation) |
| External Dimensions(mm) | H600×W320×D70 |
| Weight(kg) | 10 |
| Coating Color | Hot-dip galvanized/unpainted |
| Rated voltage(V) | Single-phase 200V AC |
| current consumption (A) | 0.33/0.30 (MAX) |
| power consumption (W) | 45/42 (MAX) |
| Certification | CE |
* rating capacity: Heat exchange capacity when the temperature difference between inside and outside the panel is 20K.
*Please use power-supply voltage within ±10% of rated voltage.
*The protective cover and filter are not included in the shipping packaging of the main unit.
*Two types of paid option are available: ① Protective cover & filter, and ② Velcro & filter.
For details, please contact our sales representative.
*Please note that model, specification and other information may be changed without notice.

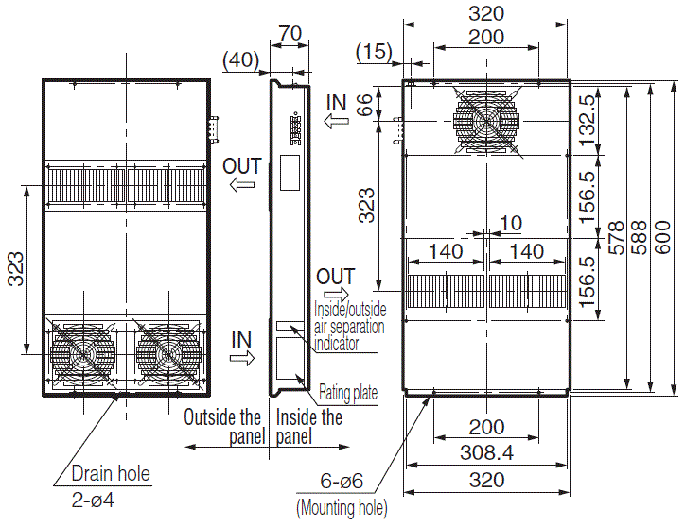

External dimensions

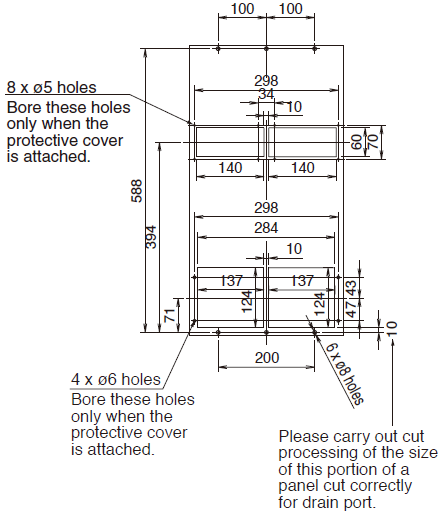

Diagram of Panel Cutout
*Diagram viewed from outside panel.
*Please maintain the thread pitch when processing.
【Note】
○Please read the instruction manual before use and use it correctly.
○Products will be delivered to the vehicle (designated domestic locations, excluding remote islands).
○Depending on model and number of units, a charter flight may be required (additional costs may apply).
For overseas deliveries, we recommend separate overseas packaging.
Using the product outside rating power supply range may cause it to malfunction.
○ Fix the front cover with a tightening torque of 4.9 to 7.4 N·cm.
Please perform regular maintenance.
○Failure to perform regular maintenance may result in deterioration of product performance or problems.
