Control panel heat exchangers ENH-P140L-200CE-N
Control panel heat exchangers
Plate
Inside side-mount
ENH-P140L-200CE-N
ENH Series
With a powerful heat exchanger of 40 W, its capabilities are demonstrated in all kinds of control panels.
- Plate
| Rated capacity(W/K) | 35/43 |
|---|---|
| Rated Voltage(V) | Single-phase AC 200 |
| Mounting type | Inside side-mount |
| External dimensions(mm) | H650×W380×D85 |
| Weight(kg) | 14 |
Product Details for ENH-P140L-200CE-N
Specifications
| Mount type | Inside side-mount |
|---|---|
| cooling method | Plate |
| Rated capacity (W/K) | 35／43 |
| Use Area Temperature (°C) | 20～60 or less |
| Use Area Humidity (%RH) | 10～85 (No condensation) |
| External dimensions (mm) | H650×W380×D85 |
| Weight (kg) | 14 |
| Coating Color | Hot-dip galvanized steel sheet / unpainted |
| Rated Voltage (V) | Single-phase AC 200 |
| Consumption Current (A) | 0.48/0.42 (MAX) |
| Restraint current (A) | 0.74/0.64 (MAX) |
| Consumption wattage (W) | 62/60 (MAX) |
| Certification | CE / |
Note: Rated capacity: Heat exchange capacity when the temperature difference inside and outside the panel is 20K.
Note: Constraint current: Maximum current when the motor is in a constrained state.

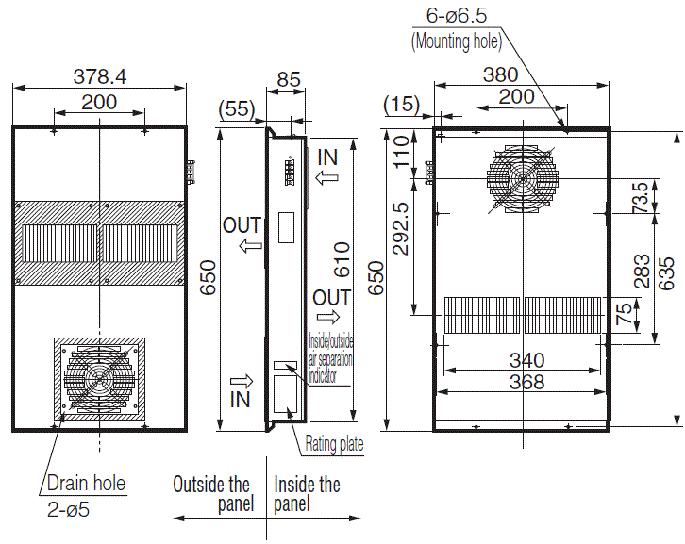

External dimensions

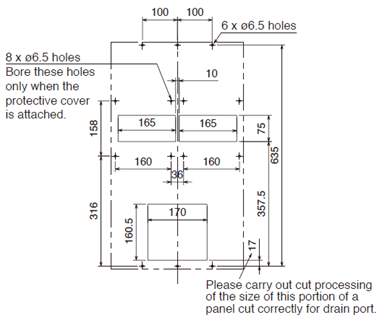

Diagram of Panel Cutout
*Figure seen from control board outside.
*Please keep screw pace on the occasion of processing.
*Standard panel cut will not be changed even if a model change is carried out (some exceptions apply).
[Caution]
To ensure proper operation of this equipment, read the operation manual before use.
Depending on model and quantity, separate charter delivery may be arranged (additional costs apply).
Overseas at the time of delivery, we recommend packing for overseas separately.
Cause of failure and be used at the rated power supply out of range.
Secure the front cover with a tightening torque of 4.9 to 7.4 Ncｍ.
Please use the service and maintenance on a regular basis.
Failure to maintain regular maintenance, you may be a factor in product performance degradation trouble.
