Heat pipe type
ENH-165L(R)-O-100
| Rating capacity | 65／78 |
|---|---|
| Rated voltage(V) | Single-phase 100V AC |
| Mounting Type | Outside panel side mounting |
| External Dimensions(mm) | H655×W388×D90 |
| Weight(kg) | 13 |
Inquiry
Download
ENH-165L(R)-O-100 Product details
Specifications
| Mounting Type | Outside panel side mounting |
|---|---|
| Cooling system | Super heat conduction pipe system (heat pipe) Completely HFC alternative (using pure water) |
| Rating capacity | 65／78 |
| Ambient temperature(℃) | 0 to 60 or less |
| Ambient humidity(%RH) | 10～85 (No condensation) |
| External Dimensions(mm) | H655×W388×D90 |
| Weight(kg) | 13 |
| Coating Color | Munsell 5Y 7/1 Equivalent color of light beige |
| Rated voltage(V) | Single-phase 100V AC |
| current consumption (A) | 1.92/1.68 (MAX) |
| Restraint current (A) | 3.0/2.6 (MAX) |
| power consumption (W) | 124/120 (MAX) |
Note) The (R) in model indicates that it complies with the RoHS directive.
Note) rating capacity: Heat exchange capacity when the temperature difference between inside and outside the panel is 20K.
Note) Locked current: Maximum current when the motor is locked.
Included parts list
| Protective Cover | 1 piece |
|---|---|
| filter | 2 sheets |
Note: Delivery times may vary depending on stock availability, so please be sure to check with your sales representative.
*Please note that model, specification and other information may be changed without notice.

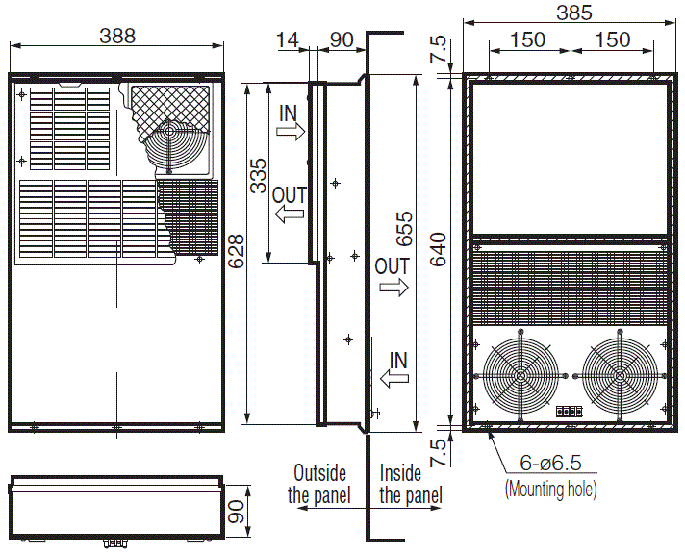

External dimensions

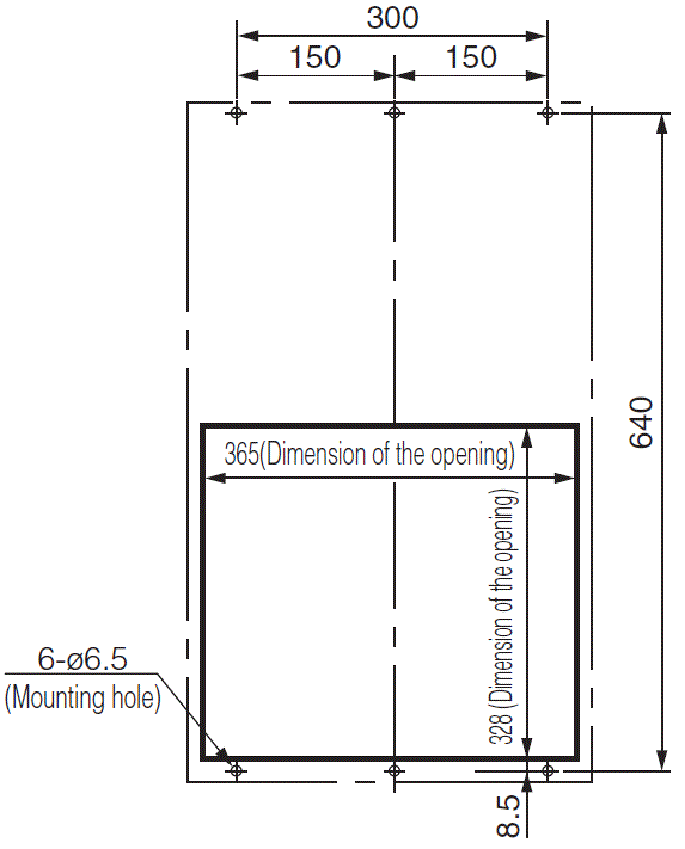

Installation drawing (standard panel cut)
※ panel This is a diagram seen from the outside.
*Please keep the thread pitch when machining.
*The standard panel cut will not be changed even if the model is changed (there are some exceptions).
【Note】
○Please read the instruction manual before use and use it correctly.
○Products will be delivered to the vehicle (designated domestic locations, excluding remote islands).
○Depending on model and number of units, a charter flight may be required (additional costs may apply).
For overseas deliveries, we recommend separate overseas packaging.
Using the product outside rating power supply range may cause it to malfunction.
○ Fix the front cover with a tightening torque of 4.9 to 7.4 N·cm.
Please perform regular maintenance.
○Failure to perform regular maintenance may result in deterioration of product performance or problems.
○The heat pipe may burst if heated above 200°C. Do not throw it into a fire.
○When disposal, cut out a part of the heat pipe.
