Control panel heat exchangers ENH-B4025
Control panel heat exchangers
Temperature Adjustment Unit
ENH-B4025
ENH Series
Supports heat control operations of control panel heat exchangers.
| External dimensions(mm) | H70×W40×D25 |
|---|---|
| Weight(kg) | 0.7 |
Product Details for ENH-B4025
Specifications
| External dimensions (mm) | H70×W40×D25 |
|---|---|
| Weight (kg) | 0.7 |
| Operation setting temperature (℃) | 40 |
| Reset temperature (℃) | 25 |
| Tolerance (℃) | ±5 |
| External output | Alarm output (250V 2.5A) |
Note: ON during operation, OFF during recovery

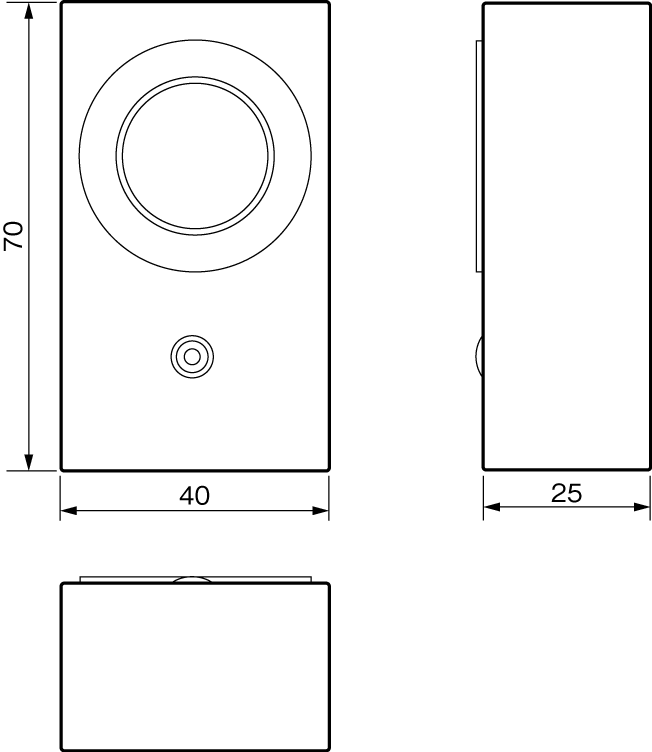

External dimensions

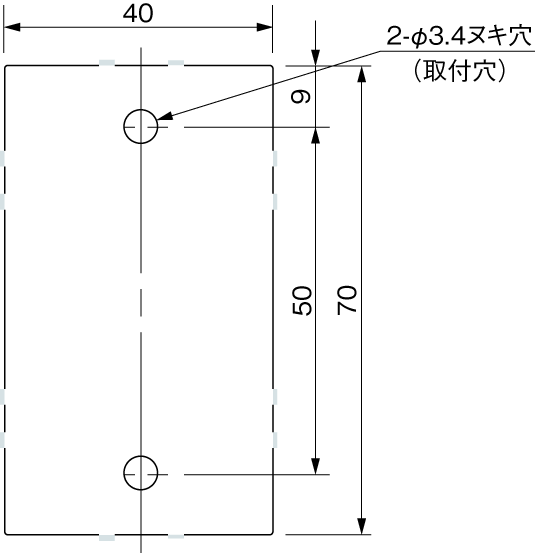

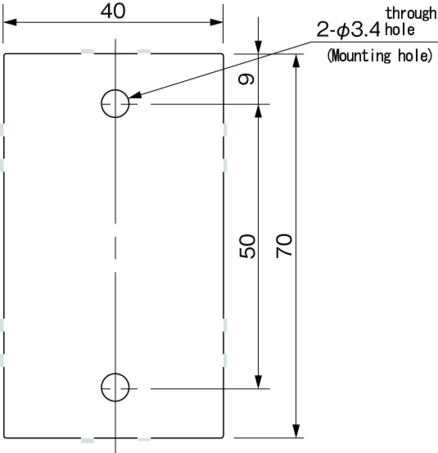

Diagram of Panel Cutout
[Caution]
When powering up the device beyond its rated current, insert an appropriate relay etc.
Refrain from using the device outside the housing of the control panel etc.
Avoid using the device in hot, humid places or those where there are a lot of corrosive gases etc.
Avoid using the device in places where there is an excessive amount of dust, oil mist etc.
Do not remove the cover when the power is turned on.
