Dust Collector Details
GDE-A3700
Dust Collector
High-performance dust collector (With fume box option)
GDE-A3700
GDE Series
About the Ultra-fine Filter Standard Green Pulse method
- Fume box specifications
| Collection method | Filter method |
|---|---|
| Clearing method | Green pulse method |
| Blower motor output(kW) | 3.7 |
| Air flow(m3/min) | 15/30/40 |
| External dimensions(mm) | H1835×W1200×D850 |
| Weight(kg) | 363 |
Product Details for GDE-A3700
Specifications
| Specifications | Fume box installation model |
|---|---|
| Fan motor(kW) | 3.7 |
| Air flow(m3/min) | 15/30/40 |
| Fan static pressure(kPa) | 3.12/3.04/2.88 |
| External static pressure(kPa) | 2.92/2.39/1.77 |
| Frequency adjustment range(Hz) | 20～60 |
| Operating temperature(℃) | 40 or less (No condensation) |
| Suction gas temperature(℃) | 40 or less (No condensation) |
| Clearing method | Green pulse method |
| Used compressed air pressure(MPa) | 0.5 |
| Standard air consumption(L/min [N.T.P]) | 38 |
| External dimensions(mm) | H1835×W1200×D850 |
| Weight(kg) | 363 |
| Suction opening dimensions(φmm) | 248 |
| Coating color | Coating color main unit: JPMA N-75 Panels: JPMA N-35 |
| Rated voltage(V) | Three-phase AC200V (50Hz/60Hz)or 220V (60Hz) |
| Power supply wire gauge | □3.5 |
| Recommended breaker amperage(A) | 50 |
| Component / Fan | Turbo fan |
| Component / Motor | IE3 Vertical fl ange motor |
| Component / Main filter Area(m2) | 54 |
| Component / Ultra-fine filter ・ Count (Unit) | 9 |
| Component / Integrated pilot valve (Unit) | 3 |
| Component / Dust box ・ capacity (L×Unit) | 17×2(metal) |
| Component / Caster (φmm×Unit) | 100×4 |
| Display type | Touch-panel |
| Control output / Alarm output | Arbeit contact Non-voltage (Voltage：DC30V/AC220V or lessMaximum load：2A or less (Resistive load) /80VA(Inductive load)) |
| Control output / Caution output | Arbeit contact Non-voltage (Voltage：DC30V/AC220V or lessMaximum load：2A or less (Resistive load) /80VA(Inductive load)) |
| Control output / Operation output | Arbeit contact Non-voltage (Voltage：DC30V/AC220V or lessMaximum load：2A or less (Resistive load) /80VA(Inductive load)) |
| Control input / Operation, stop input | Non-voltage input |
| Control input / Pulse disabled | Non-voltage input |
| Control input / Pulse running | Non-voltage input |
| Noise(dB[A]) | 68±2 |
※Air flow・Static pressure：All pressures are displayed when the device is running at 60Hz.

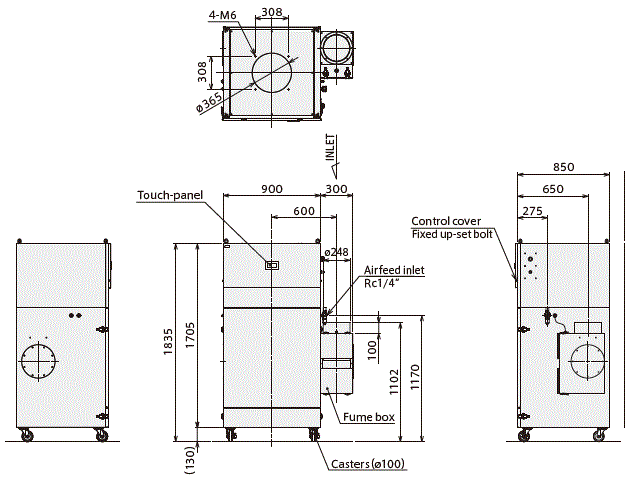

External dimensions

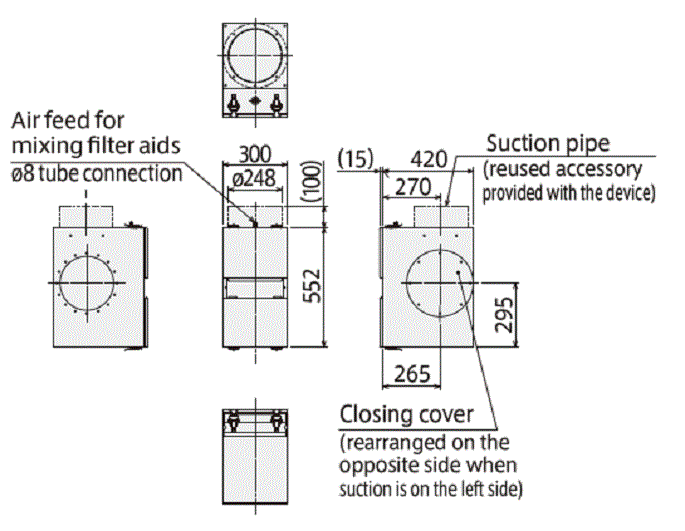

Fume box

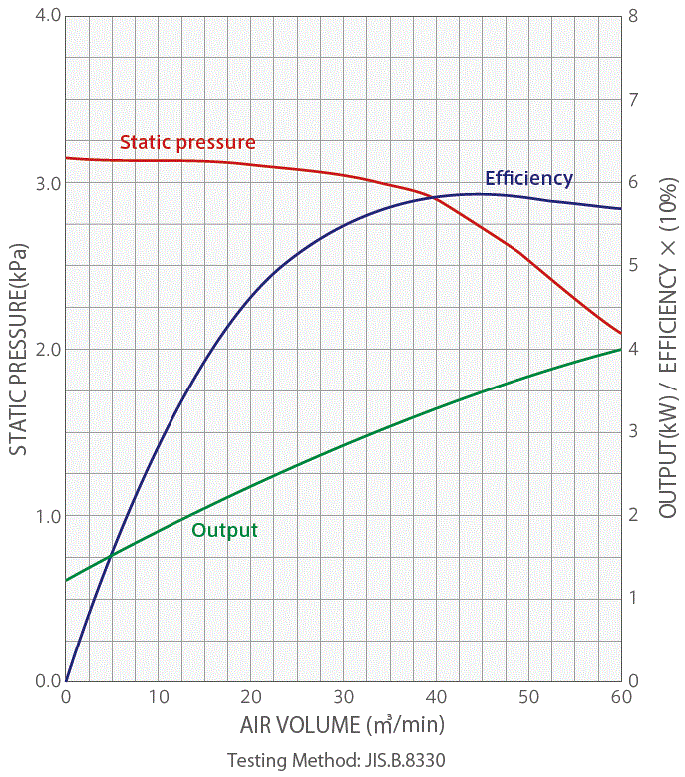

Fan motor performance characteristics curve
