Flange OP-9070108/OP-9070109/OP-9070110
Specification
| Model | Product name | Size(φmm) |
|---|---|---|
| OP-9070108 | Exhaust duct connection flange(for GDE-A1500) | φ280 |
| OP-9070109 | Exhaust duct connection flange(for GDE-A2200) | φ315 |
| OP-9070110 | Exhaust duct connection flange(for GDE-A3700) | φ365 |
Dust checker OP-9050026

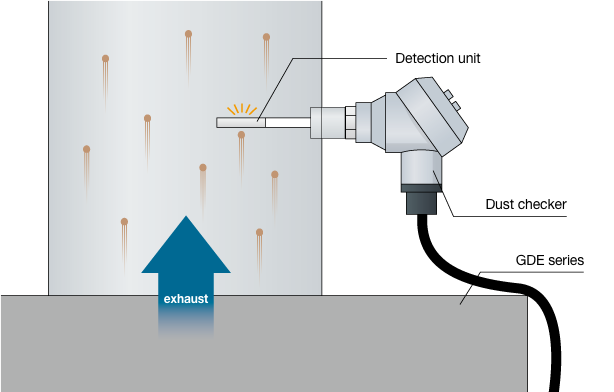

Detects the frictional electric charge of the dust in contact with the detector.
Connection example

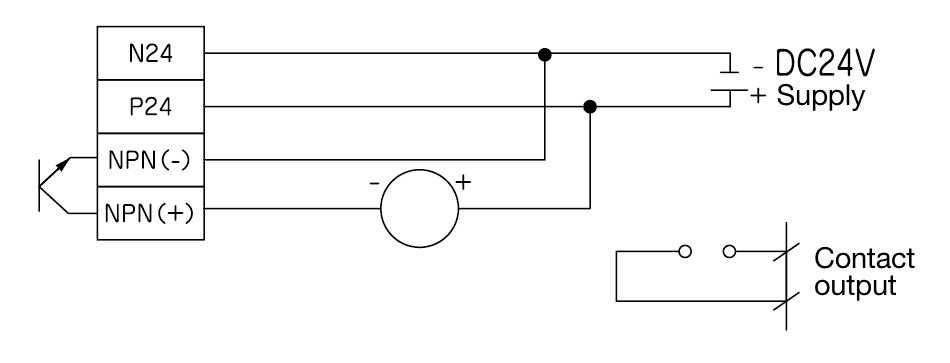

For relay connection
For PLC connection
Specification
| Product name | Dust checker | ||
|---|---|---|---|
| Model | OP-9050026 | ||
| Structure | Integrated sensor and converter structure | ||
| Equipment specifications | Power supply(V) | DC24 ±10% | |
| Power consumption(W) | 2 | ||
| LED indicator | Power indicator lamp | Green (ON = Lit) | |
| Detection level indicator lamp | Red (Detected = OFF, Not detected = ON) | ||
| Signal output | Open collector output | 1 output (NPN: b contact output) | |
| Output capacity (load voltage/V, load current/mA) | Load voltage: DC5 - 30, Load current: 50 Max | ||
| Lead drawer exit | G1/2 (compatible cable size: φ4 ~ φ8 mm) | ||
| Protection structure | IP54 (cover, wiring and tightening to both lead drawer exits) | ||
| Dimensions | probe (mm) | 50 (below insulated part) | |
| Insulated part(mm) | 50 | ||
| Material | probe | SUS304 | |
| Insulated part | polyacetal (POM) | ||
| Housing | aluminium die cast | ||
| Permissible temperature(℃) | 0～＋55 | ||
| Allowable humidity(%) | 90 or less (no condensation) | ||
| Mounting method | G 1/2 Screw mounting | ||
| Weight(kg) | About 0.5 | ||

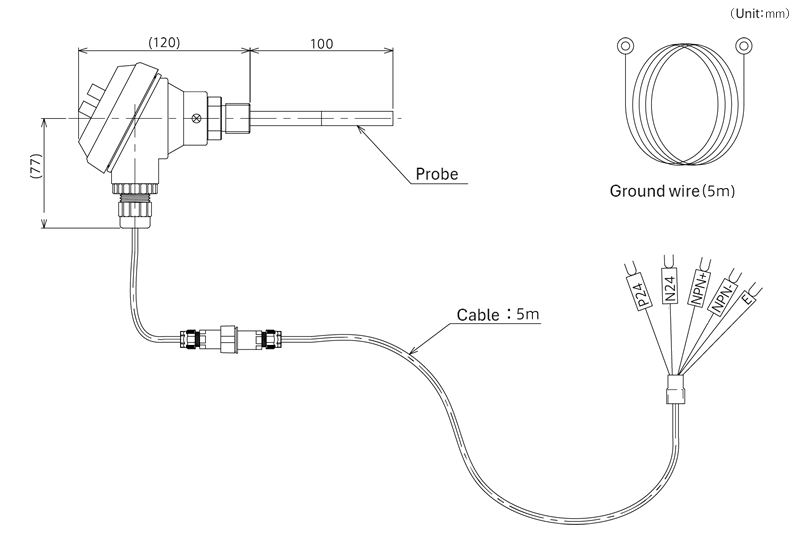

External dimensions
