HFC alternative Air-cooling type
VSC-N1500
| Ambient temperature(℃) | 5～45 |
|---|---|
| Cooling capacity(W)*1 | 1350／1580 |
| power-supply voltage (V) | 3 phase AC200 |
| External Dimensions(mm) | H720×W360×D449 |
| Weight(kg) | 53 |
Inquiry
Download
VSC-N1500 Product details
Specifications
| Cooling method | Air-cooling type |
|---|---|
| Cooling capacity(W)*1 | 1350／1580 |
| Setting standard/tuning type | Room temperature, aircraft temperature |
| Control target/tuning type | Outlet oil temperature |
| Tuning range/tuning type (℃) | -9.9 to +9.9 against the set reference temperature |
| Control target/fixed type | Outlet oil temperature |
| Control range/fixed type (℃) | 5～45 |
| usable oil | Lubricating oil, petroleum-based hydraulic oil |
| Temperature control stability (℃) | ±0.1 |
| Kinematic viscosity (mm 2 /s) | 1.4 to 200 (ISO VG2 to 68) |
| Ambient temperature(℃) | 5～45 |
| External Dimensions(mm) | H720×W360×D449 |
| Weight(kg) | 53 |
| Coating Color | Munsell N7 |
| power-supply voltage (V) | 3 phase AC200 |
| current consumption (A) | 2.8／2.6 |
| power consumption (W) | 600／720 |
| Certification | CE |
| refrigerant /filling amount (g) | R1234yf 306g |
| Noise (dB(A)) | 70 |
| Pump/ rating output (W) | 400 |
| Pump/discharge volume (ℓ/min) | 12／14.4 |
| Relief valve pressure setting (MPa) | 0.6 |
| Piping/oil outlet connection diameter | Rc3/4 |
| Piping/oil inlet connection diameter | Rc3/4 |
| safety circuit/compressor | Thermal protectors, electromagnetic switches |
| safety circuit/ freezing cycle | pressure switch |
| safety Circuit/Pump | Electromagnetic switches, relief valves |
| Input/Output/ alarm output | Non-voltage a contact b contact |
| Input/output/run, stop input | Non-voltage a contact |
* cooling capacity, current consumption, and power consumption are values when the room temperature is 35°C and the oil temperature is 35°C (ISO VG5).
*Cutting (fluids), polishing (fluids), water and water-soluble liquids, chemicals and food liquids, highly volatile liquids with poor lubricity such as gasoline, kerosene, thinner, and fire-retardant oils
Hydraulic oil cannot be used.
*Temperature control stability is stability of the main body temperature indicator when the load is constant.
*Please use power-supply voltage within ±10% of rated voltage.

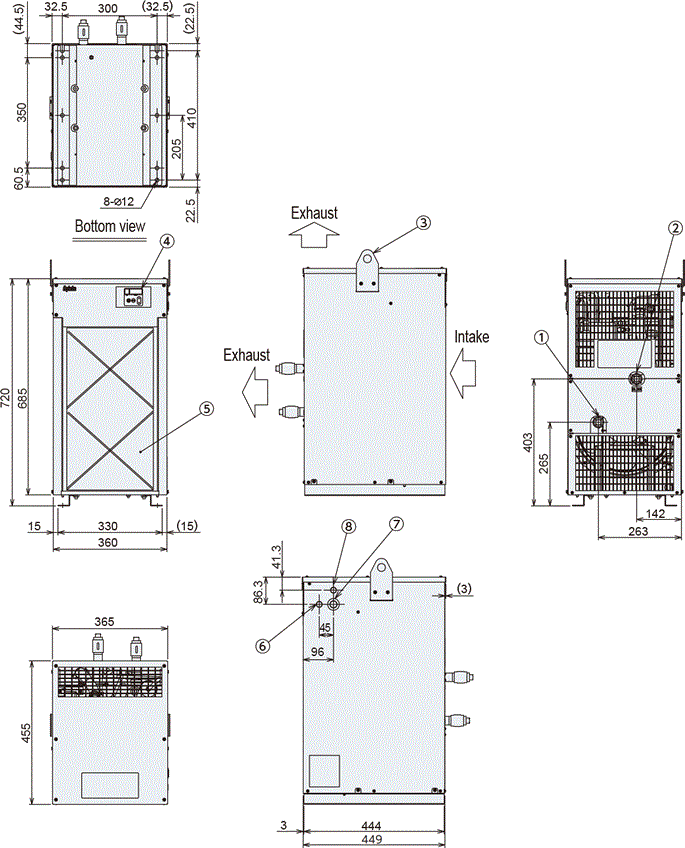

External dimensions
① Circulating oil inlet Rc3/4
② Circulating oil outlet Rc3/4
③ Hanging hardware
④Operation control panel
filter
⑥ External input/output wiring port Φ22
power supply wiring port Φ28
⑧ External temperature thermistor wiring port Φ22 (option)

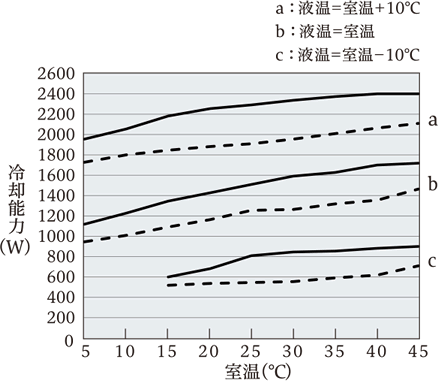

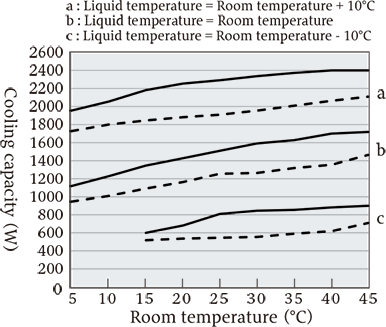

cooling capacity characteristics
*Oil used: ISO VG5
* cooling capacity varies depending on conditions such as room temperature, liquid temperature, and oil dynamic viscosity.
○Please read the instruction manual before use and use it correctly.
○Products will be delivered to the vehicle (designated domestic locations, excluding remote islands).
○Depending on model and number of units, a charter flight may be required (additional costs may apply).
For overseas deliveries, we recommend separate overseas packaging.
○If you would like to arrange for a meeting to be held, please contact us separately.
○Please check specification and install an appropriate circuit breaker (wiring circuit breaker) between this product and power supply.
Using the product outside rating power supply range may cause it to malfunction.
Please perform regular maintenance.
○Failure to perform regular maintenance may result in deterioration of product performance or problems.
When disposal of this product, please comply with all applicable laws and regulations and do so appropriately.
