PAU SERIES/Precision Air Conditioning Equipment/Local Air Conditioning Equipment

Energy-saving comes a 10m 3 / min type.




Cooling Method Air-Cooled Type
Type Temperature Controller (energy conservation)
Cooling Capacity (W) 6400/7200
Heating Capacity (W) 9100/9900
Temperature Control Precision (°C) +-0.1
Setting Temperature Range (°C) 10~50
Use Area Temperature (°C) -5-35 (change in temperature gradient: within 1°C/1h)
Use Area Humidity (%RH) 15-85(change in temperature gradient: within 5%/1h) (No condensation)
Processed Air Volume (m2/min)(50Hz) 20/22

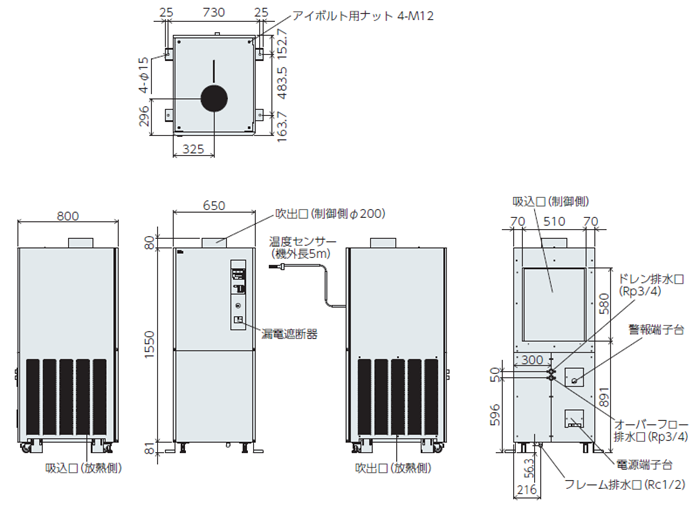

External Dimensions(mm) H1631×W650×D800
Volume (kg) 220
Coating Color Ivory(JPMA: Semi-gloss Y22-85B)
Blower Duct Connection Diameter (mm) φ200 with damper
Rated Voltage (V) Three-phase AC200
Consumption Current (A) 11/12.5
Wattage (W) 3000/4000
Drain Discharge Water Connection Diameter (mm) 20A Female socket (Rp3/4)
Coolant R-407c 1700g
Exhaust Air Volume (m3/min) 33/39
Safety Circuit/Main Circuit Earth leakage circuit breaker (20A 30mA)
Safety Circuit/Blower Overcurrent relay, delay timer (3 minutes), surge absorber
Safety Circuit/Compressor Low temperature thermostat driving prevention, overcurrent relay, motor protectors, surge absorber
Output/Main Unit Malfunction Output No-voltage contact a (AC250V / 2A / Resistive load)
Output/Temperature Control Top-Bottom Limit Alarm No-voltage contact a (AC250V / 2A / Resistive load)
Cooling and heating capacity is the value in the body of the balloon when RH 25°C / 40% ambient temperature.
The temperature control precision constant temperature and humidity chamber JTMK01 - are based on the method set forth in Section 2 (Japan Testing Machinery Association) how to display performance test methods and performance.
Guarantee the accuracy of the point and one outlet in reading body temperature controller equipped with air conditioners, duct thermal interference due accuracy is not covered under warranty.
In addition, this product is intended to suppress the fluctuation of air temperature, but do not guarantee the absolute value of the temperature.
(For bias correction function is equipped.)
Ambient temperature and humidity.
Some may not be able to also control the temperature within the range set.
Is the value of the processing air volume in the outlet body.
Dimensions above are body dimensions. Mounting flange, protrusions are not included.
Current consumption, power consumption may vary depending on surrounding environment temperature and humidity and conditions of use.
For air-cooled type, there is waste heat from the equipment. (With exhaust chamber as an option)
Ambient environment at low temperatures below ambient temperature of the protective device is used to work, we will automatically shut down the compressor only.
In that case, we can not guarantee the accuracy of the above, please use the ambient temperature in the range of use.
The actual mounting on the check, I hope specification contained in the instruction manual, the precautions.
If you need instruction manual in advance on the design, please contact your nearest sales office.

Parts list supplied

Anchor Mount 2
User Manual 1

Optional Parts List

Duct Set o
Return Chamber o
Exhaust Chamber o
Delivery, please contact us.


Sensor dimensions

Temperature Control Range Chart

[Range: temperature control *1]
Range showed a correlation between temperature and ambient temperature the unit can be configured.
Temperature control accuracy of this unit (+- 0.5 °C) is applied to the set temperature within this range.
[Range: temperature control *2]
Although outside the scope of warranty (+- 0.5 °C) temperature control accuracy, range and showed a correlation of temperature and ambient temperature the unit can be configured.
*Measurement conditions
AC100V 60Hz (1) single-phase power supply:
Ambient humidity: 40% RH (2)
Blowing air volume: 1.0m 3 / min (3)
Sensor is mounted in the body of the performance of the outlet air outlet body (4)
The body, without mounting the fan duct (5)

Please use it properly Read the manual before using.
Delivery of the items will be passed on the car. (Domestic location specified, except islands)
Will be (additional cost) Charter flights handled separately by the number-type.
Overseas at the time of delivery, we recommend packing for overseas separately.
If interested, please contact us to adjust attendance.
Please check through the book between items and power (circuit breakers) to the appropriate breaker specification.
Cause of failure and be used at the rated power supply out of range.
Please to the service and maintenance on a regular basis.
Failure to maintain regular maintenance, you may be a factor in product performance degradation trouble.
When disposing of this product, you should comply with various laws and regulations, please go to the appropriate.
