PAU SERIES/Precision Air Conditioning Equipment/Local Air Conditioning Equipment

Standard
PAU-A1400S-HC
Temperature and humidity control type advanced technology has been condensed.
  • 1200/1400
  • Three-phase AC200
  • Air-Cooled Type
  • Temperature and humidity Controller
    Type Related Links (1)
  • H1065×W400×D715
  • 98
  • 3.7/4.8
  • (50/60Hz)

Lineup

PAU-A1400S-HC

Specifications(50/60Hz)

Cooling Method Air-Cooled Type
Type Temperature and humidity Controller
Cooling Capacity (W) 1200/1400
Heating Capacity (W) 2000
Humidifying Capacity (kg/h) 5.2
Temperature Control Precision (°C) +-0.2
Setting Temperature Range (°C) 20~30
Humidity Control Precision (%RH) +-1.0
Setting Humidity Range (%RH) 40~80
Use Area Temperature (°C) 20 ~ 35 (change in temperature gradient: within 1°C/1h)
Use Area Humidity (%RH) 10 ~ 85 (change in temperature gradient: within 5%/1h) (No condensation)
Processed Air Volume (m2/min)(50Hz) 3.7/4.8
External Dimensions(mm) H1065×W400×D715
Volume (kg) 98
Coating Color Ivory (JPMA: Semi-gloss Y22-85B)
Blower Duct Connection Diameter (mm) φ100
Rated Voltage (V) Three-phase AC200
Consumption Current (A) 2.8/2.6(MIN) 21.8/21.4(MAX)
Wattage (W) 550/650(MIN) 6300/6300(MAX)
Humidifier/Water Supply Volume (ℓ/h) 5.2
Humidifier/Water Supply Pressure (MPa) 0.03~0.5
Water Supply Temperature (°C) 0~50
Humidifier/Water Supply Connection Diameter (mm) 15A female socket (Rc: 1/2 inch)
Drain Discharge Water Connection Diameter (mm) 20A female socket (Rc: 3/4 inch)
Coolant R-134a 285g
Exhaust Air Volume (m3/min) 10.0/12.0
Safety Circuit/Main Circuit Earth leakage circuit breaker (30A 30mA)
Safety Circuit/Blower Overcurrent relay (manual reset) (1.7A), Delay timer (3 minutes), Surge Absorber
Safety Circuit/Compressor Overcurrent relay, motor protectors, surge absorbers, low temperature thermostat driving prevention
Safety Circuit/Heater Thermostat to prevent overheating (65°C OFF 55°C ON), thermal fuse (99°C), surge absorber
Safety Circuit/Humidifier Float switch, thermostat to prevent overheating (120°C +- 10 ℃ OFF), fuse temperature (119°C), automatic timer drainage, drainage manual switch, surge absorber
Output/Main Unit Malfunction Output No-voltage contact a (AC250V / 3A / Resistive load)
Output/Temperature Control Top-Bottom Limit Alarm No-voltage contact a (AC240V / 1A / Resistive load)
Output/Humidity Control Top-Bottom Limit Alarm No-voltage contact a (AC240V / 1A / Resistive load)
Humidification, cooling and heating capacity is the value in the body of the balloon when RH 25°C / 40% ambient temperature.
Precision temperature and humidity control is a chamber JTMK01 - are based on the method set forth in Section 2 (Japan Testing Machinery Association) how to display performance test methods and performance.
Guarantee the accuracy of the point and one outlet in reading body temperature controller equipped with air conditioners, duct thermal interference due accuracy is not covered under warranty.
In addition, this product is intended to suppress the fluctuation of air temperature and humidity, but do not guarantee the absolute value of the temperature and humidity.
(For bias correction function is equipped.)
Ambient temperature and humidity * Some may not be able to control temperature, humidity, even within the range set.
Is the value of the processing air volume in the outlet body.
Dimensions above are body dimensions.
Mounting flange, protrusions are not included.
Current consumption, power consumption may vary depending on surrounding environment temperature and humidity and conditions of use.
For air-cooled type, there is waste heat from the equipment. (With exhaust chamber as an option)
Ambient environment at low temperatures below ambient temperature of the protective device is used to work, we will automatically shut down the compressor only.
In that case, we can not guarantee the accuracy of the above, please use the ambient temperature in the range of use.
Pure water and ultra-high purity water to the water supply to the unit (conductivity: The following 1μS/cm, resistance ratio: more than 10MΩ · cm) Please do not use.
When operated automatic blow humidifier, you may deviate from the temperature and humidity control accuracy specification range.
The water supply side of the humidifier, please be sure to install a strainer. Drainage pipes, please use (at least heat-resistant 100°C) heat pipe always.
The actual mounting on the check, I hope specification contained in the instruction manual, the precautions.
If you need instruction manual in advance on the design, please contact your nearest sales office.

Parts list supplied

Strainer 1
Anchor Mount 1
INSULOK Tie 1
User Manual 1

Optional Parts List

Duct Set o
Return Chamber o
Exhaust Chamber o
Delivery, please contact us.

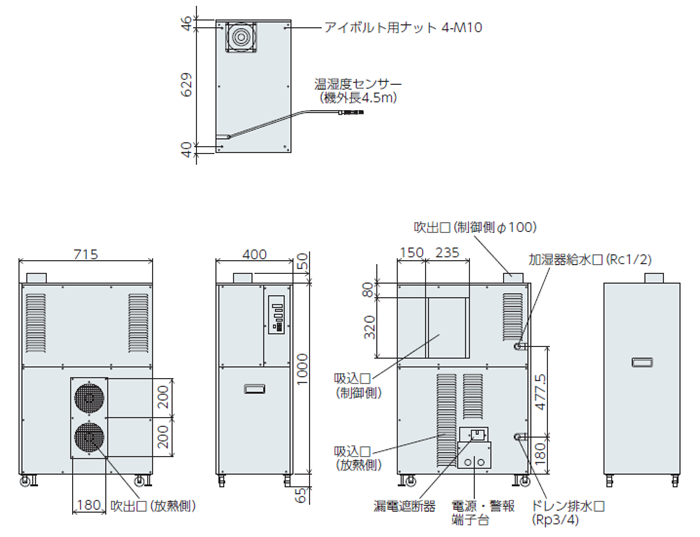

Dimensions

Sensor dimensions

Temperature & Humidity Control Range Chart

Measurement conditions
AC200V 50Hz three-phase power supply: (1)
25°C / 40% RH: ambient temperature and humidity (2)
The amount of wind blowing: 3.4/4.0m 3 / min (3)
The sensor is mounted at one end bent duct 4m90 (4)

Note
Please use it properly Read the manual before using.
Delivery of the items will be passed on the car. (Domestic location specified, except islands *)
Will be (additional cost) Charter flights handled separately by the number-type.
Overseas at the time of delivery, we recommend packing for overseas separately.
If interested, please contact us to adjust attendance.
Please check through the book between items and power (circuit breakers) to the appropriate breaker specification.
Cause of failure and be used at the rated power supply out of range.
Please to the service and maintenance on a regular basis.
Failure to maintain regular maintenance, you may be a factor in product performance degradation trouble.
When disposing of this product, you should comply with various laws and regulations, please go to the appropriate.
