high-performance filter-type mist collector
GME-F2200-60
| Maximum air volume (m3 /min) | 43 |
|---|---|
| Collection efficiency (%) * | 99.9 |
| External Dimensions(mm) | H2165×W712×D610 |
| Weight(kg) | Approximately 190 |
*Number ratio measured by particle counter (2µm)
Inquiry
Download
GME-F2200-60 Product details
Specifications
| Maximum air volume (m3 /min) | 43 |
|---|---|
| Maximum static pressure (kPa) | 1.7 |
| Collection efficiency (%) *1 | 99.9 |
| Operating temperature and humidity | 0 to 50°C, 88% RH or less (indoor specification, no condensation) |
| Suction gas temperature (℃) | 0 to 50 |
| Collection target *2 | Water-insoluble oil mist (ignition point: 150℃ or higher) water-soluble oil mist |
| Max. inlet density( (mg/ m3) | 50 |
| External dimensions (mm) *3 | H2165×W712×D610 |
| Suction port (mm) | Horizontal suction φ198 |
| Weight(kg) | Approximately 190 |
| Coating Color | Munsell 0.9PB 6.4 / 0.7 |
| frequency (Hz) *4 | 60 |
| rated voltage (V) *5 | Three phase AC200/220 |
| Motor rating current (A) *6 | 8.1 / 7.4 |
| Installed motor output | 2.2kW 2P (totally enclosed external fan type) |
| Installed motor IE code | IE3 |
| drain | Rc1 1/2 inch socket |
| Noise (dB(A)) | 71 ± 2 |
*1 Count ratio measured by particle counter (2 μm)
*2 Capturing oil mist that easily solidifies (gels) or oil mist that contains a large amount of cutting powder (generated by cutting and grinding cast metal, etc.) may shorten the maintenance cycle.
*3 Excluding protrusions.
*4 For 50/60Hz only.
*5 power supply should be supplied from a circuit equipped with a protection device on the machine tool or power supply supply equipment.
*6 Please use the motor at a current value below its rating value.

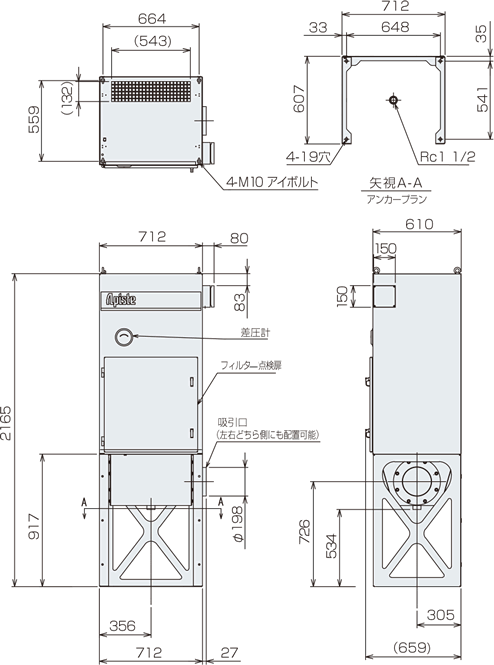

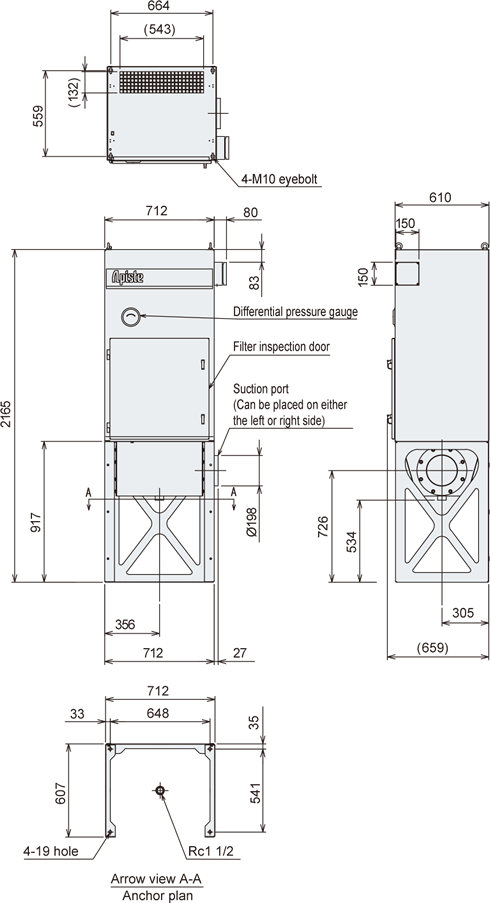

Dimensions

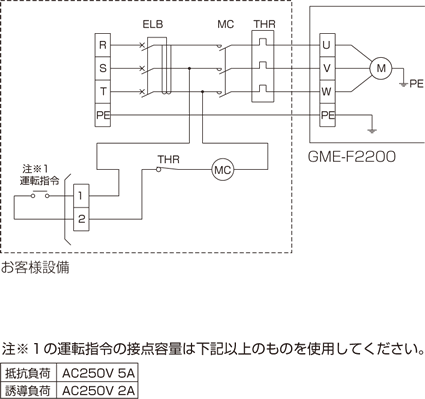

Equipment synchronization specification

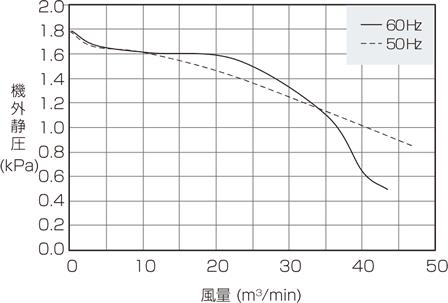

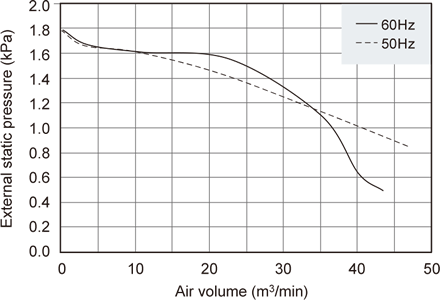

Capacity characteristics graph
