Options for Mist Collector
Optional features
GME-S-Pro/eco Series
Full after filter mounting frame (for GME-S2200-Pro/eco)
External Dimensions

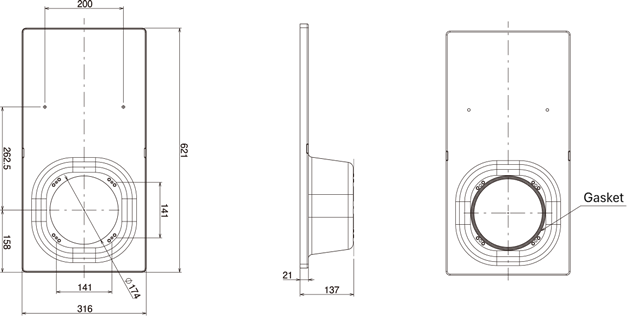

Half after filter mounting frame (for GME-S400-Pro/eco, GME-S750-Pro/eco, GME-S1500-Pro/eco)
External Dimensions

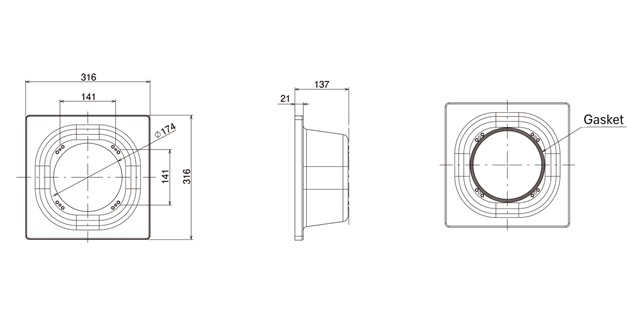

Quarter after filter mounting frame (for GME-S400-Pro/eco, GME-S750-Pro/eco, GME-S1500-Pro/eco)
External Dimensions
* Image of after filter mounting frame installed (Please prepare air conditioning air filters separately)
Exhaust duct connection flange

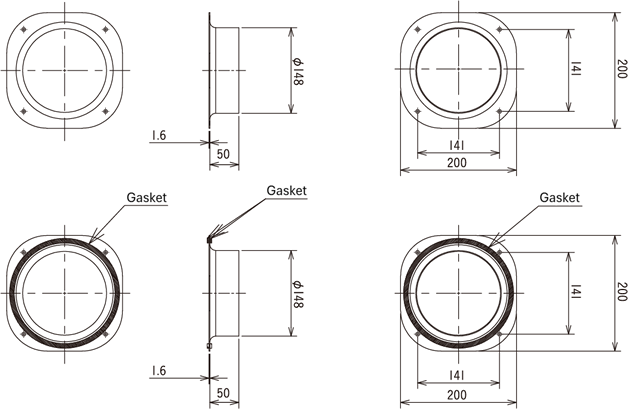

For GME-S400-Pro/eco, GME-S750-Pro/eco, GME-S1500-Pro/eco
External Dimensions

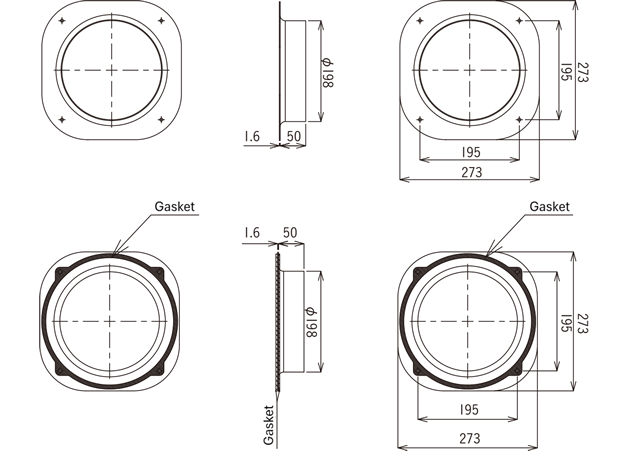

For GME-S2200-Pro/eco
External Dimensions
Cup-shaped after-lock
For GME-S400-Pro
For GME-S750-Pro
For GME-S1500-Pro
For GME-S2200-Pro
For GME-S400-eco
For GME-S750-eco
For GME-S1500-eco
For GME-S2200-eco
GME-S Series
High performance filter GME-SCF
Our newly developed smoke-catch filter even captures oil mist ultra-micro-particles left behind by the slit-disc filters efficiency.With the smoke-catch filter, you no longer have to worry about the gap between particle size and filter effectiveness.
| Collecting efficiency (%) *1 | 98.2 (0.4μm) 99.8 (0.7μm) 99.9 (2.0μm) |
|---|---|
| Target to be collected *2 | Water-soluble oil mist / Water-immiscible oil mist |
| Max. inlet density (mg/m3) | 50 |
| External dimensions (mm) ※3 | φ302×H264 |
| Weight (kg) | 2.9 |
| Filter material | Fiberglass + polyester |
*1 Particle ratio by particle counter.
*2 Do not allow the mist collector to absorb fast congealing gel oil mist or oil mist that includes a signifi cant amount of cast metal chips generated by cutting or grinding. Such use can result in the mist collector requiring more frequent maintenance.
*3 Includes packing.
